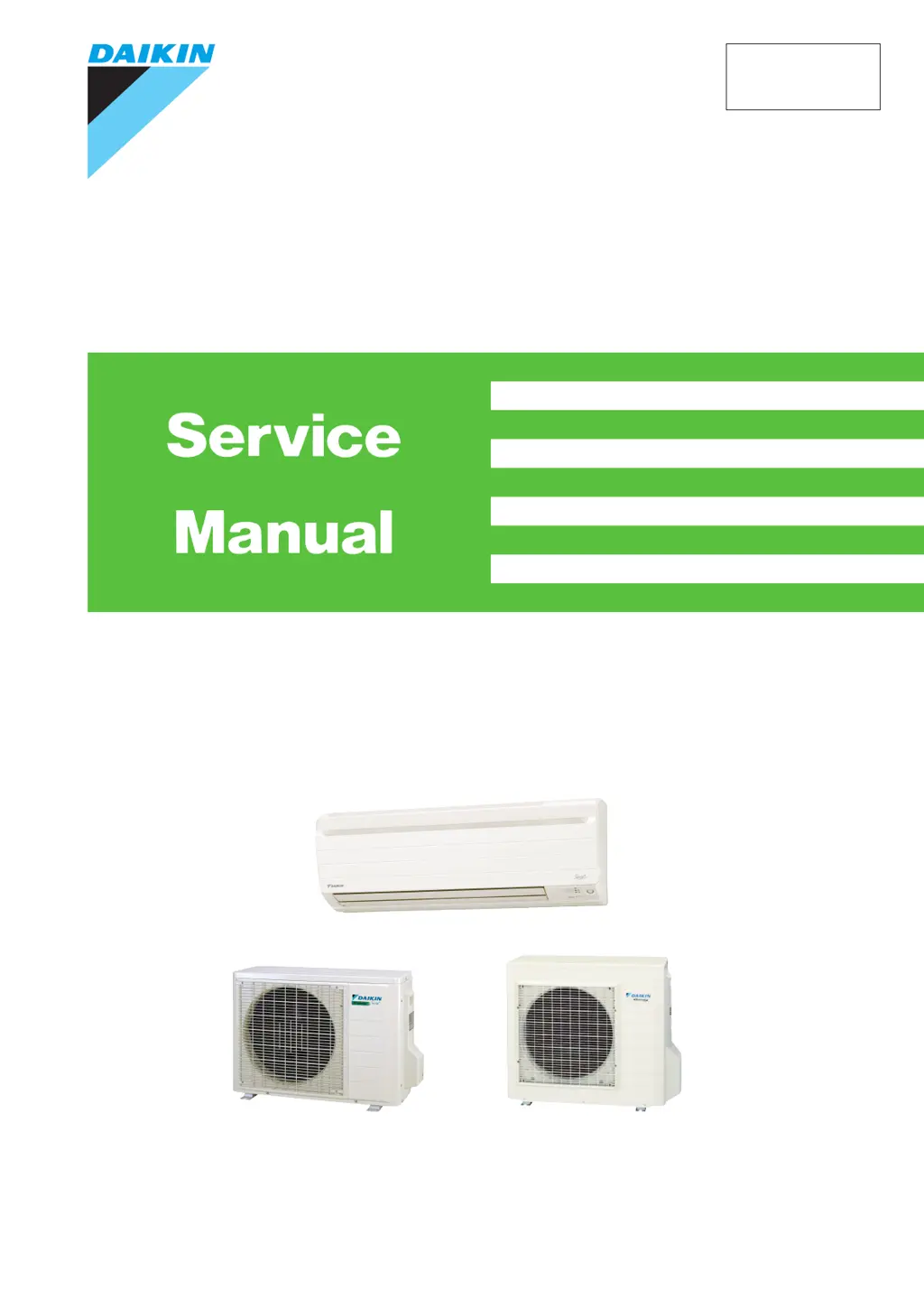

SiBE04 - 824
[Applied Models]
z Inverter Pair : Heat Pump
Inverter Pair
Wall Mounted Type E-Series

Table of Contents

Other manuals for Daikin ARXS50E3V1B

Questions and Answers

  • K
    Kelly SanchezAug 20, 2025
    Why is my Daikin ARXS50E3V1B cooling/heating effect poor?
    • R
      rachael25Aug 20, 2025
      If your Daikin Air Conditioner isn't cooling or heating well, several factors could be the cause. First, check if the air filters are clean. Also, ensure that nothing is blocking the air inlet or outlet of either the indoor or outdoor units. Verify that the temperature setting is appropriate for your needs and that all windows and doors are properly closed. Finally, make sure the airflow rate and air direction are correctly set, and check whether the unit is set to INTELLIGENT EYE mode.
  • K
    Katherine MartinezAug 22, 2025
    How to fix Daikin ARXS50E3V1B that does not turn on?
    • R
      Rebekah CortezAug 22, 2025
      If your Daikin Air Conditioner isn't turning on and the OPERATION lamp is off, consider these potential causes: Check if a breaker has been turned OFF or if a fuse has blown. Verify that there isn’t a power failure in your area. Ensure that batteries are correctly installed in the remote controller. Finally, confirm that the timer setting is correct and not preventing the unit from starting.
  • W
    William MillerAug 25, 2025
    Why does Daikin Air Conditioner operation does not start soon?
    • B
      Billy AdamsAug 25, 2025
      If the Daikin Air Conditioner operation does not start soon, you should wait for about 3 minutes.
  • B
    Brandi GoodmanAug 26, 2025
    What to do if Daikin Air Conditioner indoor unit leaks water?
    • H
      hubbardashleyAug 27, 2025
      If water leaks from the indoor unit of your Daikin Air Conditioner, turn the breaker OFF and call the service shop.
  • T
    Troy BrownAug 28, 2025
    What to do if Daikin Air Conditioner stops suddenly and OPERATION lamp flashes?
    • M
      Melissa PatelAug 28, 2025
      If your Daikin Air Conditioner suddenly stops and the OPERATION lamp is flashing, it could be due to a few reasons. First, check if the air filters are clean. Also, make sure that there are no obstructions blocking the air inlet or outlet of the indoor and outdoor units. To resolve this, clean the air filters or remove any obstacles, then turn the breaker OFF and turn it back ON. After doing so, try operating the air conditioner using the remote controller.
  • B
    Bill TaylorAug 30, 2025
    Why is my Daikin ARXS50E3V1B Air Conditioner remote not working?
    • J
      Justin GouldAug 30, 2025
      If your Daikin Air Conditioner remote controller isn't displaying any signals, it's likely due to dying batteries or a malfunctioning remote. Replace all the batteries with new AAA alkaline batteries. If a reset button is available, press it after replacing the batteries.
  • R
    Richard WarnerSep 1, 2025
    Why doesn't hot air flow out soon after starting Daikin ARXS50E3V1B heating operation?
    • B
      Brian SimonSep 1, 2025
      If hot air doesn't flow out soon after starting the heating operation on your Daikin Air Conditioner, you should wait for 1 to 4 minutes.
  • T
    Thomas MartinezSep 3, 2025
    What to do if Daikin ARXS50E3V1B Air Conditioner safety breaker cuts off the operation frequently?
    • A
      Anna JoyceSep 3, 2025
      If the safety breaker, a fuse, or the earth leakage breaker frequently cuts off the operation of your Daikin Air Conditioner, turn the breaker OFF and call the service shop.
  • D
    David KrauseSep 5, 2025
    What to do if my Daikin Air Conditioner has a burning smell?
    • T
      Timothy McbrideSep 5, 2025
      If you notice a burning smell coming from your Daikin Air Conditioner, turn the breaker OFF and call the service shop.
  • J
    John MackSep 7, 2025
    What to do if Daikin ARXS50E3V1B Air Conditioner stops suddenly and OPERATION lamp is on?
    • S
      Scott WheelerSep 7, 2025
      If your Daikin Air Conditioner stops suddenly and the OPERATION lamp is on, it might be due to a large voltage fluctuation causing the system to protect itself. The unit should automatically resume operation in about 3 minutes.

Summary

Part 2 Specifications

Part 3 Printed Circuit Board Connector Wiring Diagram

Part 4 Function and Control

1. Main Functions

Explains key operational principles like frequency control, airflow direction, and special modes.

3. Control Specification

Outlines control specifications, including mode hierarchy, frequency control, and operational logic.

Part 5 Operation Manual

2.1 Safety precautions

Essential safety warnings and cautions for handling the equipment and performing repairs.

2.12 Troubleshooting

Guides users through common issues and their potential solutions.

Part 6 Service Diagnosis

1. Caution for Diagnosis

Provides warnings and guidance before starting the diagnostic process, focusing on indicator lamps.

2. Problem Symptoms and Measures

Lists common symptoms of malfunction and corresponding checks and measures for diagnosis.

3. Service Check Function

Explains how to use the service check function via the remote controller to retrieve error codes.

4. Troubleshooting

Lists error codes and guides troubleshooting for various system malfunctions, including PCB and sensor issues.

Part 7 Removal Procedure

1. Indoor Unit

Details the removal procedures for components of the indoor unit.

2. Outdoor Unit

Details the removal procedures for components of the outdoor unit.

2.1 ARXS 25;35 F

Details removal procedures for ARXS 25/35 F outdoor unit components.

2.1.6 Removal of Compressor

Step-by-step guide for removing the compressor from the outdoor unit.

2.2 ARXS 50 E

Details removal procedures for ARXS 50 E outdoor unit components.

2.2.7 Removal of the Compressor

Step-by-step guide for removing the compressor from the ARXS 50 E outdoor unit.
