2 About the product
Installer reference guide
3
BRP069A61+BRP069A62
Daikin Altherma LAN adapter
4P464229-1B – 2018.10

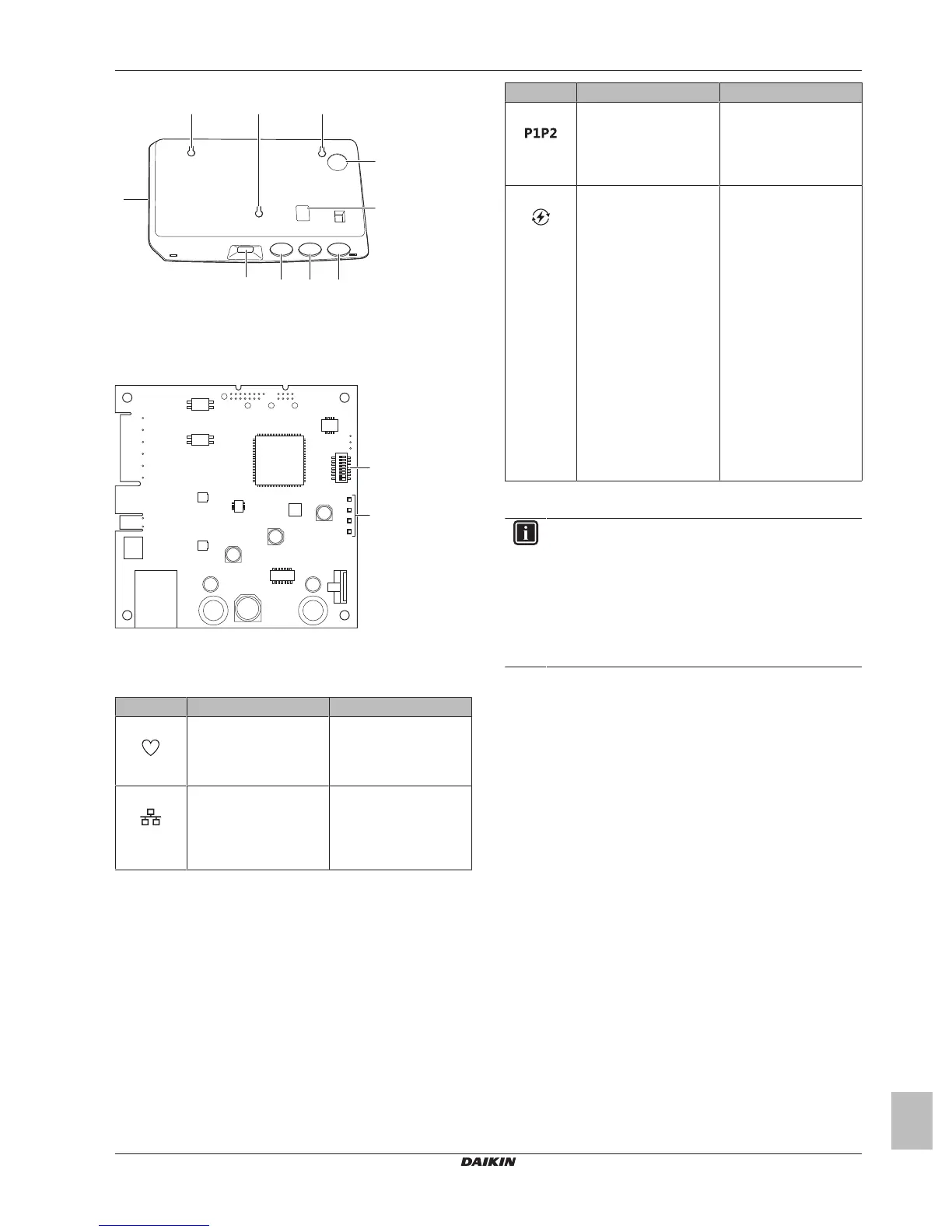

Components: casing
a a
bd b b
a
c
c
e
a Wall mounting holes
b Knockout holes (wiring from the bottom)
c Knockout holes (wiring from the rear)
d Ethernet connection
e Status LEDs
Components: PCB
X1A
X2A
X3A
X4A
b
a
LD1
LD2
LD3
LD4
X1A~X4A Connectors
a DIP switch
b Status LEDs
Status LEDs
LED Description Behaviour
LD1
Indication of power to the
adapter, and of normal
operation.
▪ LED flashing: normal
operation.
▪ LED NOT flashing: no
operation.
LD2
Indication of TCP/IP
communication with the
router.
▪ LED ON: normal
communication.
▪ LED flashing:
communication
problem.
LED Description Behaviour
LD3
Indication of
communication with the
indoor unit.
▪ LED ON: normal
communication.
▪ LED flashing:
communication
problem.
LD4
(a)
Indication of Smart Grid
activity.
▪ LED ON: system
running in the
"Recommended ON",
"Forced ON", or
"Forced OFF" Smart
Grid operation mode.
▪ LED OFF: system
running in the "Normal
operation" Smart Grid
operation mode, or
operating in normal
operation conditions
(space heating/cooling,
production of domestic
hot water).
▪ LED flashing: LAN
adapter performing a
Smart Grid compatibility
check.
(a) This LED is ONLY active for BRP069A61 (present for
BRP069A62, but ALWAYS inactive).
INFORMATION
▪ The DIP switch is used to configure the system. For
more information, see "7Configuration"on page14.
▪ When the LAN adapter performs a Smart Grid
compatibility check, LD4 flashes. This is NOT
erroneous behaviour. After a successful check, LD4 will
either stay ON or go OFF. When it keeps flashing for
more than 30 minutes, the compatibility check failed,
and NO Smart Grid operation is possible.
2.1 Compatibility
Make sure your Daikin Altherma system is compatible for use with
the LAN adapter (app control and/or Smart Grid applications). For
more information, see the installer reference guide of the Daikin
Altherma system.
2.2 System layout
Integrating the LAN adapter into a Daikin Altherma system allows for
the following applications:
▪ App control (only)
▪ Smart Grid application (only)
▪ App control + Smart Grid application
