SERVICING
46
Liquid Line
Suction Line
Wrapped in Armaflex
®
Metal
Sleeve
Hanger
Wal l
Stud
Liquid Line
Strapped to
Suction Line

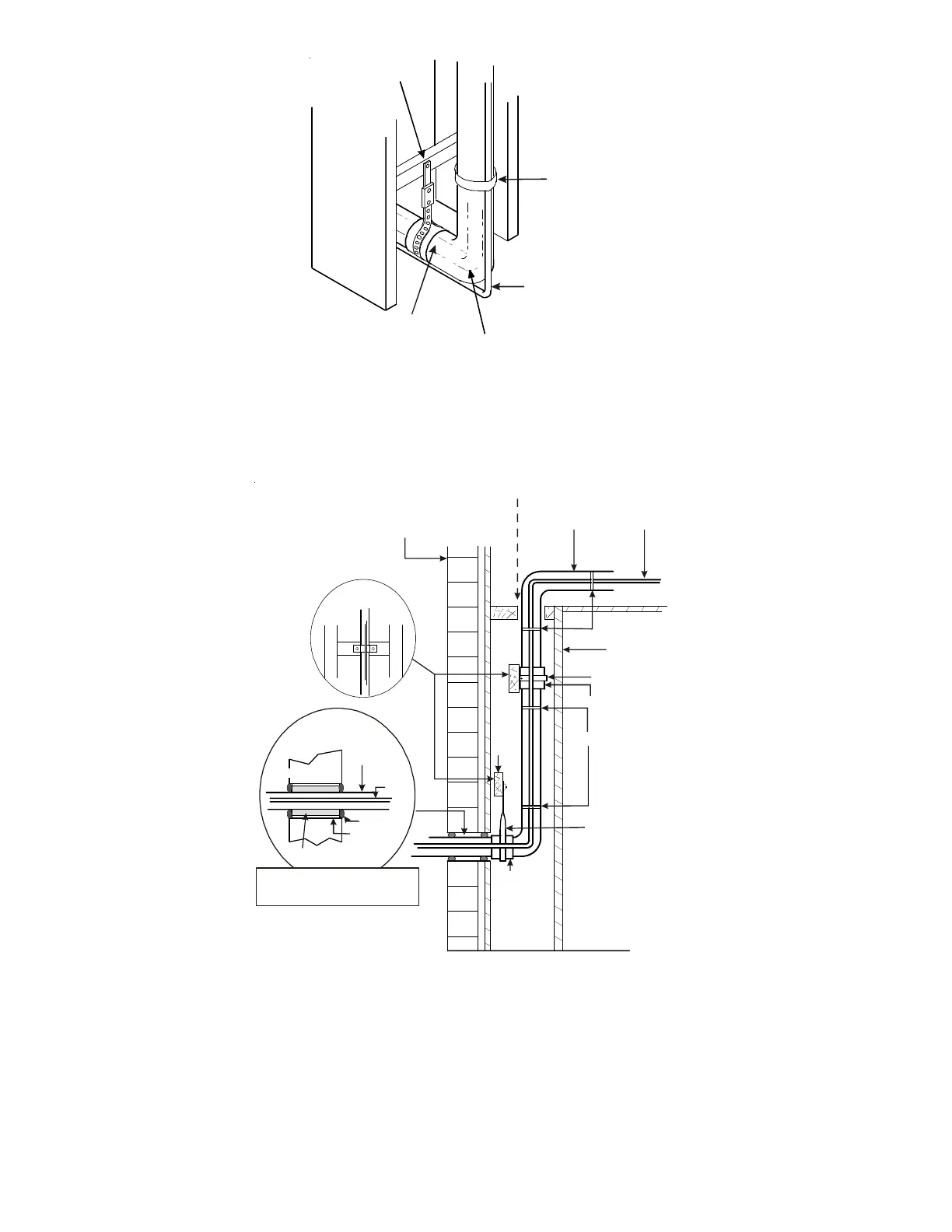

Figure 1-1.
Installation of Refrigeration Piping From Vertical to Horizontal
Outside Wall
Inside Wall
Liquid Line
Suction Line
IMPORTANT
- Refrigerant lines must not touch wall.
Strap
Sleeve
Strap
Sleeve
Wire Tie
Wire Tie
PVC Pipe
Caulk
Outside Wall
rmaflex
Wrapped
Suction Line
®
Liquid
Line
Wood Block
Between Studs
I
MPORTANT:
Refrigerant lines must NOT
come into contact with structure.
Fiberglass Insulation
Wood
Block
Figure 1-2. Installation of Refrigerant Piping (Vertical)
New construction shown
NOTE: If line set is installed on the exterior of an outside wall, similar installation practices are to be used.
