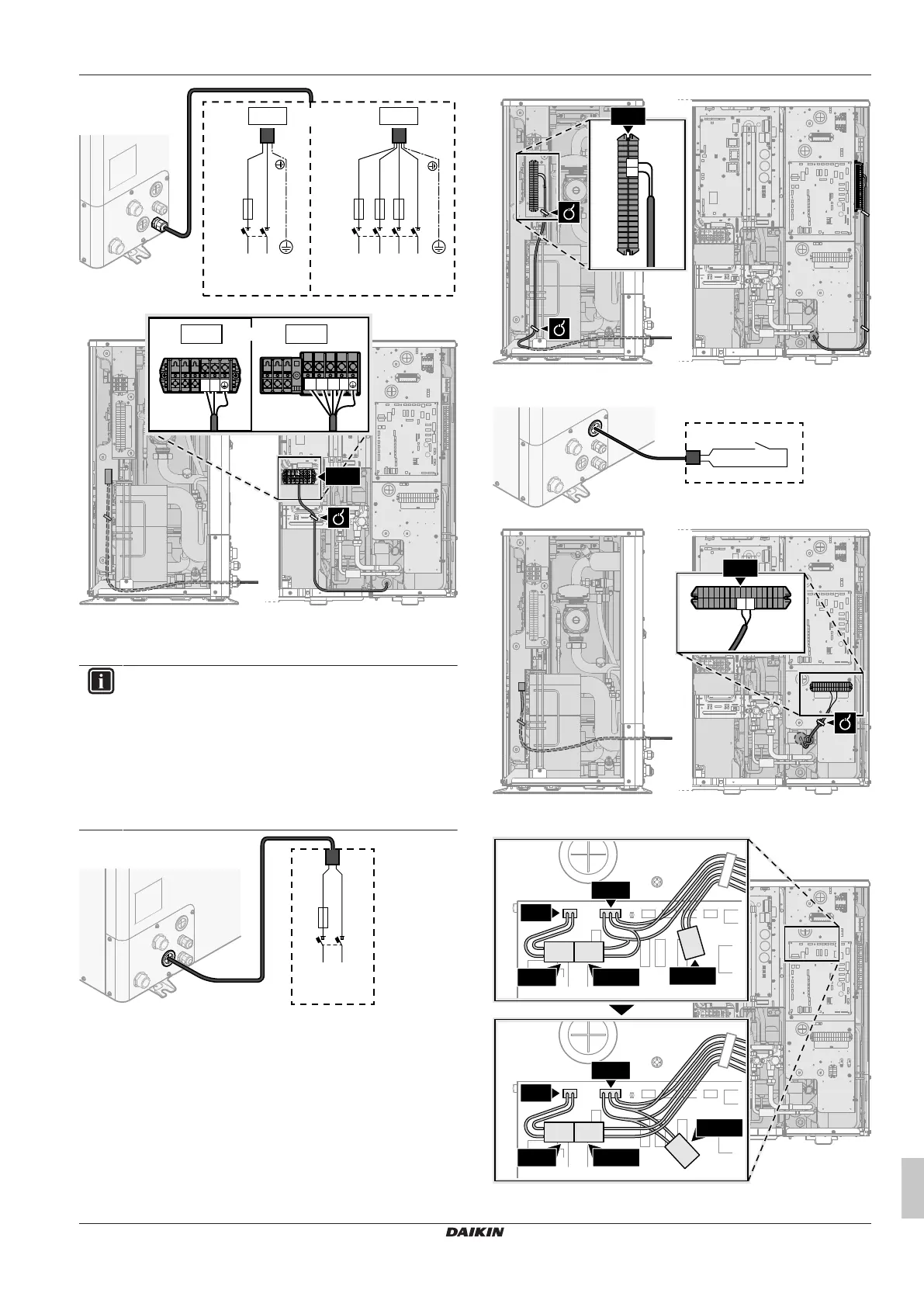

6 Electrical installation
Installation manual
17
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
4P620239-1 – 2020.06
NL N PE
Q1DI
X1M.L
X1M.L1 X1M.L2 X1M.L3 X1M.N
X1M.N X1M.
X1M.
L3L2L1 N PE
Q1DI
1N~ 3N~
OR
1N~, 50 Hz,
220-240 V AC
3N~, 50 Hz,
380-415 V AC
X1M
OR
1N~ 3N~
L1 L2 L3 N
L N
3 If necessary, connect the separate normal kWh rate power
supply.
INFORMATION
Some types of preferential kWh rate power supply require
a separate normal kWh rate power supply to the outdoor
unit. This is required in the following cases:
▪ if the preferential kWh rate power supply is interrupted
when active, OR
▪ if no power consumption of the hydro module of the
outdoor unit is allowed at the preferential kWh rate
power supply when active.
NL
X2M.6 X2M.5
1N~, 50 Hz,
230 V AC, 6.3 A
6 5
X2M
4 Connect the preferential power supply contact.
X5M.10
X5M.9
S1S
9 10
X5M
5 Disconnect X11Y from X11YA, and connect X11Y to X11YB.
X19A
X1A
X11YB
X11YAX11Y
X19A
X1A
X11YBX11Y
X11YA
6 Fix the cables with cable ties to the cable tie mountings.
