3 | Components
Service manual
143
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

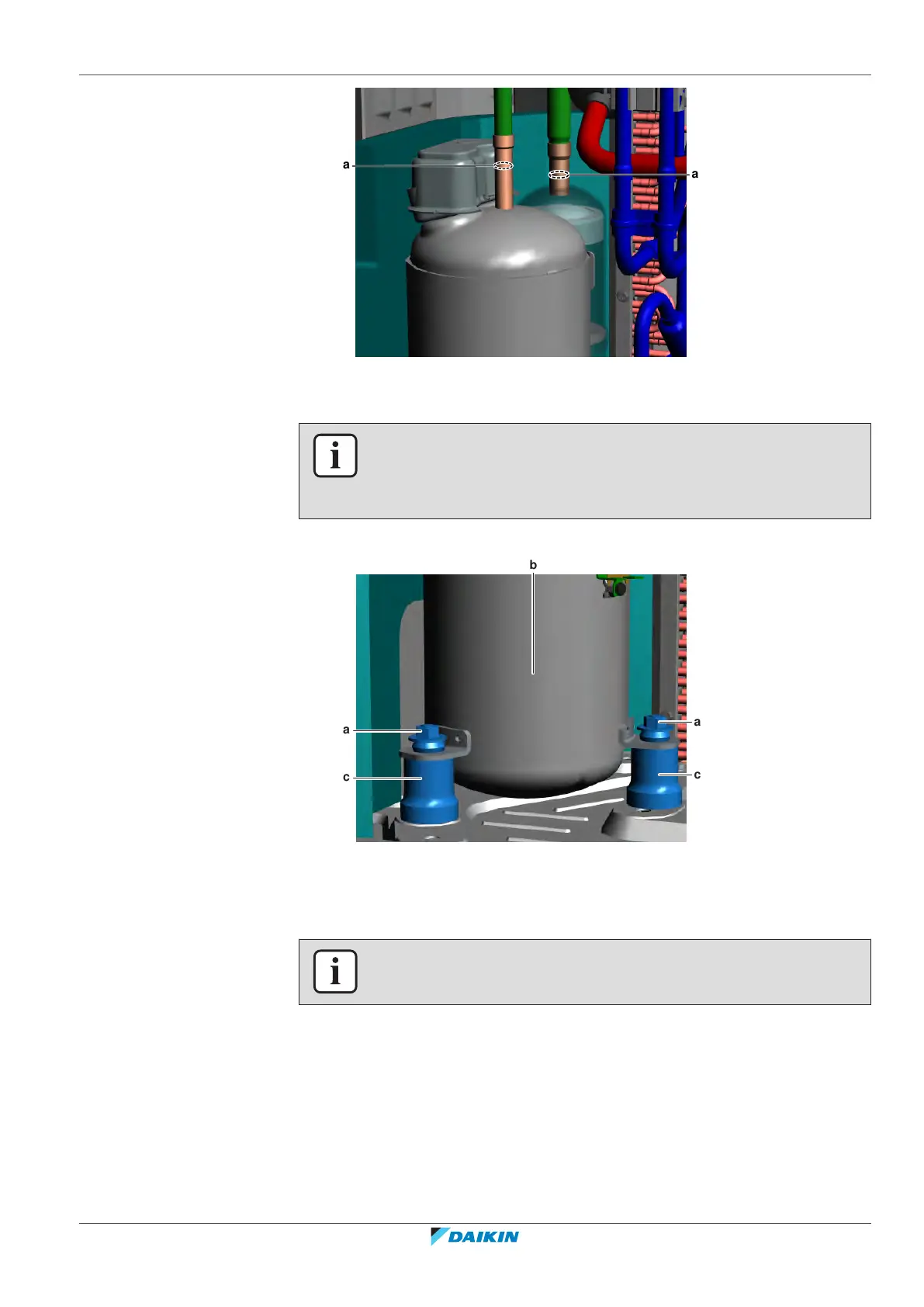

a
a
a Compressor pipe
7 Stop the nitrogen supply when the piping has cooled down.
INFORMATION
It is ALSO possible to cut the component pipe(s) using a pipe cutter. Make sure to
remove the remaining component pipe end(s) from the refrigerant pipes by heating
the brazing point(s) of the component pipe(s) using an oxygen acetylene torch.
8 Remove the nuts and bolts and remove the compressor from the unit.
b
a
c
a
c
a Nut
b Compressor
c Damper
9 Remove the 3 dampers from the compressor.
INFORMATION
The compressor dampers may look different.
10 Remove the bushings and keep them for re-use.
11 Install plugs or caps on the open pipe ends of the refrigerant piping to avoid
dirt or impurities from entering the piping.
12 To install the compressor, see "3.7.2Repair procedures"[4140].
To install the compressor
1 Check the state of the dampers. Replace if worn.
2 Install the 3 dampers in the correct location on the unit.
