a b

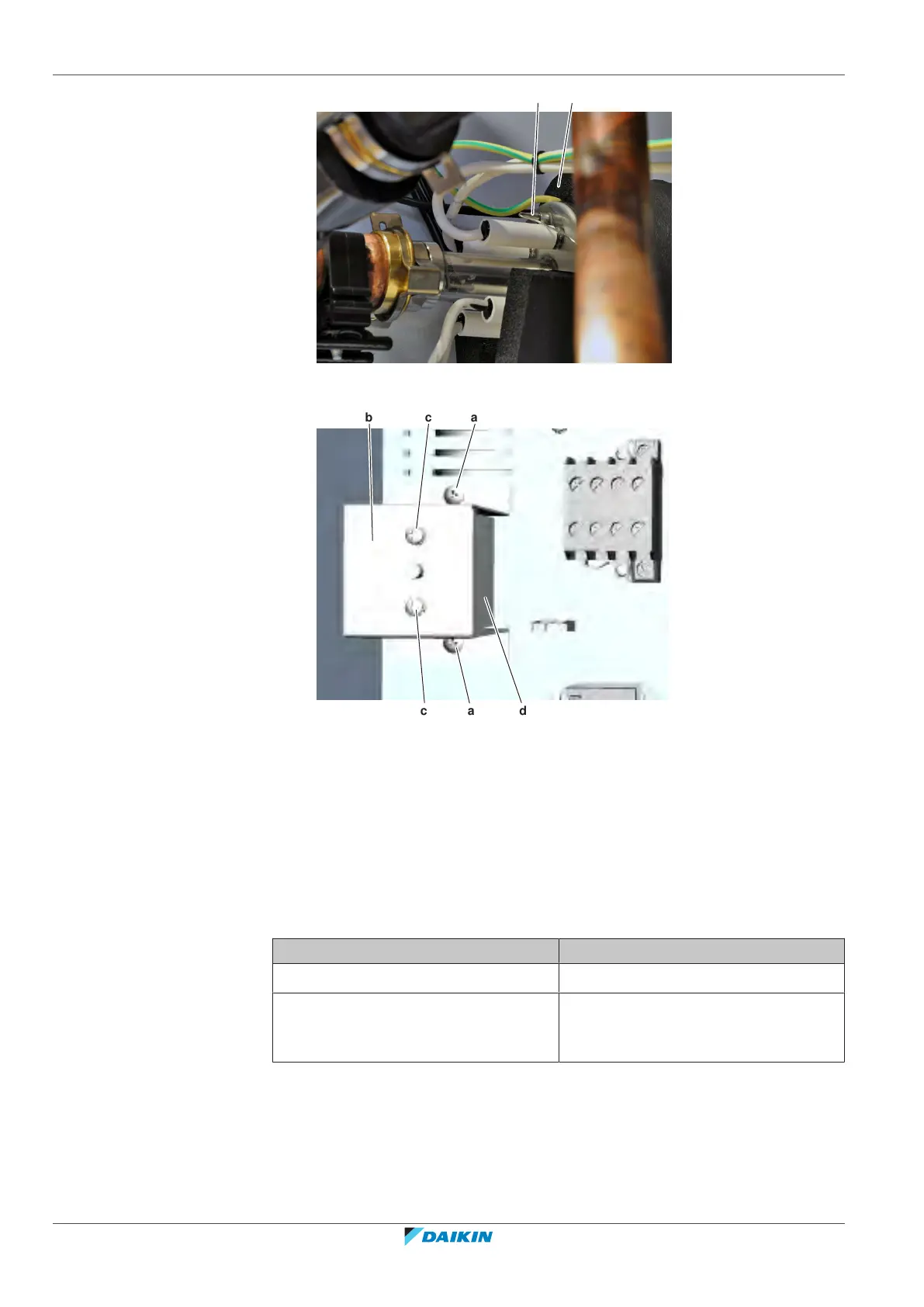

a Backup heater thermal protector sensor
b Backup heater
b c a
ac d
a Screw
b Backup heater thermal protector bracket
c Screw
d Backup heater thermal protector
3 Connect the wires to the wire terminals at the back of the backup heater
thermal protector.
4 Install the backup heater thermal protector on the bracket. Install and tighten
the 2 screws.
5 Install the backup heater thermal protector bracket on the switch box. Install
and tighten the 2 screws.
Is the problem solved? Action
Yes No further actions required.
No Return to the troubleshooting of the
specific error and continue with the
next procedure.
