Daikin EHBH08EF6V - To Connect the WLAN Cartridge (Delivered as Accessory)

9 | Electrical installation
Installer reference guide
136
ERGA04~08EA + EHBH/X04+08EF
Daikin Altherma 3 R W
4P629085-1B – 2021.11
B
C
A
A
L
N
L
N
X10M.1
X10M.2
X10M.3
X10M.4
2
1
1

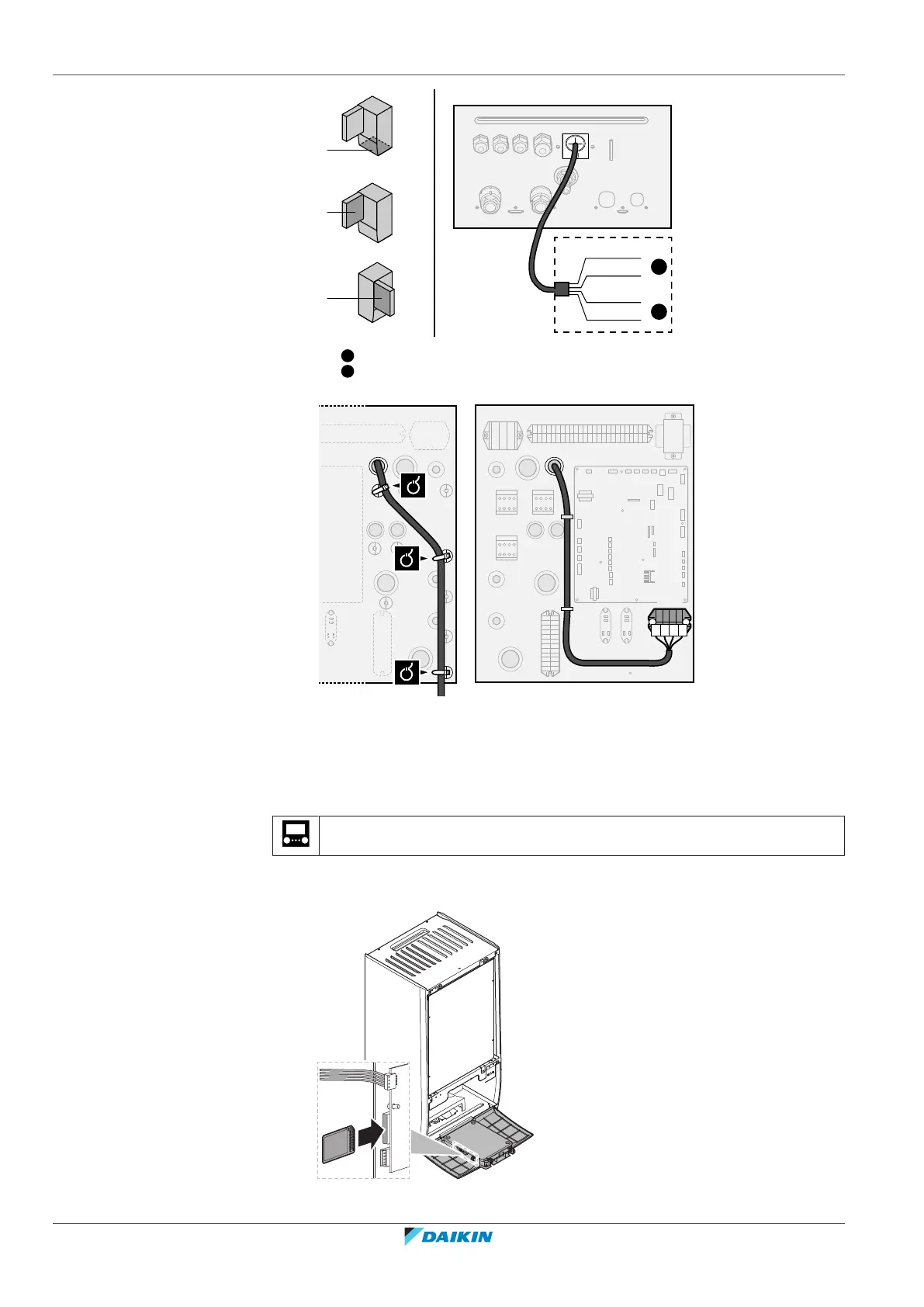

High voltage Smart Grid contact 1
2
High voltage Smart Grid contact 2
CB
X10M
1 2 3 4
4 Fix the cables with cable ties to the cable tie mountings. If necessary, bundle
excessive cable length with a cable tie.
9.3.12 To connect the WLAN cartridge (delivered as accessory)
[D] Wireless gateway
1 Insert the WLAN cartridge into the cartridge slot on the user interface of the
indoor unit.
3
