Outdoor Unit
Indoor Unit
1. Air outlet
2. Air outlet grille: (Field supply)
• Appearance of the Air outlet grille and Air inlet
grille may differ with some models.
3. Suction grille: (Option)
• Appearance of the suction grille and Air inlet
grille may differ with some models.
4. Air inlet
•
The operation mode refers to the following table.

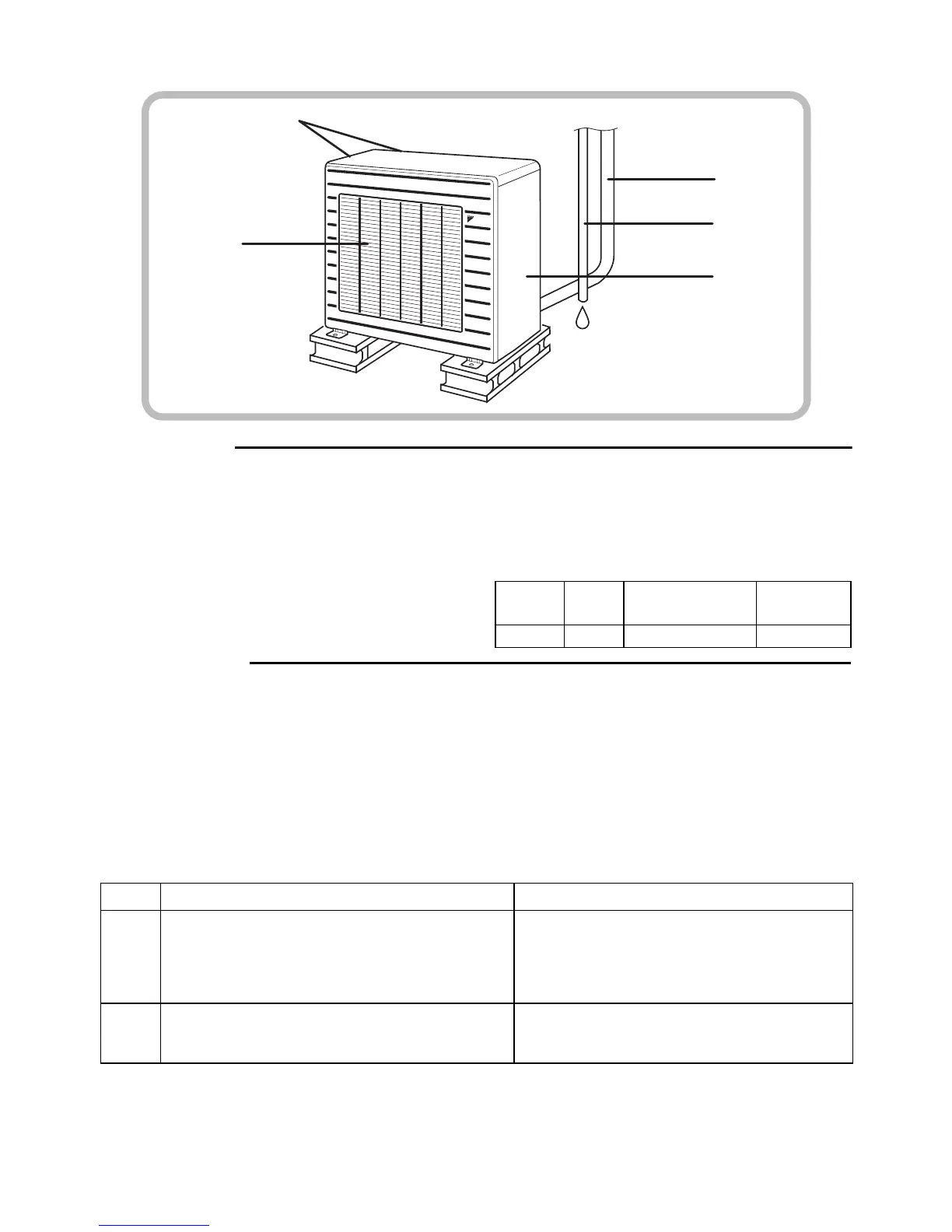

Outdoor Unit
5. Air inlet: (Back and side)
6. Refrigerant piping and inter-unit cable
7. Drain hose
8. Earth terminal:
• It is inside of this cover.
9. Air outlet
Appearance of the outdoor unit may differ from some models.
Please note
• If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn
the breaker OFF.
• Use the air conditioner in the following conditions.
• Operation outside this humidity or temperature range may cause a safety device to disable the system.
6
7
8
9
5
Mode
Temperature
setting
Air flow
rate
FDXS AUTO
25°C
AUTO
MODE Operating conditions If operation is continues out of this range
COOL
Outdoor temperature: <2MXS> 10-46°C
<3/4/5MXS> –10-46°C
<RXS> –10-46°C
Indoor temperature: 18-32°C
Indoor humidity: 80% max.
• A safety device may work to stop the
operation. (In multi system, it may work to stop
the operation of the outdoor unit only.)
• Condensation may occur on the indoor unit
and drip.
HEAT
Outdoor temperature: <2/3/4/5MXS> –15-24°C
<RXS> –15-24°C
Indoor temperature: 10-30°C
• A safety device may work to stop the
operation.
