Daikin FFA60A2VEB9 - Configuration; Field Settings

7 Configuration
Installer and user reference guide
18
FFA25~60A2VEB(9)
Split system air conditioners
4P550955-4 – 2018.08
1~ 50 Hz
220-240 V
b
a
e1
c
d

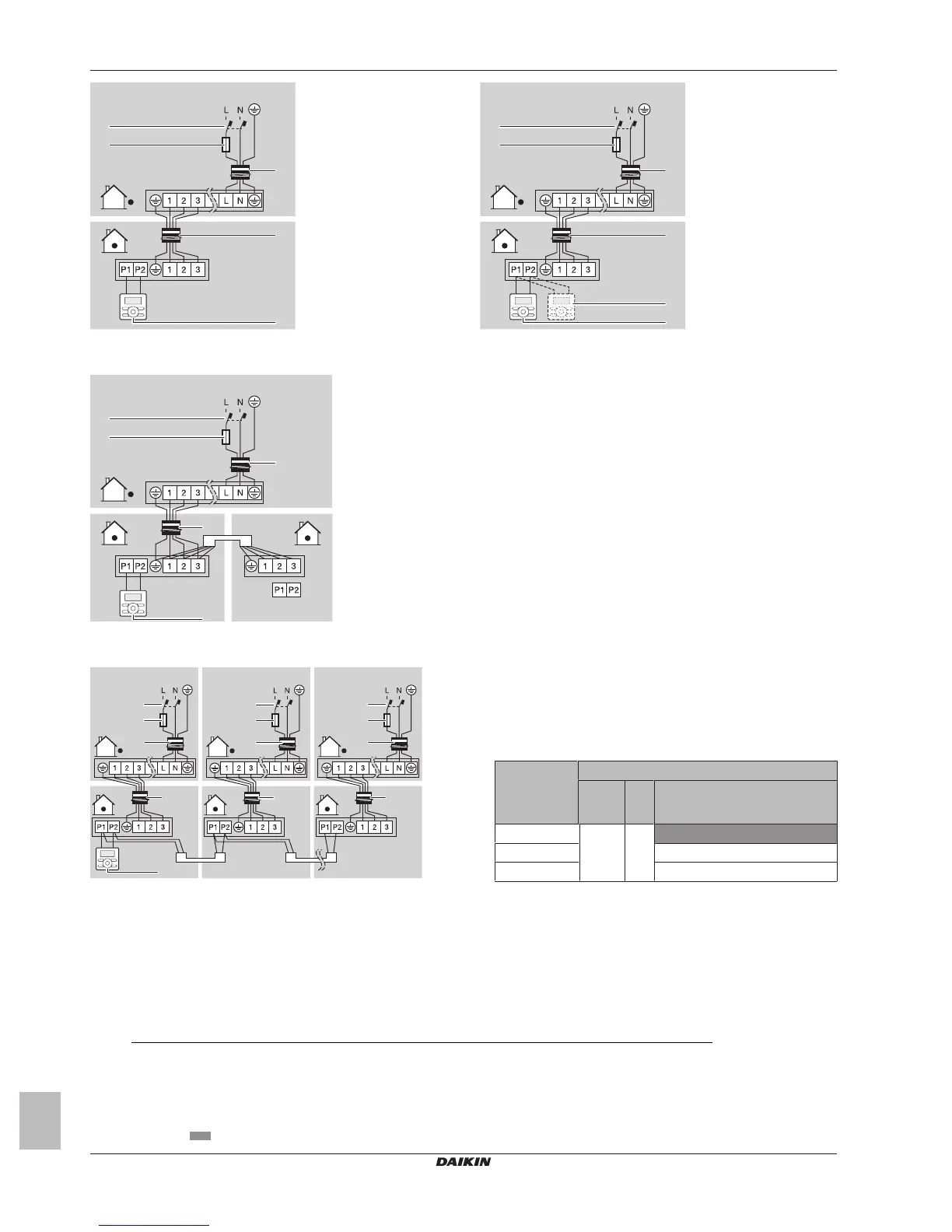

▪ Simultaneous operation system. 1 user interface controls 2
indoor units (indoor units operate simultaneously)
1~ 50 Hz
220-240 V
b
a
e1
c
d
▪ Group control. 1 user interface controls up to 16 indoor units (all
indoor units operate according to the user interface).
1~ 50 Hz
220-240 V
b
a
e1
1~ 50 Hz
220-240 V
b
a
1~ 50 Hz
220-240 V
b
a
c
d
c
d
c
d
▪ 2 user interface control. (2 remote controllers control 1 indoor
unit)
1~ 50 Hz
220-240 V
b
a
e2
e1
c
d
a Interconnection cable
b Power supply cable
c Earth leakage circuit breaker
d Fuse
e1 Main user interface
e2 Optional user interface
7 Configuration
7.1 Field settings
Make the following field settings so that they correspond with the
actual installation setup and with the needs of the user:
▪ Ceiling height
▪ Air flow direction
▪ Air volume when thermostat control is OFF
▪ Time to clean air filter
Setting: Ceiling height
This setting must correspond with the actual distance to the floor,
capacity class and air flow directions.
▪ For 3-way and 4-way air flows (which require an optional blocking
pad kit), see the installation manual of the optional blocking pad
kit.
▪ For all-round air flow, use the table below.
If the
distance to
the floor is
(m)
Then
1
M C1 C2
≤2.7 13 (23) 0 01
2.7<x≤3.0 02
3.0<x≤3.5 03
Setting: Air flow direction
This setting must correspond with the actual used air flow directions.
See the installation manual of the optional blocking pad kit and the
manual of the user interface.
Default: 01 (= all-round air flow)
Example:
(1)
Field settings are defined as follows:
▪ M: Mode number – First number: for group of units – Number between brackets: for individual unit
▪ C1: First code number
▪ C2: Second code number
▪ : Default
