Optional Accessories ED041204
240 Split Type Air Conditioners FTK(X)S-L Series
4

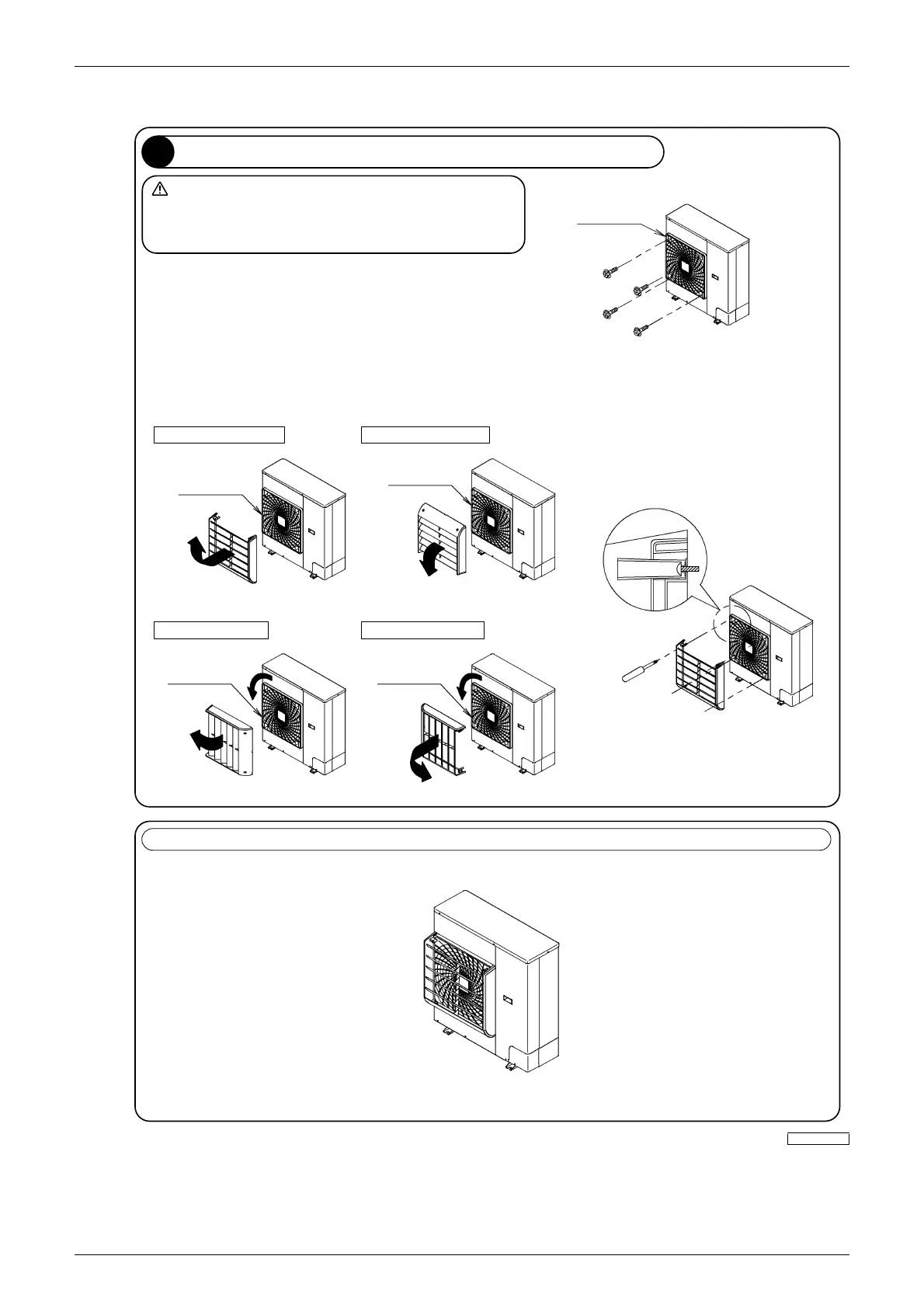

Installation of Air Direction Adjustment Grille
Mount the air direction adjustment grille overlapping the
standard grille and secure them with screws.
The mounting screws are attached to the air direction
adjustment grille.
To let the air blow in the right and left, turn the air direction
adjustment grille 90° counterclockwise and attach the air
direction adjustment grille to the standard grille.
CAUTION
Standard grille
Standard grille
Standard grille
Standard grille
Standard grille
In the upper direction In the lower direction
In the left direction In the right direction
Mount the air direction adjustment grille overlapping the standard grille.
It is dangerous to mount only the air direction adjustment grille because
the fan rotating parts can come in contact with people’s hands.
(1) Remove 4 mounting screws on the standard grille.
(2)
Refer to the following illustrations and mount the standard grille and
air direction adjustment grille according to the air blow-off direction.
Illustration showing the completion of the air direction adjustment grille mounted (with the air blowing in the upper direction)
3P243204-1
To Next Page
