1.2.3 Indoor PCB: FTXB50/60A, FTXB50/60B, FTXB50/60C, FTXN50/60L, FTXN50/60M,
FTXN50/60N, FTXK50/60A, FTXC50/60A, ATXB50/60C, ATXN50/60L,
ATXN50/60M, ATXN50/60N

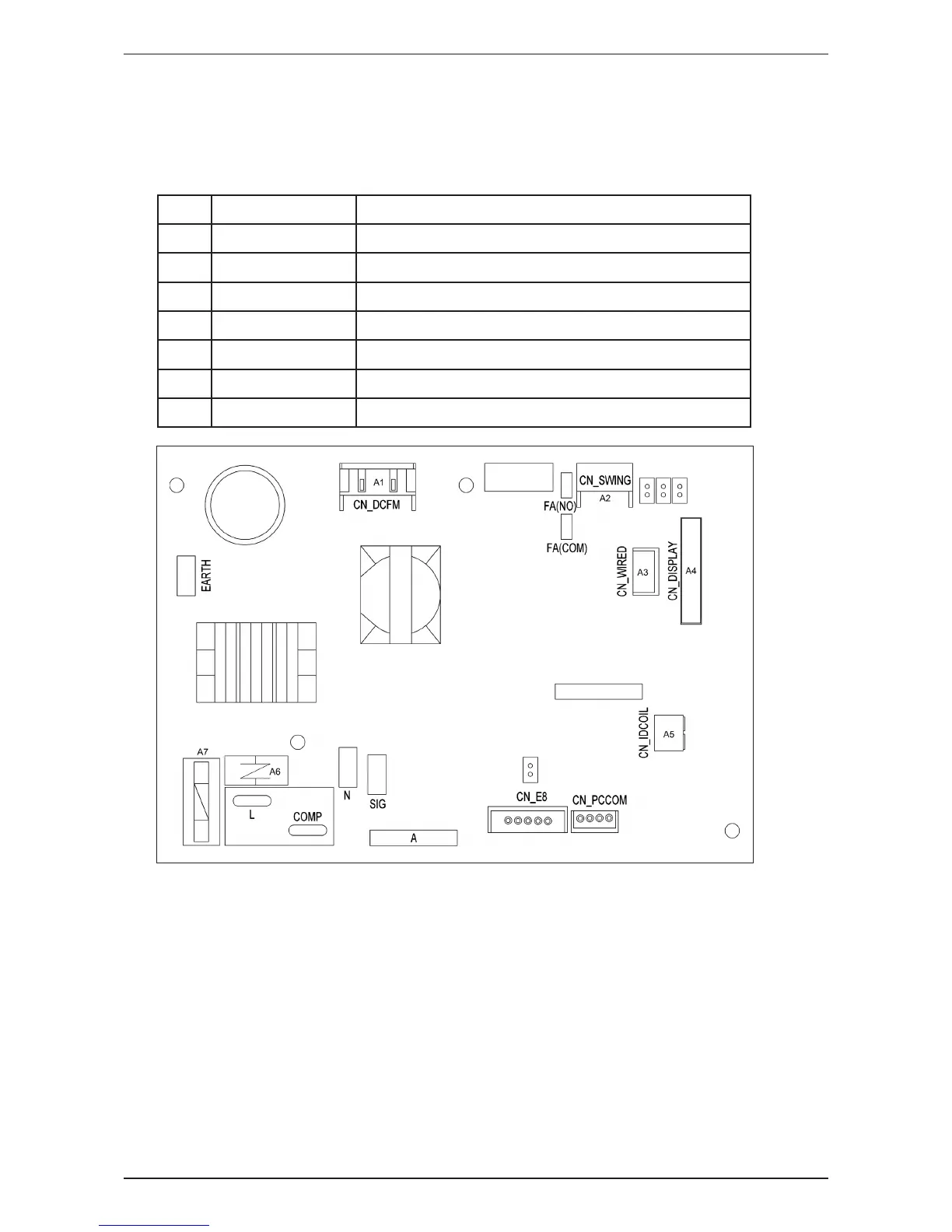

1.2.3.1 Main PCB: W_2_04A ; W_2_04B
Item Indication on PCB Description
1 A1 Connector for fan motor
2 A2 Connector for swing motor
3 A3 Connector for fan motor feedback
4 A4 Fuse
5 A5 Varistor
6 A6 Connector for wired handset
7 A7 Connector for signal receiver PCB
To Next Page
