Daikin FTXE35BVMA - Vertical Louvres Adjustment; Manually Adjusting Vertical Louvres; Notes on Flap and Louvre Angles

13
■

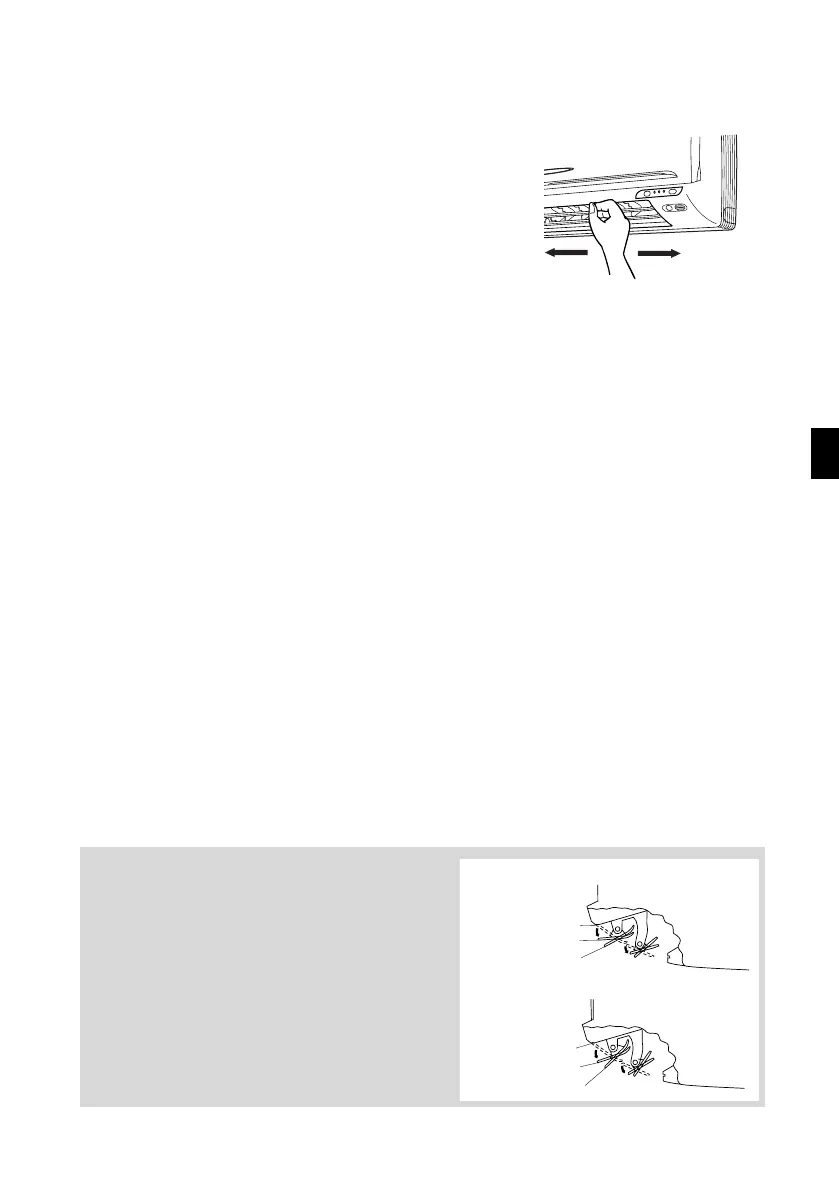

To adjust the vertical blades
(louvres)
Hold the knob and move the louvres.
(You will find a knob on the left-side and the right-side blades.)
Notes on flaps and louvres angles
• When “
SWING button
” is selected, the flaps
swinging range depends on the operation mode.
(See the figure.
)
■
■■
■
ATTENTION
• Always use a remote controller to adjust the flaps
angle. If you attempt to move it forcibly with hand
when it is swinging, the mechanism may be broken.
• Be careful when adjusting the louvres. Inside the
air outlet, a fan is rotating at a high speed.
In DRY mode or COOL mode
In HEAT or FAN mode
When stop operation
Upper limit in cooling
Lower limit in cooling
0˚
25˚
20˚
45˚
When stop operation
Upper limit in heating
Lower limit in heating
