Names of Parts

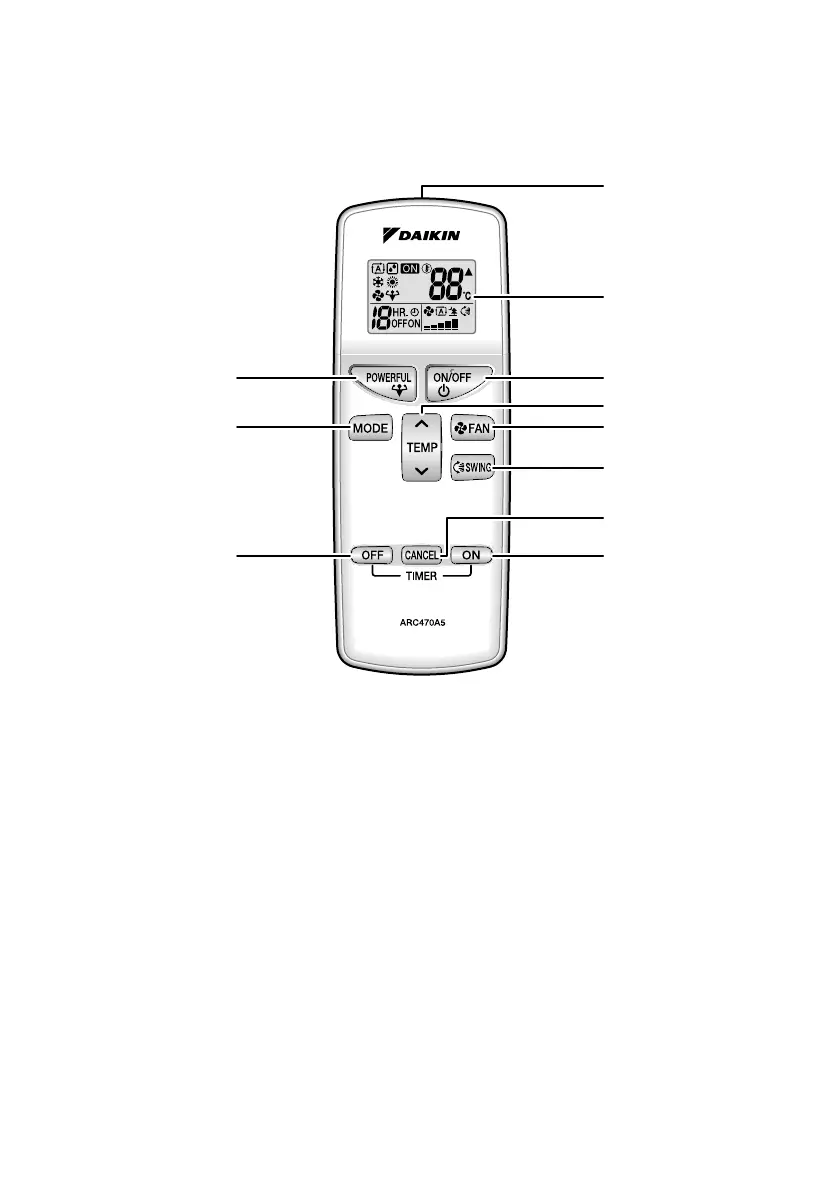

Remote Controller
1
5
2
11
8
7
4
9
3
6
10
<ARC470A5>
Signal transmitter:1.
It sends signals to the indoor unit.•
Display (LCD):2.
It displays the current settings. •
(In this illustration, each section is shown
with its displays on for the purpose of
explanation.)
POWERFUL button:3.
POWERFUL operation (page 13)
TEMPERATURE adjustment button:4.
It changes the temperature setting.•
ON/OFF button:5.
Press this button once to start operation.•
Press once again to stop it.
MODE selector button:6.
It selects the operation mode.•
(AUTO/DRY/COOL/HEAT/FAN) (page 9)
FAN setting button:7.
It selects the airfl ow rate setting.•
SWING button:8.
Adjusting the airfl ow direction. (page 11)•
ON TIMER button: 9. (page 15)
OFF TIMER button: 10. (page 14)
TIMER CANCEL button:11.
It cancels the timer setting.•
