English 18
Fig. 39
PRINTED CIRCUIT BOARD
CAPACITOR (M1F)
LIGHT EMITTING DIODE
(SERVICE MONITOR GREEN)
MAGNETIC RELAY (M1S)
MAGNETIC RELAY (M1P)
MOTOR (INDOOR FAN)
MOTOR (DRAIN PUMP)
MOTOR (SWING FLAP)
THERMO SWITCH
(M1F EMBEDDED)
THERMISTOR (AIR)
THERMISTOR (COIL)
FLOAT SWITCH
LIMIT SWITCH (SWING FLAP)
SELECTOR SWITCH
(EMERGENCY)
TRANSFORMER
(220-240V/22V)
PHASE CONTROL CIRCUIT
TERMINAL BLOCK
TERMINAL BLOCK
SIGNAL RECEIVER CIRCUIT
SIGNAL TRANSMISSION CIRCUIT
A1P
C1
HAP
KAR
KPR
M1F
M1P
M1S
Q1M
R1T
R2T
S1L
S1Q
SS1
T1R
V1TR
X1M
X2M
RC
TC
A2P
A3P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
X35A
X60A
X61A
WIRED REMOTE CONTROLLER
WIRELESS REMOTE CONTROLLER
(RECEIVER/DISPLAY UNIT)
CONNECTOR FOR OPTIONAL PARTS
R1T
SS1
THERMISTOR (AIR)

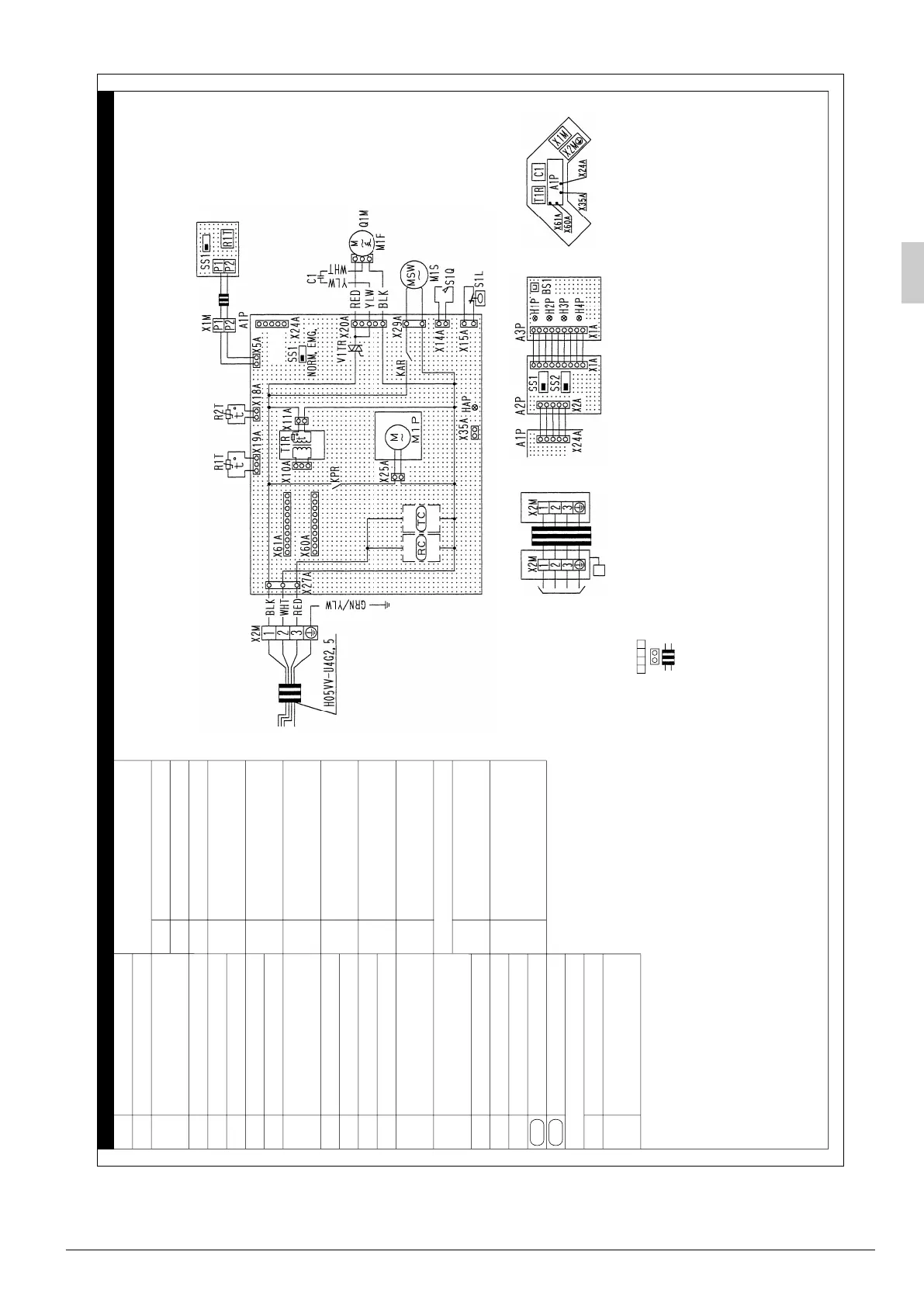

WIRING DIAGRAM
FUQ71 • 100 • 125BUV1B, FUQ71 • 100 • 125BVV1B3D043746-1A
1
2
2
5
10
6
78
9
1
3
1. : TERMINAL
: CONNECTOR
2. : FIELD WIRING
3. IN CASE USING CENTRAL REMOTE CONTROLLER, CONNECT IT TO THE UNIT
IN ACCORDANCE WITH THE ATTACHED INSTALLATION MANUAL.
4. X24A IS CONNECTED WHEN THE WIRELESS REMOTE CONTROLLER KIT IS BEING USED.
5. REMOTE CONTROLLER MODEL VARIES ACCORDING TO THE COMBINATION SYSTEM, CONFIRM
ENGINEERING MATERIALS AND CATALOGS, ETC. BEFORE CONNECTING.
6. SYMBOLS SHOW AS FOLLOWS:
RED:RED BLK:BLACK WHT:WHITE YLW:YELLOW GRN:GREEN BLU:BLUE
7. CONFIRM THE METHOD OF SETTING THE SELECTOR SWITCH (SS1, SS2)
BY INSTALLATION MANUAL AND ENGINEERING MATERIALS, ETC.
NOTES)
SELECTOR SWITCH
(MAIN/SUB)
PRINTED CIRCUIT BOARD
PRINTED CIRCUIT BOARD
PUSH BUTTON (ON/OFF)
LIGHT EMITTING DIODE
(ON-RED)
LIGHT EMITTING DIODE
(TIMER-GREEN)
LIGHT EMITTING DIODE
(FILTER SIGN-RED)
LIGHT EMITTING DIODE
(DEFROST-ORANGE)
SELECTOR SWITCH
(MAIN/SUB)
SELECTOR SWITCH
(WIRELESS ADDRESS SET)
CONNECTOR
(GROUP CONTROL ADAPTOR)
CONNECTOR
(INTERFACE ADAPTOR FOR
SKY AIR SERIES)
01_EN_3P249378-5G.fm Page 18 Friday, January 20, 2012 2:01 PM
