Fig. 40
PRINTED CIRCUIT BOARD
CAPACITOR (M1F)
FLASHING LAMP
(SERVICE MONITOR GREEN)
MAGNETIC RELAY (M1S)
MAGNETIC RELAY (M1P)
MOTOR (INDOOR FAN)
MOTOR (DRAIN PUMP)
MOTOR (SWING FLAP)
THERMAL PROTECTOR
(M1F EMBEDDED)
THERMISTOR (AIR)
THERMISTOR (COIL)
FLOAT SWITCH
LIMIT SWITCH (SWING FLAP)
SELECTOR SWITCH
(EMERGENCY)
TRANSFORMER
(220-240V/22V)
TRIAC
(PHASE CONTROL CIRCUIT)
TERMINAL BLOCK
TERMINAL BLOCK
SIGNAL RECEIVER CIRCUIT
SIGNAL TRANSMISSION CIRCUIT
A1P
C1
HAP
KAR
KPR
M1F
M1P
M1S
Q1M
R1T
R2T
R3T
S1L
S1C
SS1
T1R
V1TR
X1M
X2M
RC
TC
A2P
A3P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
X24A
X35A
X60A
X61A
WIRED REMOTE CONTROLLER
WIRELESS REMOTE CONTROLLER
(RECEIVER/DISPLAY UNIT)
CONNECTOR FOR OPTIONAL PARTS
R1T
SS1
THERMISTOR (AIR)

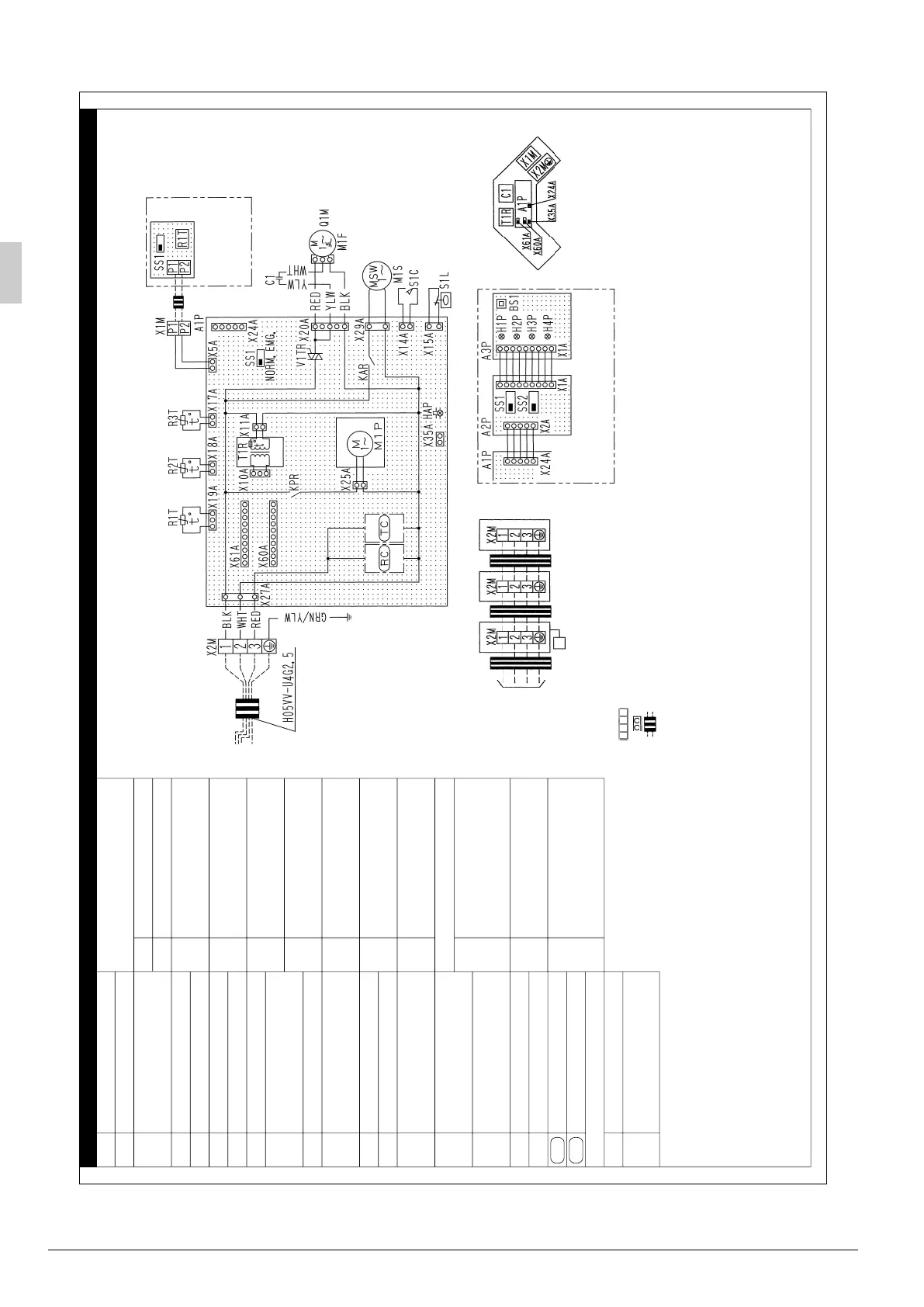

WIRING DIAGRAM
FUQ71 • 100 • 125BWV1B3D074710-1B
12
11
3
12
13
1. : TERMINAL BLOCK
: CONNECTOR
2. : FIELD WIRING
3. IN CASE OF SIMULTANEOUS OPERATION INDOOR UNIT SYSTEM, SEE THE INDOOR UNIT WIRING ONLY.
4. FOR THE DETAIL, SEE WIRING DIAGRAM ATTACHED TO OUTDOOR UNIT.
5. IN CASE USING CENTRAL REMOTE CONTROLLER, CONNECT IT TO THE UNIT IN ACCORDANCE WITH THE
ATTACHED INSTALLATION MANUAL.
6. IN CASE OF CONNECTION UNITS VARIES ACCORDING TO THE COMBINATION SYSTEM,
CONFIRM TECHNICAL GUIDE AND CATALOGS, ETC. BEFORE CONNECTING.
7. IN CASE OF MAIN/SUB CHANGEOVER,
SEE THE INSTALLATION MANUAL ATTACHED TO REMOTE CONTROLLER.
8. SYMBOLS SHOW AS FOLLOWS: BLK:BLACK RED:RED BLU:BLUE WHT:WHITE YLW:YELLOW GRN:GREEN.
9. SHOWS ONLY IN CASE OF PROTECTED PIPES.
USE H07RN-F IN CASE OF NO PROTECTION.
NOTES)
PRINTED CIRCUIT BOARD
PRINTED CIRCUIT BOARD
PUSH BUTTON SWITCH
(ON/OFF)
PILOT LAMP
(ON-RED)
PILOT LAMP
(TIMER-GREEN)
PILOT LAMP
(FILTER SIGN-RED)
PILOT LAMP
(DEFROST-ORANGE)
SELECTOR SWITCH
(MAIN/SUB)
SELECTOR SWITCH
(WIRELESS ADDRESS SET)
CONNECTOR
(WIRELESS REMOTE
CONTROLLER)
CONNECTOR
(GROUP CONTROL ADAPTOR)
CONNECTOR
(INTERFACE ADAPTOR FOR
SKY AIR SERIES)
614
7
1
9
15
5
12
10
88
SELECTOR SWITCH
(MAIN/SUB)
