a)
b)
c)
Strap
Starp Cutter
Top corrugated
cardboard sheet with
EPS
❶
• Cut all the straps (a) from the unit
using strap cutter(b) as shown in
figure.
❷
❸
• Remove the bottom skid(d) with EPS by
pulling the unit up, then remove the
polythene product cover by pulling it up
❹

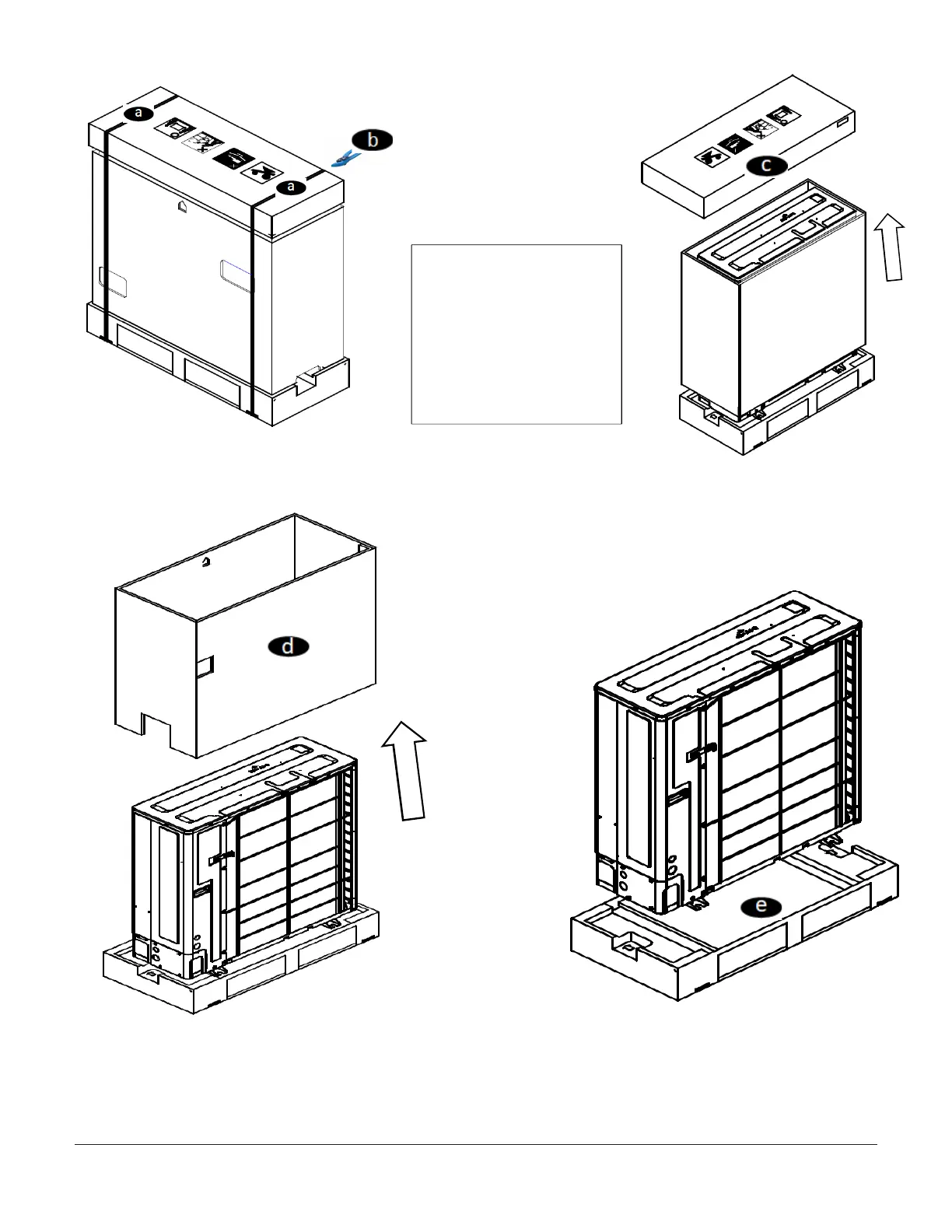

14. Unpacking & Packing of the Outdoor Unit
14-1 Unpacking
• Remove the Top corrugated
cardboard sheet with EPS from
the unit by pulling it up as
shown in figure.
d)
Cardboard Box
• Remove the cardboard box from
the unit by pulling it up as shown in
figure.
e)
Bottom Skid
59
