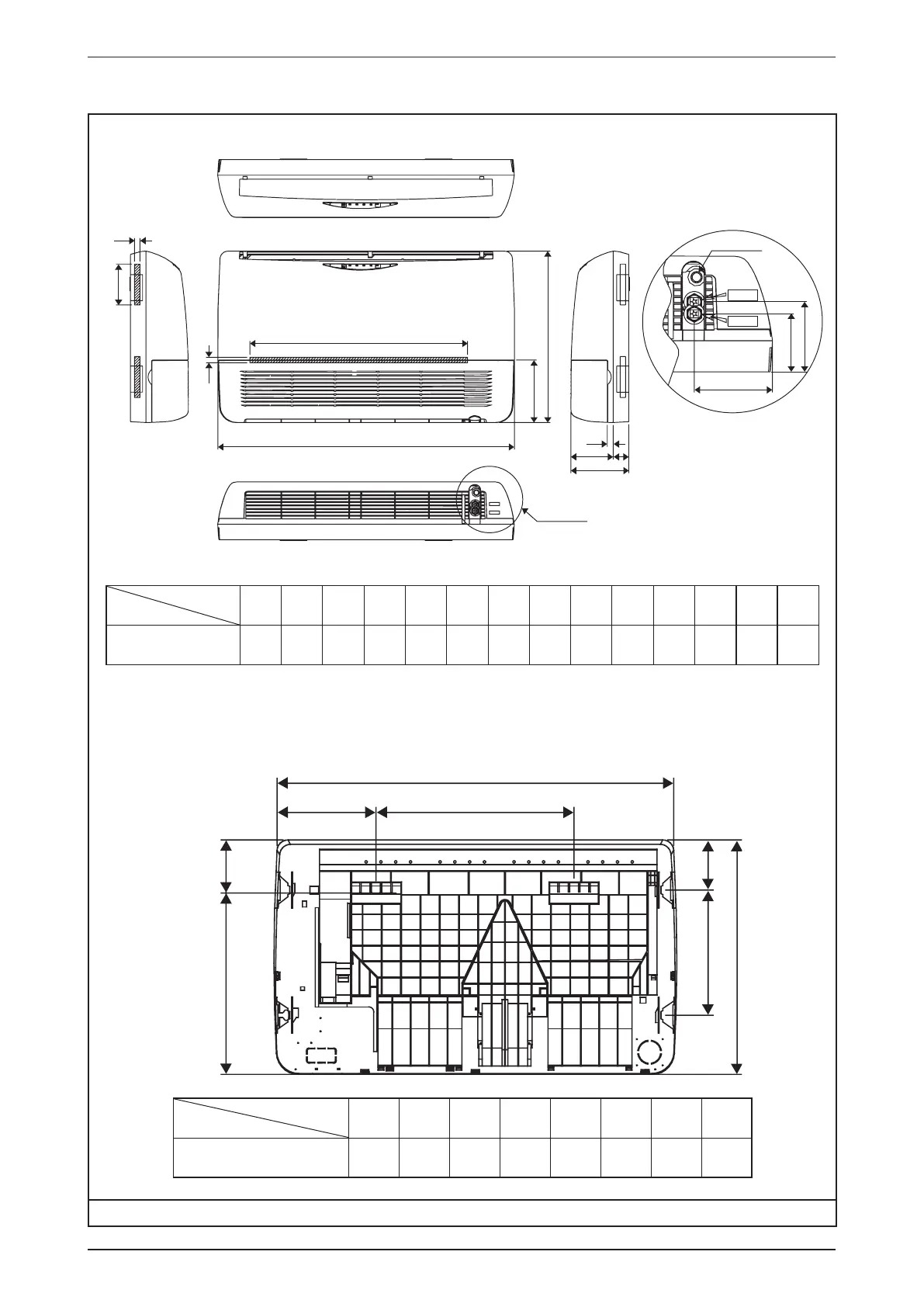

Outlines & Dimensions
133
Model: FWE05/06/07E
G
E
B
SEE DETAIL A
K
I
J
D
C
H
DRAIN PIPE
DETAIL A
L
M
A
F
N
WATER INLET
WATER OUTLET
Dimension
Model
A B C D E F G H I J K L M N
FWE05/06/07E 800 1090 230 630 20 150 20 21 156 57 213 144 107 129
Mounting Bracket
A
BC
H G
E D
F
Dimension
Model
A B C D E F G H
FWE05/06/07E 1073 534 268 135 336 630 145 485
Note: Dimension in mm
