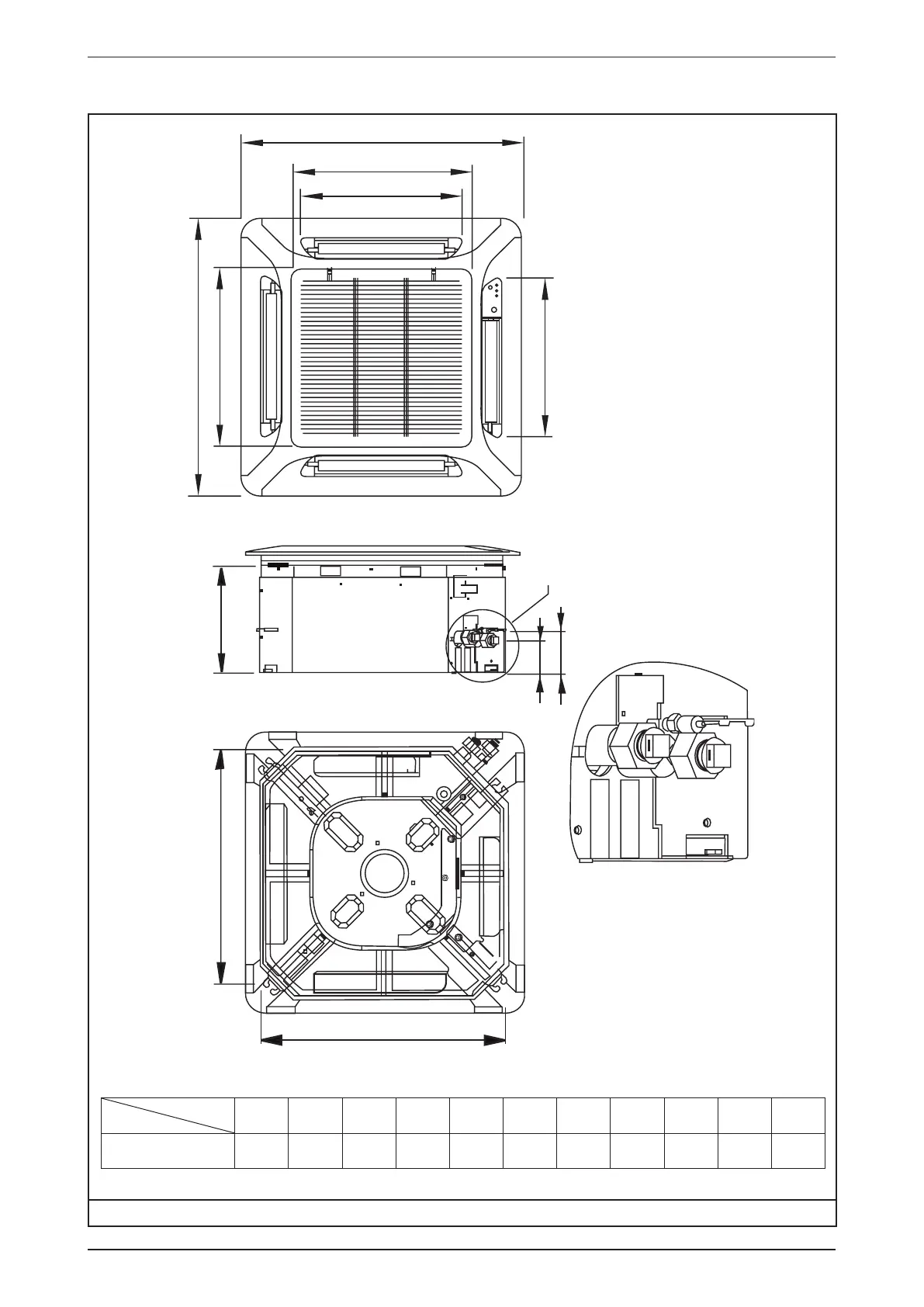

Outlines & Dimensions
108
Model: FWF02/04/05C
Dimension
Model
A B C D E F G H I J K
02/04/05 570 570 250 640 408 364 408 640 75 98 364
052075
408
640
408
364
364
SEE DETAIL A
DETAIL A
WATER INLET
WATER OUTLET
A
CB
D E
F
G
H
K
I J
Note: Dimension in mm
