Outlines & Dimensions
123

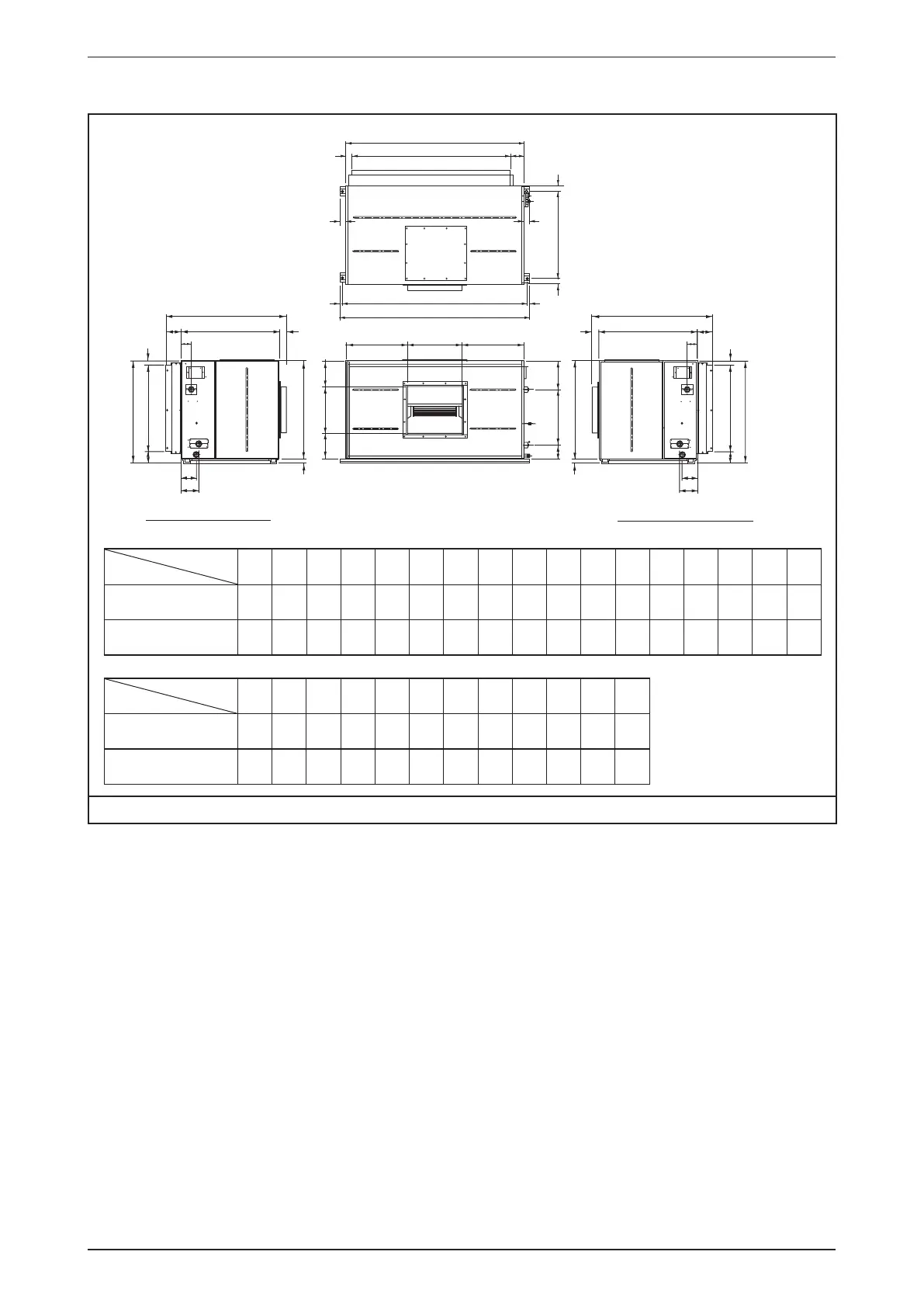

Model: FUD30/40B (Horizontal Air Discharge)
A
X
ZA
Z Y
T
S
K
ZB
ZC
ZS
W
P N
L M L
X
Y
R Q U
ZA
Z
S
K
ZB
ZC
Z
S
B
E
H
I
F
J
G
C
D
F
G
V
O
I
T
W
V
NOTE:
FOR HORIZONTAL AIR DISCHARGE
LEFT PIPING (OPTIONAL)
RIGHT PIPING (STANDARD)
Dimension
Model
A B C D E F G H I J K L M N O P Q
30 1540 1370 1600 1640 53 50 20 117 48 754 885 533 474 220 408 222 468
40 1540 1370 1600 1640 53 50 20 117 48 754 885 533 474 220 408 222 468
Dimension
Model
R S T U V W X Y Z ZA ZB ZC
30 120 35 88 262 155 132 1040 60 850 130 747 103
40 120 35 88 262 155 132 1040 60 850 130 747 103
Note: Dimension in mm
