Daikin FXFQ-P - Piping Diagrams

EDUS391000-F1 Piping Diagrams
FXFQ-P 7

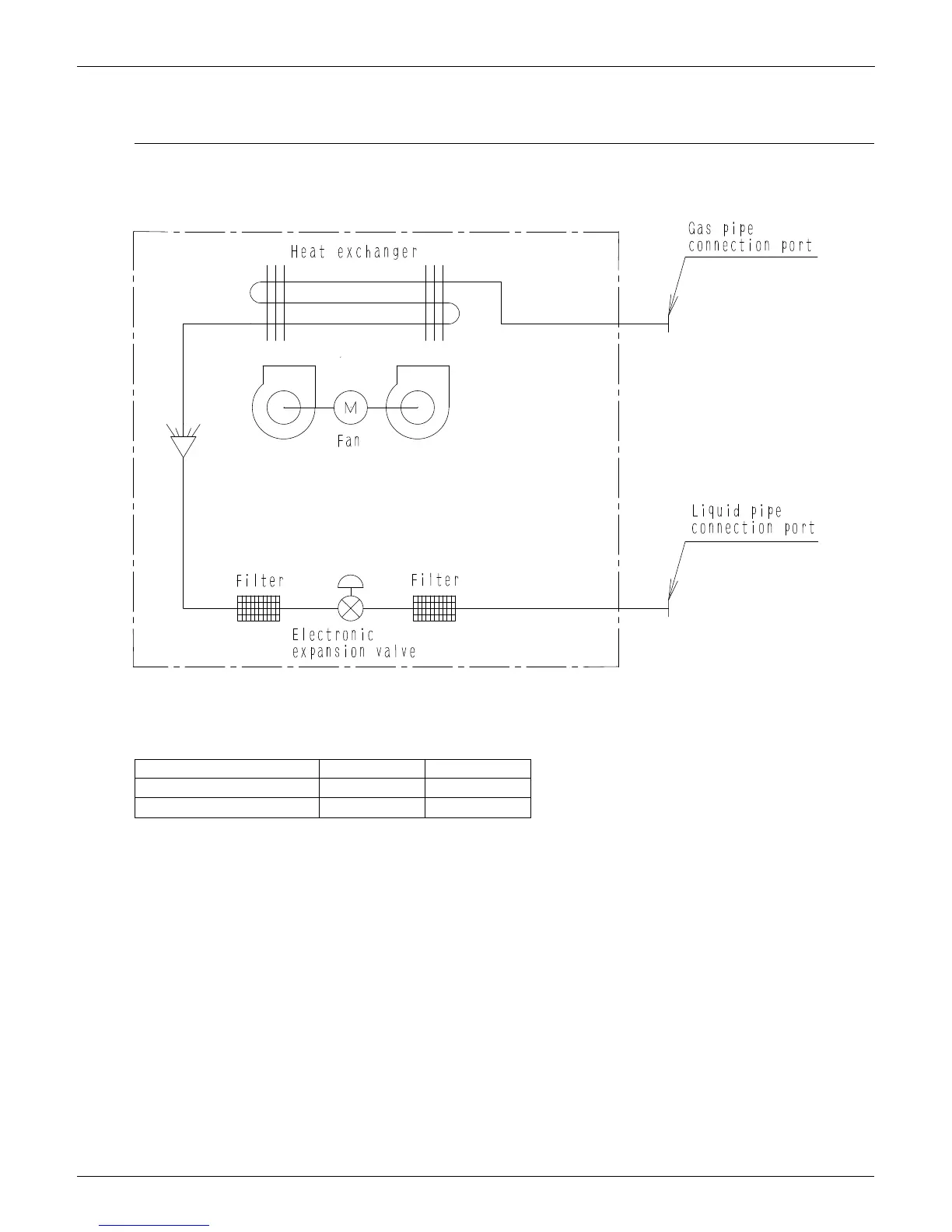

3. Piping Diagrams
FXFQ09PVJU / FXFQ12PVJU / FXFQ18PVJU / FXFQ24PVJU / FXFQ30PVJU / FXFQ36PVJU / FXFQ48PVJU
Model GAS Liquid
FXFQ09 / 12 / 18PVJU φ1/2 φ1/4
FXFQ24 / 30 / 36 / 48PVJU φ5/8 φ3/8
4D024460D
