(1) For rear side piping
• Remove the rear piping penetration cover, and connect the piping. (Refer to Fig. 16 and 18)
(2) For upward piping
• For upward piping, L-shaped connection piping kit (optional accessory) will be required.
• Remove the top panel penetration cover, and use the L-shaped connection piping kit (optional accessory)
to conduct piping. (Refer to Fig. 16 and 17)
(3) For right side surface piping
• Remove the stay for packing and delivering (reinforcing plate) at the right side, and put back the screw to
the original position of the indoor unit. (Refer to Fig. 18)
• Open the knockout hole at the decoration side panel (right), and connect piping. (Refer to Fig. 18)
•
After piping is finished, cut the removed penetration cover along the shape of piping, and install.
Also, for top panel penetration cover, as it was before removed, put the horizontal blade motor and ther-
mistor lead through the clamp of the top panel penetration cover and fix. (Refer to Fig. 16 and 19)
When doing this, block any gaps between the piping penetration cover and the piping using putty to prevent
dust from entering the indoor unit.

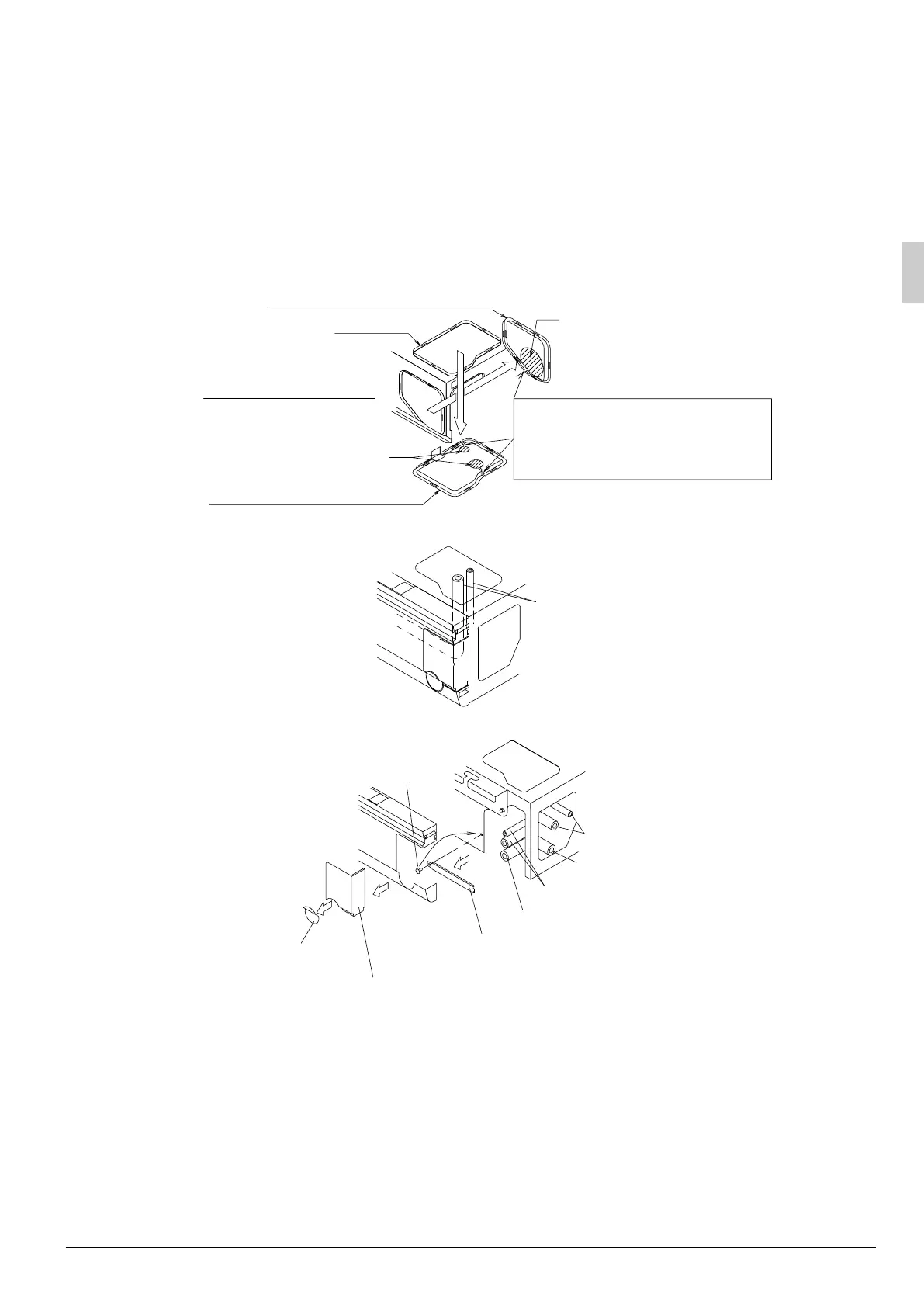

Top panel penetration cover
Cut at the position avoiding
the knob part of the penetration
cover
Rear piping penetration cover
Cutoff
Cutoff
Top panel
Fig. 16
View from air inlet side
Upward refrigerant piping
L-shaped branch piping kit
(Optional accessory)
Fig. 17
Screw
(put back to the indoor unit)
Decoration side panel (right)
Separating parts
Cut only this part when
laying only the drain
piping on the right side.
Stay for packing and delivering
(reinforcing plate)
Right side refrigerant piping
Rear side drain piping
Rear side refrigerant piping
Right side drain piping
Fig. 18
