English 6
4. PREPARATION BEFORE INSTALLATION
(1) For the locations of indoor unit hanging bolts, piping outlet holes, drain piping outlet hole, and
electric wiring inlet hole. (Refer to Fig. 3)
(2) Make holes for hanging bolts, piping outlet, drain piping outlet and electric wiring inlet.
• Use the installation pattern paper (5).
• Determine the locations of hanging bolts, piping outlet, drain piping outlet, and electric wiring inlet. And
make the hole.
Model name (FXHQ-) A B C D E F G H J
Type 32 960 920 378 324 270 375 398 377 260
Type 63 1270 1230 533 479 425 530 553 532 415
Type 100 1590 1550 693 639 585 690 713 692 575

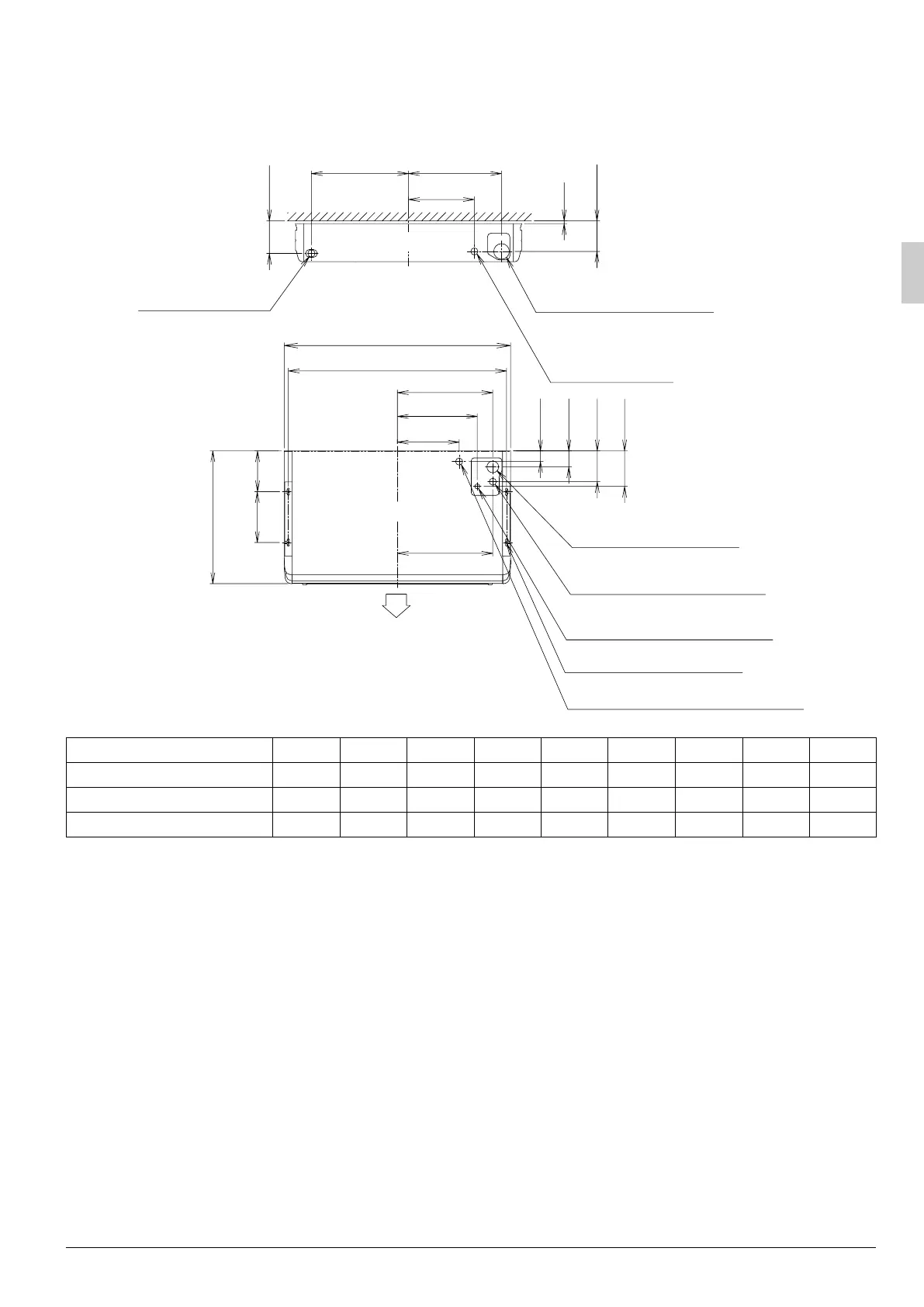

Fig. 3
F
690 Unit dimension
210
D
C
A Unit dimension
B Hanging bolt pitch
View from the ceiling
GH
J
260
30
5
175 200
163
E
189
87
View from the front
Left back drain
piping outlet hole
Wall hole for back side
piping outlet
(φ100 hole)
Back side wiring
outlet location
Discharge
Unit : mm
Top panel drain piping
connection position
Top panel gas side piping
connection position
Top panel liquid side piping
connection positions
Top panel wiring outlet position
Hanging bolt (4 pieces)
Hanging bolt pitch
