9. MOUNTING SUCTION GRILLE · DECORATION SIDE PANEL
Install securely in the reverse order when decoration side panel and suction grille were removed.

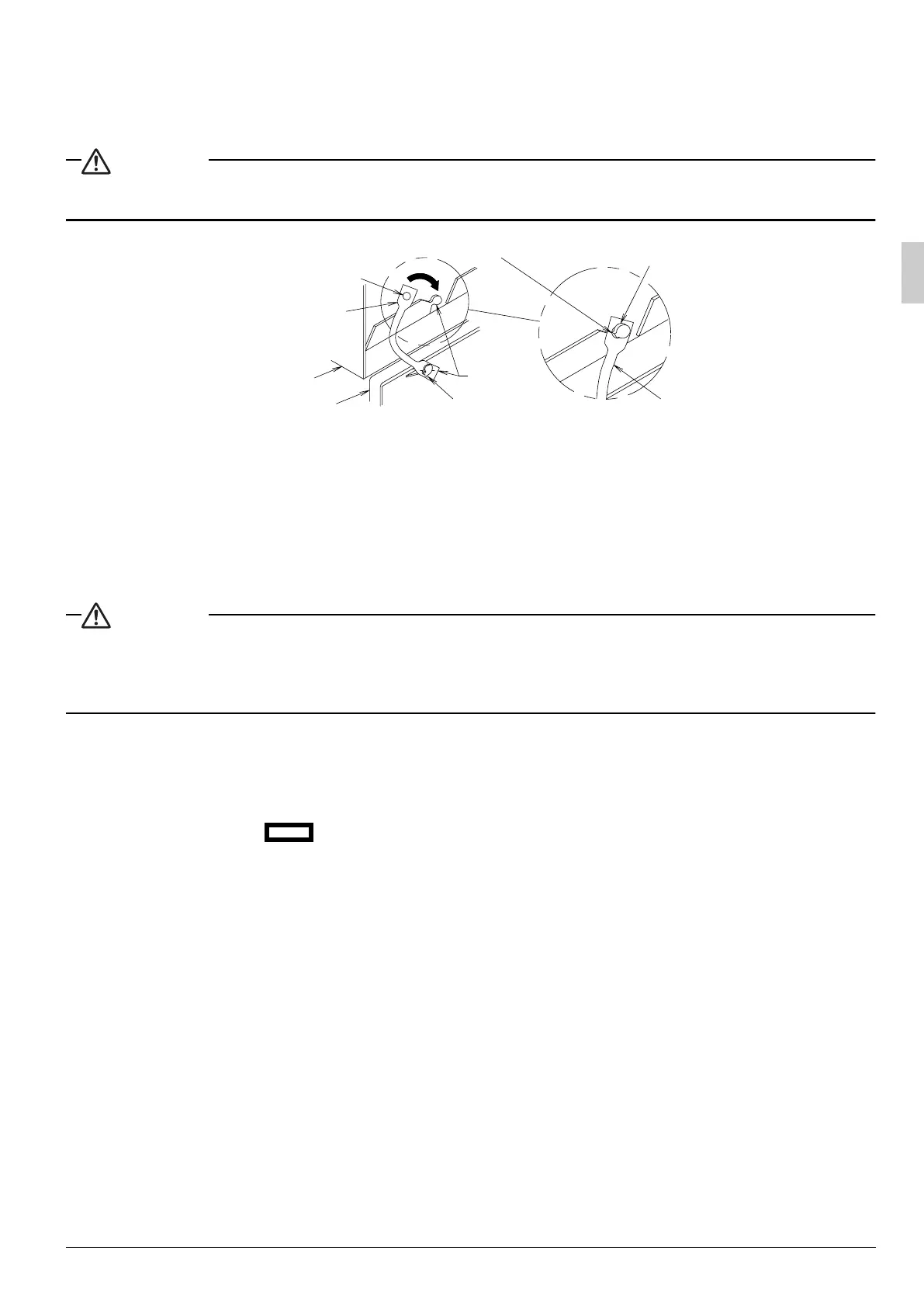

• When installing the suction grille, hang the string of the suction grille to the hanging part of the indoor unit
shown Fig. 35.
CAUTION
When closing the suction grille, the strap may get caught. Confirm that the strap does not stick out of the
side of the suction grille before closing.
10. FIELD SETTING AND TEST OPERATION
<<Refer to also the installation manual attached to the outdoor unit.>>
CAUTION
Before carrying out field setting, check the items mentioned in the clause 2 “1. Items to be checked after
the installation work is completed” on page 4.
• Check if all the installation and piping works for the air conditioner are completed.
• Check if the control box lids of the air conditioner are closed.
<FIELD SETTING>
<After turn on the power supply, carry out field setting from the remote controller according to the
installation state.>
• Carry out setting at 3 places, “Mode No.”, “FIRST CODE No.” and “SECOND CODE No.”.
The settings shown by “ ” in the table indicate those when shipped from the factory.
• The method of setting procedure and operation is shown in the installation manual attached to the remote
controller.
(Note)Though setting of “Mode No.” is carried out as a group, if you intend to carry out individual setting by
each indoor unit or confirmation after setting, carry out setting with the “Mode No.” shown in the
parenthesis ( ).
• In case of remote control, for changeover of input to FORCED OFF or to ON/OFF OPERATION.
[1] Enter into the field setting mode with the remote controller.
[2] Select Mode No. “12”.
[3] Set the FIRST CODE No. to “1”.
[4-1] For FORCE OFF, set the SECOND CODE No. to “01”.
[4-2] For ON/OFF OPERATION, set the SECOND CODE No. to “02”.
(It is set to FORCED OFF when shipped from the factory.)
• Ask your customer to keep the manual attached to the remote controller together with the operation man-
ual.
• Do not carry out setting other than those shown in the table.
Strap
Strap
Round hole
Round hole
Hook
Hook
Cross hole
Indoor unit
Suction grille
Fig. 35
