FOR THE FOLLOWING ITEMS, TAKE SPECIAL
CARE DURING CONSTRUCTION AND CHECK
AFTER INSTALLATION IS FINISHED.
a. Items to be checked after completion of work
b. Items to be checked at time of delivery
Also review the “SAFETY PRECAUTIONS”
c. Points for explanation about operations
2-4 NOTE TO THE INSTALLER
Be sure to instruct customers how to properly operate the
unit (especially cleaning filters, operating different functions,
and adjusting the temperature) by having them carry out
operations themselves while looking at the manual.
3. SELECTING INSTALLATION SITE
(1) Select an installation site where the following condi-
tions are fulfilled and that meets your customer’s
approval.
• In the upper space of the indoor unit where there is no
possible dripping of water from the refrigerant pipe, drain
pipe, water pipe, etc.
• Where optimum air distribution can be ensured.
• Where nothing blocks air passage.
• Where condensate can be properly drained.
• If supporting structural members are not strong enough
to take the unit’s weight, the unit could fall out of place
and cause serious injury.
• Where the false ceiling is not noticeably on an incline.
• Where there is no risk of flammable gas leakage.
• Where sufficient clearance for maintenance and service
can be ensured. (Refer to Fig. 1)
If sufficient clearance could be ensured at*, leave a
space of 200 mm or more between the unit and it’s sur-
roundings easier maintenance and service.
• Where piping between indoor and outdoor units is possi-
ble within the allowable limit. (Refer to the installation
manual for the outdoor unit.)
CAUTION
• Install the indoor and outdoor units, power supply wiring and
connecting wires at least 1 meter away from televisions or
radios in order to prevent image interference or noise.
(Depending on the radio waves, a distance of 1 meter may
not be sufficient enough to eliminate the noise.)
(2) This indoor unit may be installed on ceilings up to 3.5 m
in height. However, if the ceiling is higher than 2.7m,
the remote control will have to be set locally. (Refer to
“11. FIELD SETTING” on page 12
)
(3) Use suspension bolts for installation. Check whether
the ceiling is strong enough to support the weight of
the unit or not. If there is a risk, reinforce the ceiling
before installing the unit.
(Installation pitch is marked on the paper pattern for instal-
lation. Refer to it to check for points requiring reinforcing.)
Items to be checked
If not properly done, what is
likely to occur
Check
Are the indoor and outdoor
unit fixed firmly?
The units may drop, vibrate
or make noise.
Is the gas leak test finished?
It may result in insufficient
cooling.
Is the unit fully insulated? Condensate water may drip.
Dose drainage flow
smoothly?
Condensate water may drip.
Dose the power supply volt-
age correspond to that
shown on the name plate?
The unit may malfunction or
the components burn out.
Are wiring and piping cor-
rect?
The unit may malfunction or
the components burn out.
Is the unit safely grounded?
Dangerous at electric leak-
age.
Is wiring size according to
specifications?
The unit may malfunction or
the components burn out.
Is something blocking the air
outlet or inlet of either the
indoor or outdoor units?
It may result in insufficient
cooling.
Are refrigerant piping length
and additional refrigerant
charge noted down?
The refrigerant charge in the
system is not clear.
Items to be checked Check
Did you explain about operations while showing the
instruction manual to your customer?
Did you hand the instruction manual over to your cus-
tomer?
The items with WARNING and CAUTION marks
in the instruction manual are the items pertaining to
possibilities for bodily injury and material damage in
addition to the general usage of the product. Accordingly, it
is necessary that you make a full explanation about the
described contents and also ask your customers to read the
instruction manual.
≥
≥
≥
For installation
in high places
Required service
space

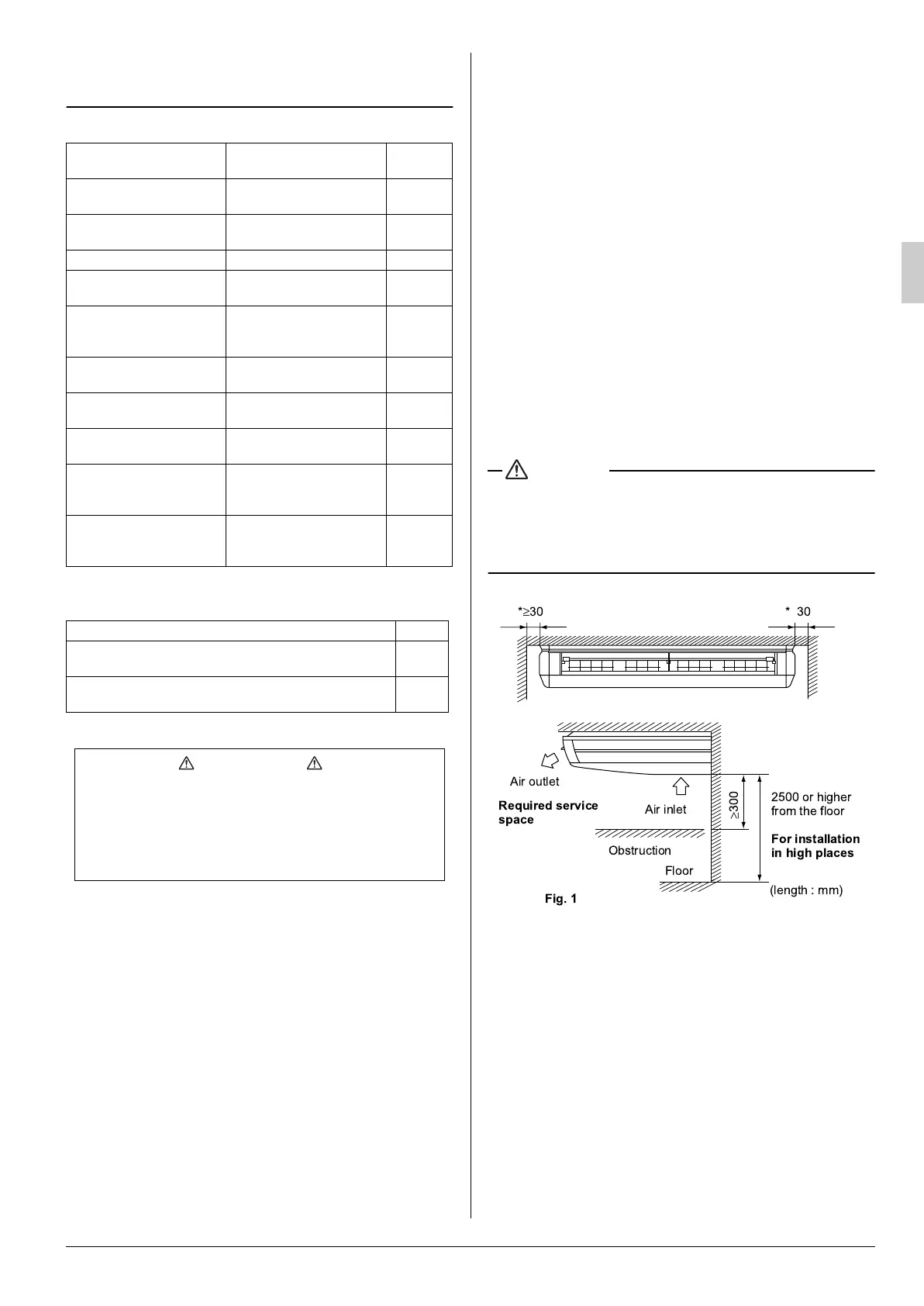

Fig. 1
