www.DaikinApplied.com 7 OM 1085-6 • MICROTECH III CONTROLLER
BACnet and
Unit Controller Hardware: 668105611
I/O Expansion Board Hardware: 668105711
Unit Controller Hardware: 668105601
I/O Expansion Board Hardware: 668105702
Hardware
Renesas E2 Lite or E1 programmer available at
www.renesas.com/us/en/products/software-tools/tools/emulator/
e2-emulator-lite.html
Renesas E8a programmer, available at www.renesas.com/us/
en/products/software-tools/tools/emulator/e8a.html
The original Segger Flasher5 programmer can also be used to
program legacy boards. However, it is no longer available from
the supplier for purchase. Instructions are provided in previous
versions of OM 1085
Additional custom 6-pin interface cable (Figure 6) that connects
the unit controller to the Renesas programmer cable.This cable
is not included in Renesas E2 Lite or E1 programmer kit when
ordered from Renesas. Contact the ATS Technical Response
Team at 315-282-6434 to request this cable
Additional custom 10-pin interface cable that connects the unit
controller JTAG port to Renesas E8a programmer. This cable
is not included in Renesas E8a programmer kit when ordered
from Renesas. Contact the ATS Technical Response Team at
315-282-6434 to request this cable
Software
Renesas Flash Program (RFP) software available at
www.renesas.com/us/en/software/D3017334.html
Renesas Flash Development Toolkit software available at
www.renesas.com/us/en/products/software-tools/tools/
to be saved to your hard drive. Contact the ATS Technical
to be saved to your hard drive. Contact the ATS Technical
No Program/Run jumper is used Program/Run jumper is used
BACnet Communication Module (Applies to all MicroTech III WSHP Unit Controllers)
Hardware
BACnet communication module installed on the WSHP baseboard
1. Segger J-Link programmer, available at www.segger.com or
2. ATMEL SAM-ICE programmer, available at www.DigiKey.com. Reference AT91SAM-ICE-ND or equivalent
Software
Segger J-Link software and documentation pack for Windows available at www.segger.com/downloads/jlink/#J-
LinkSoftwareAndDocumentationPack
SAM-BA v2.18 software free download available at www.microchip.com/DevelopmentTools/ProductDetails/PartNO/SAM-BA%20
In-system%20Programmer
Communication Module (Applies to all MicroTech III WSHP Unit Controllers)
Hardware
communication module installed on the WSHP baseboard
Twisted pair cable with 3-pin connector: Echelon TP/FT-10 to USB network interface, U10 or similar
Software
www.DaikinApplied.com or www.lonmark.org
application such as LonMaker SR4, OpenLNS CT, or CT available from Echelon at www.echelon.com

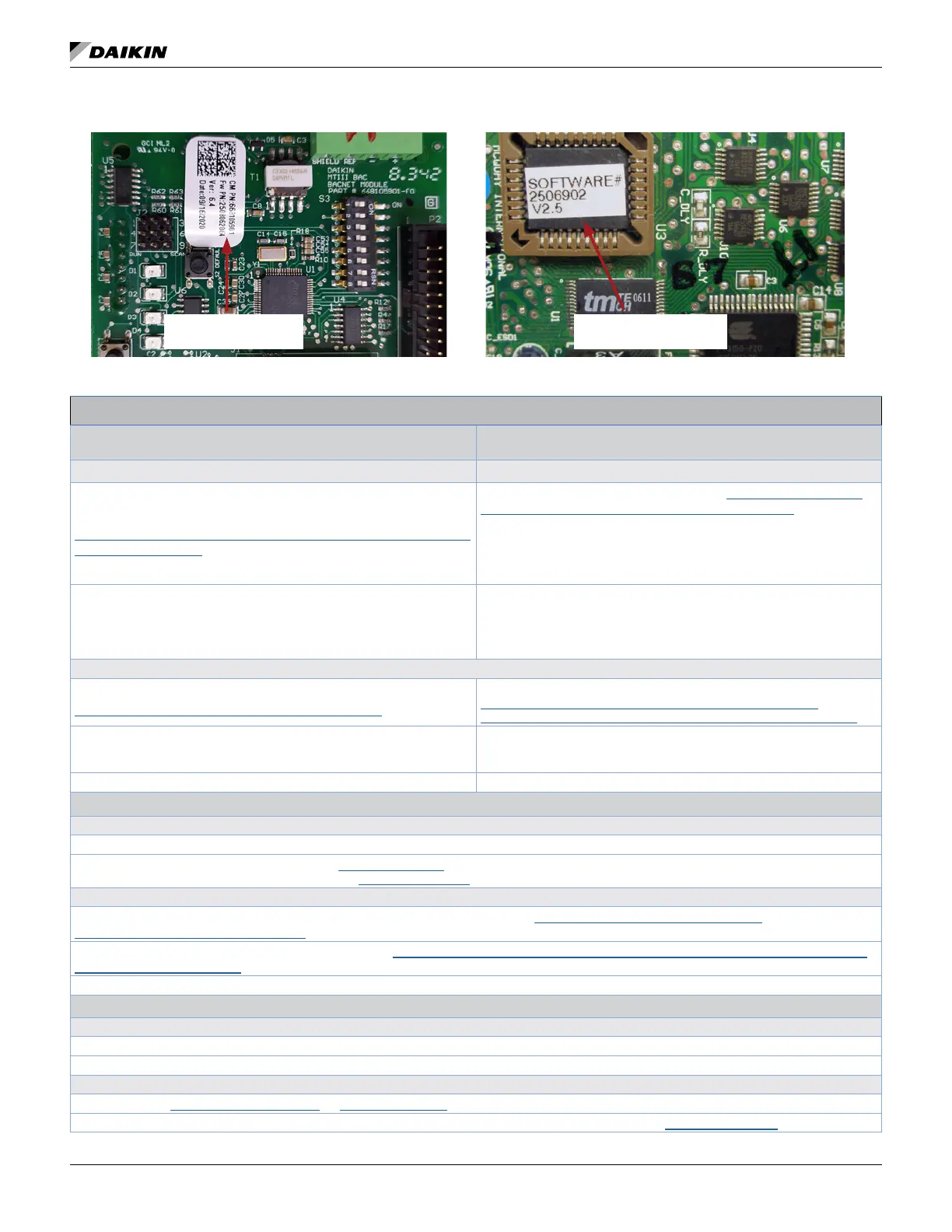

BACnet module software
version label
module software
version label
