Compressor ASSY Si011360EC
12 Removal Procedure
3
4
Disconnect the
compressor lead wires.
Remove the gasket.
Step Procedure Points

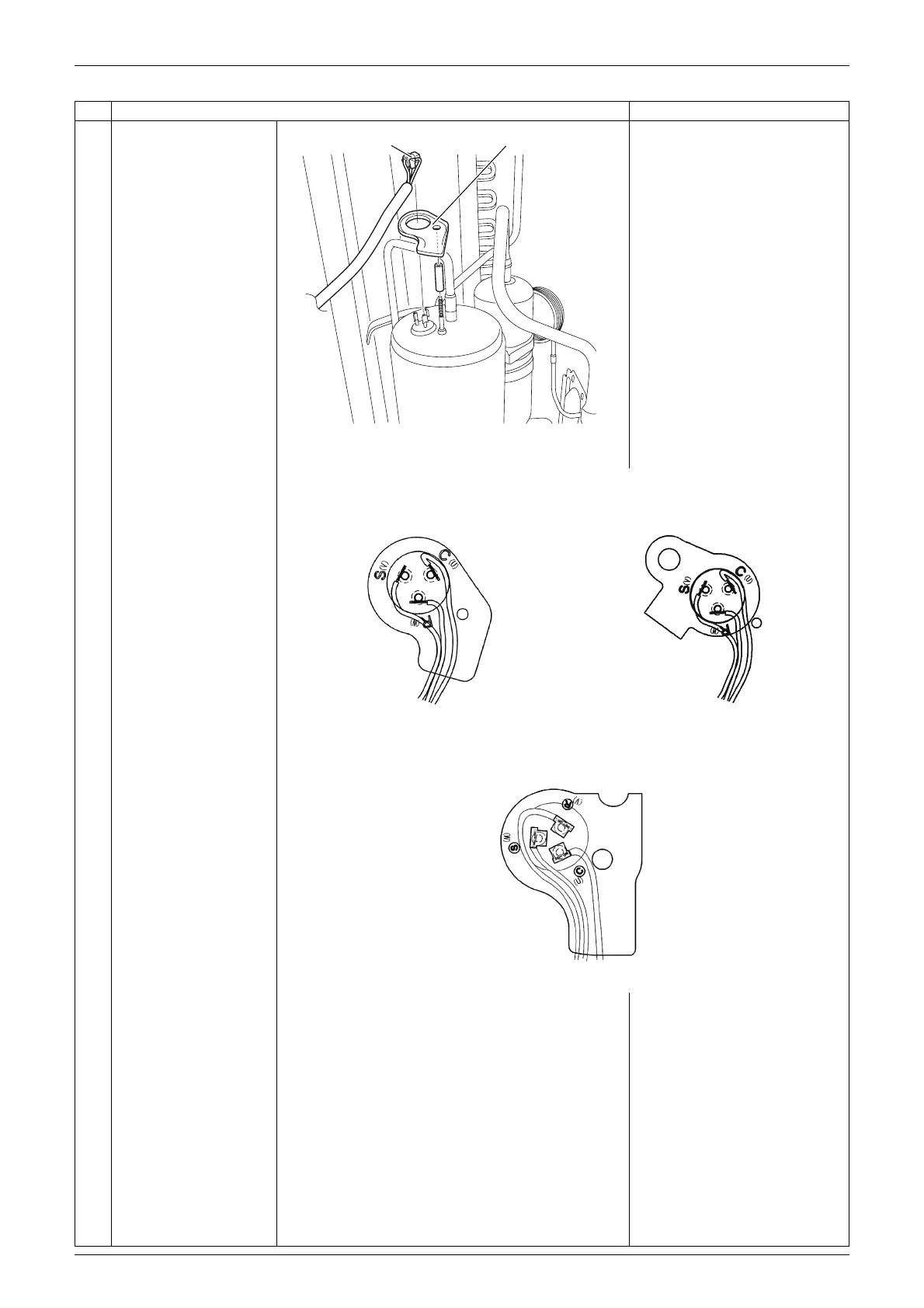

GasketCompressor lead wire
(R19498)
Pattern 1:
Pattern 2:
C (U): white, S (V): red, R (W): blue C (U): white, S (V): red, R (W): blue
Pattern 3:
C (U): white, S (W): red, R (V): blue
(R20298)
(R20989)
(R22653)
To Next Page
