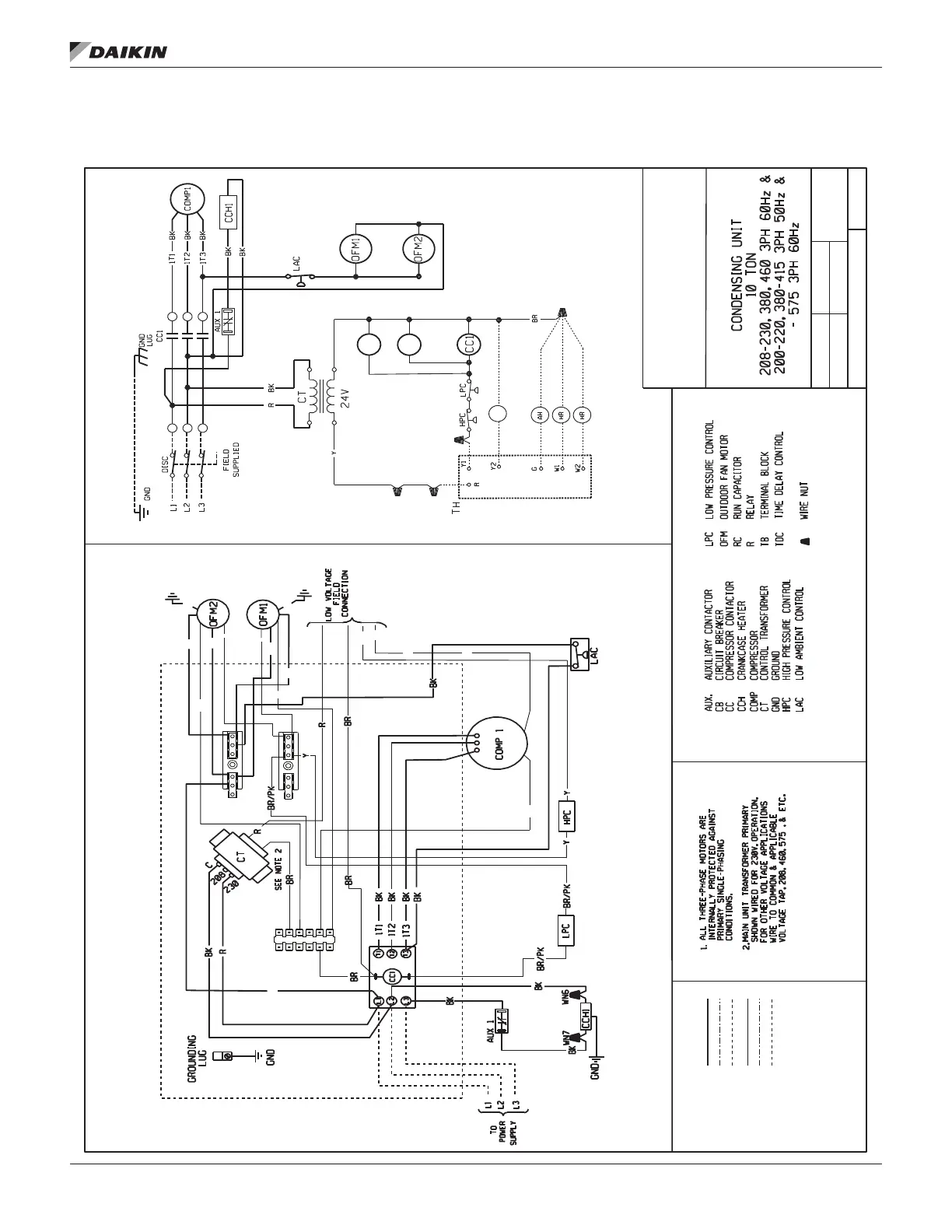

Figure 24: Typical Wiring Schematic - RCS 10G
WIRE COLOR CODE
BK......BLACK
BR......BROWN
BL.......BLUE
G........GREEN
GY......GRAY
O........ORANGE
PR......PURPLE
R........RED
W.......WHITE
Y........YELLOW
ORIGINAL RELEASE
NO.:
ELECTRICAL WIRING DIAGRAM
MODELED
BY:
CHECKED:APPROVED:
REV:PART NO.:
DATE:
WARNING
-CABINET MUST BE PERMANE NTLY GROUNDED
AND CONFORM TO I.E.C., N.E.C., C.E.C.,
NATIONAL WIRING REGULATIONS, AND LOCAL
CODES A S APPLICABLE.
REPLACEMENT WIRE
-MUST BE THE SAME SIZE AND TYPE
OF I NSULATION AS ORIGINAL (105C. MIN.)
-FIELD INSTALLED
-FACTORY STANDARD
LOW VOLTAG
E
-FIELD INSTALLED
-FACTORY OPTION
-FACTORY STANDARD
LINE VOLTAG
E
:
JHB
11/14/2017
0090-42663-13
A-1073S009
ODF2
ODF1
COMP
G/Y
G/Y
BL
BL
Y
Y
Y1
Y2
BR
BK
BR
BR
BL
BL
TS 1
TS
TERMINAL STRIP
A B C D
A B C D
GND
GND
BL
BK
TB 1
TB 2
WIRING INFORMATION NOTES
COMPONENT CODES
IM 962-4 • AIR-COOLED SPLIT SYSTEM CONDENSERS 28 www.DaikinApplied.com
