Electrical Component ASSY Si011360EC
8 Removal Procedure
Pattern 2: RC60PRV16, RC-Q Series, RC-R Series, RF Series, RQ50PRV16,
RQ-Q Series, RQ-R Series, RUF Series

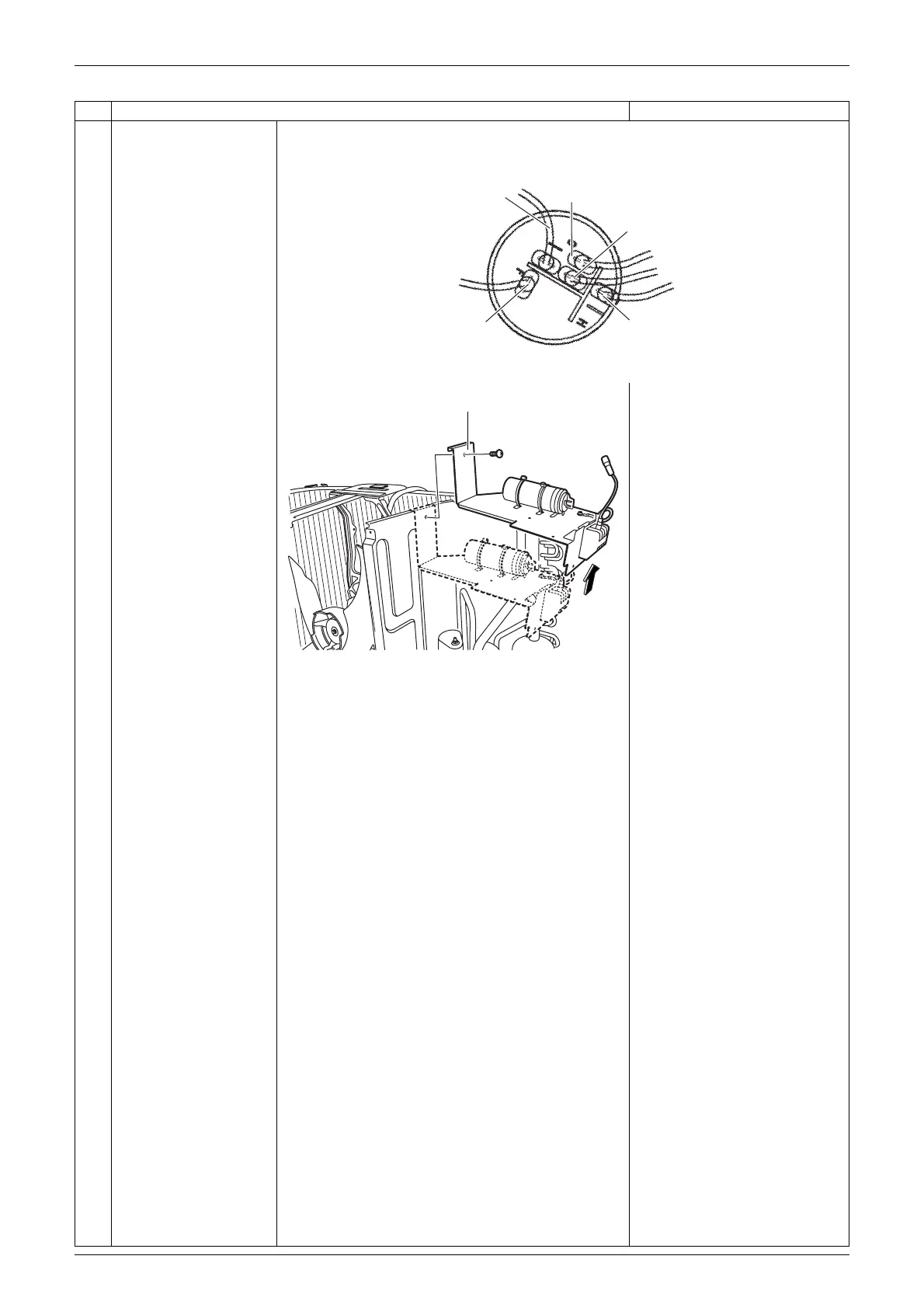

3 Remove the screw, and
then the electrical
component ASSY.
Step Procedure Points
from compressor(S):
red
from compressor(R):
blue
from terminal board 2:
blue
from fan motor:
red
from fan motor: white
(R23472)
Electrical component ASSY
(R19493)
To Next Page
