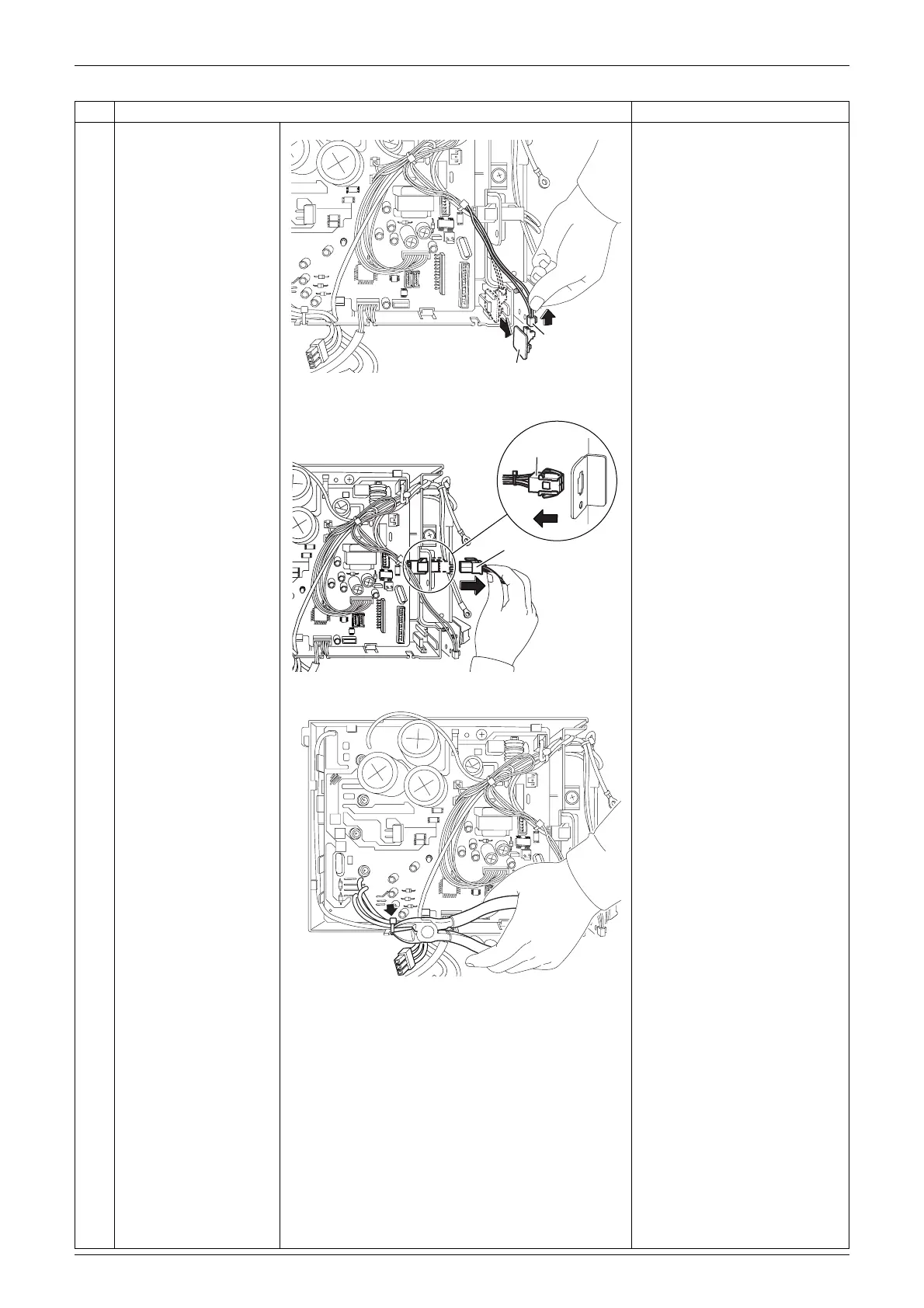

Si001067 Removal of PCBs
Removal Procedure 15
4
Pull out the forced
operation button PCB.
Disconnect the
connector [S110] to
remove the forced
operation button PCB.
Be careful of a sharp
protrusion at the back of the
forced operation button
PCB.
5
Disconnect the
selective connector for
standby electricity
saving and pull out the
relay connector.
6
Cut the clamp.
Step Procedure Points
Forced operation button PCB
(R13742)
[S110]
(R13507)
Selective connector
Relay
connector
(R11858)
