Daikin RKS20J2V1B Service Manual Removal Procedure

Removal of PCBs Si001067
14 Removal Procedure
3. Removal of PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

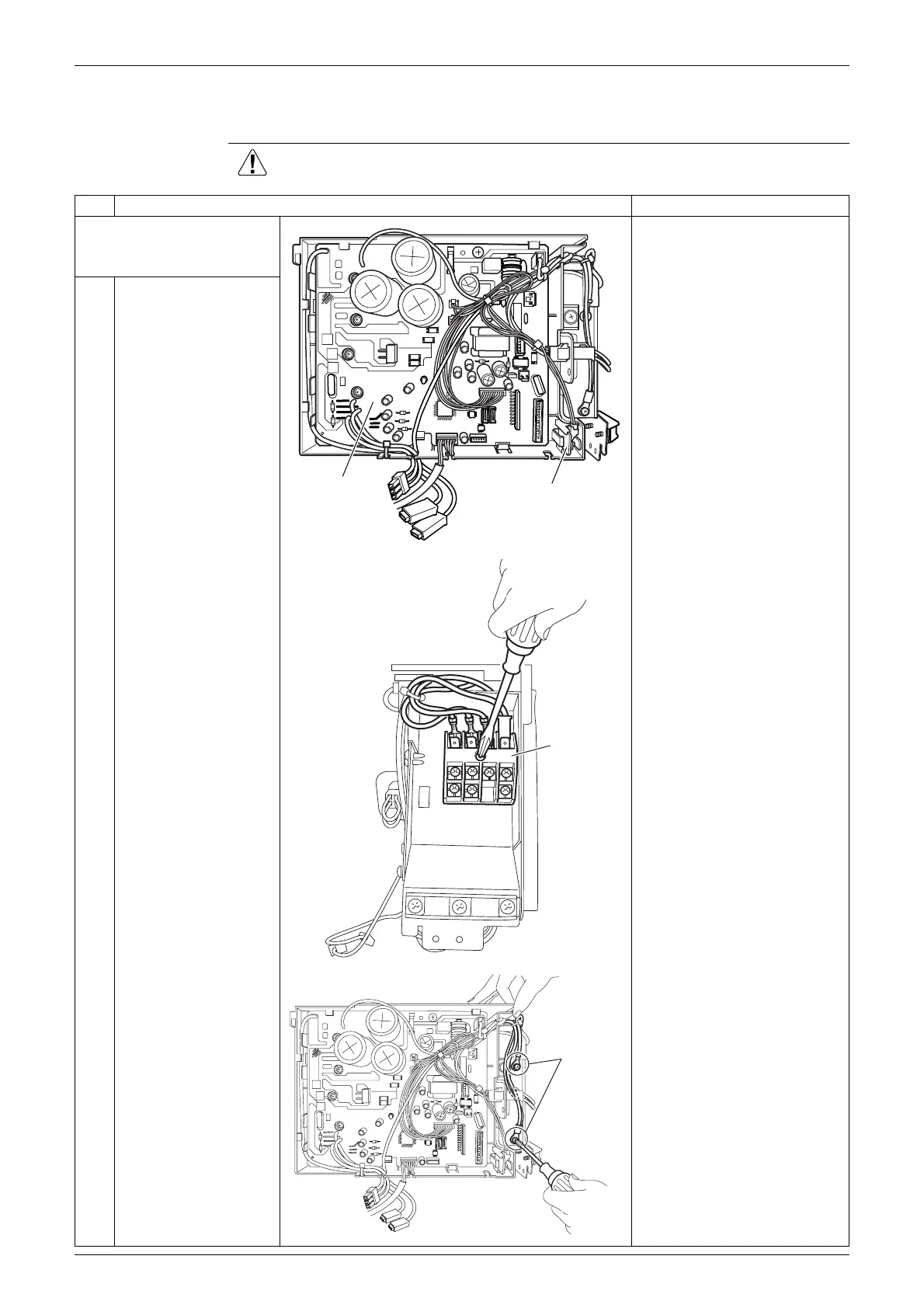

1. Remove the main PCB
and the forced operation
button PCB.

You can remove the main
PCB when you disconnect
the lead wires on the
terminal board without
removing the electrical box.
1
Layout of the main PCB
2
Remove the screw on
the terminal board.
3
Release the 2 earth
wires.
(R13506)
Main PCB
Forced operation
button PCB
(R11854)
Terminal
board
(R17020)
Earth
wire

Daikin RKS20J2V1B Specifications

General

Brand	Daikin
Model	RKS20J2V1B
Category	Heat Pump
Language	English
