Daikin RKS20J2V1B Service Manual Removal Procedure

Si001067 Removal of Outer Panels / Fan Motor
Removal Procedure 3
2

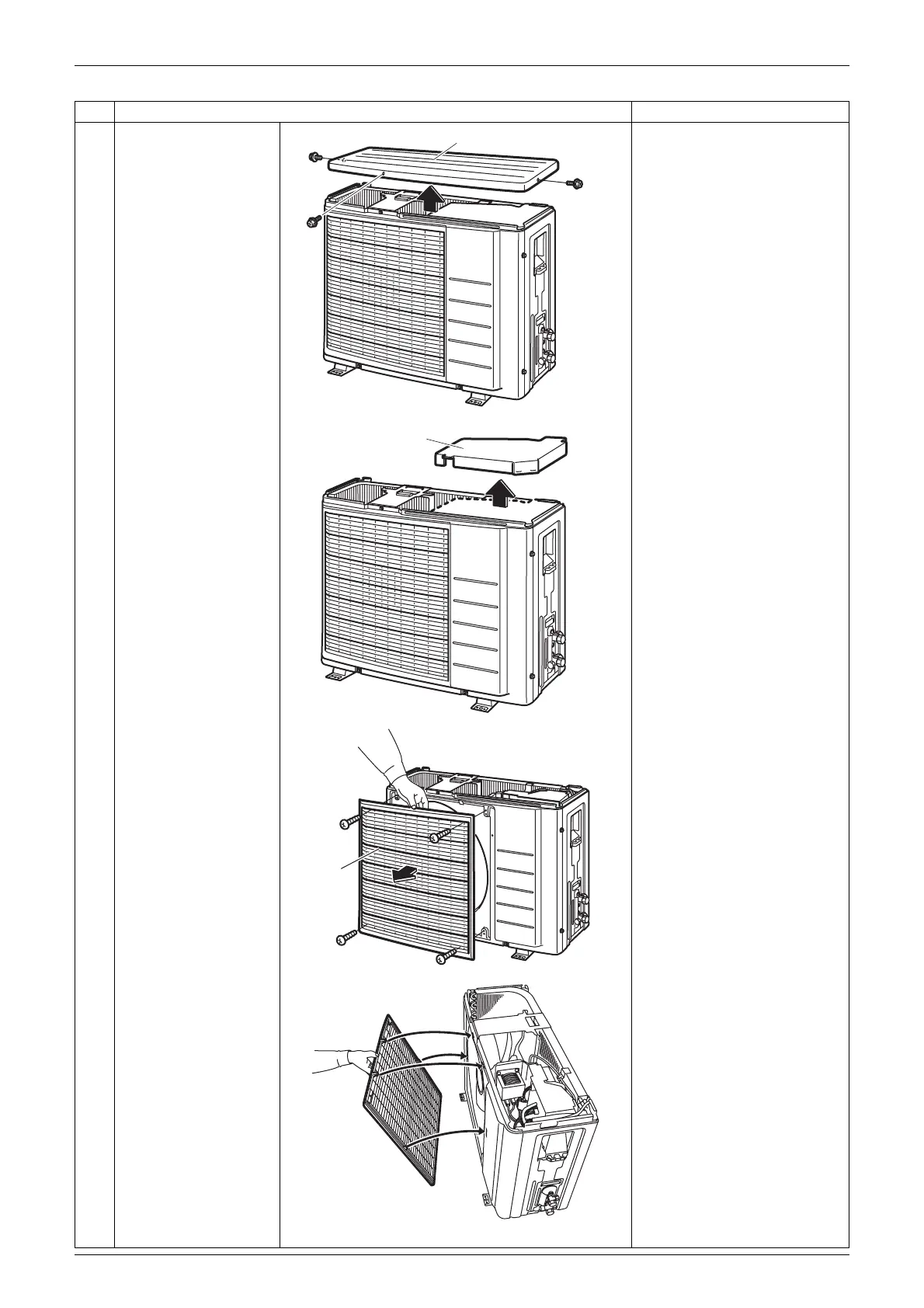

Remove the 3 screws
and lift the top panel.

Some models have only 2
screws.
3
Remove the drip proof
plate.
4
Remove the 4 screws
and remove the
discharge grille.

The discharge grille has 4
hooks.
Step Procedure Points
Top panel
(R13503)
(R7191)
Drip proof plate
(R7192)
Discharge
grille
(R7193)
