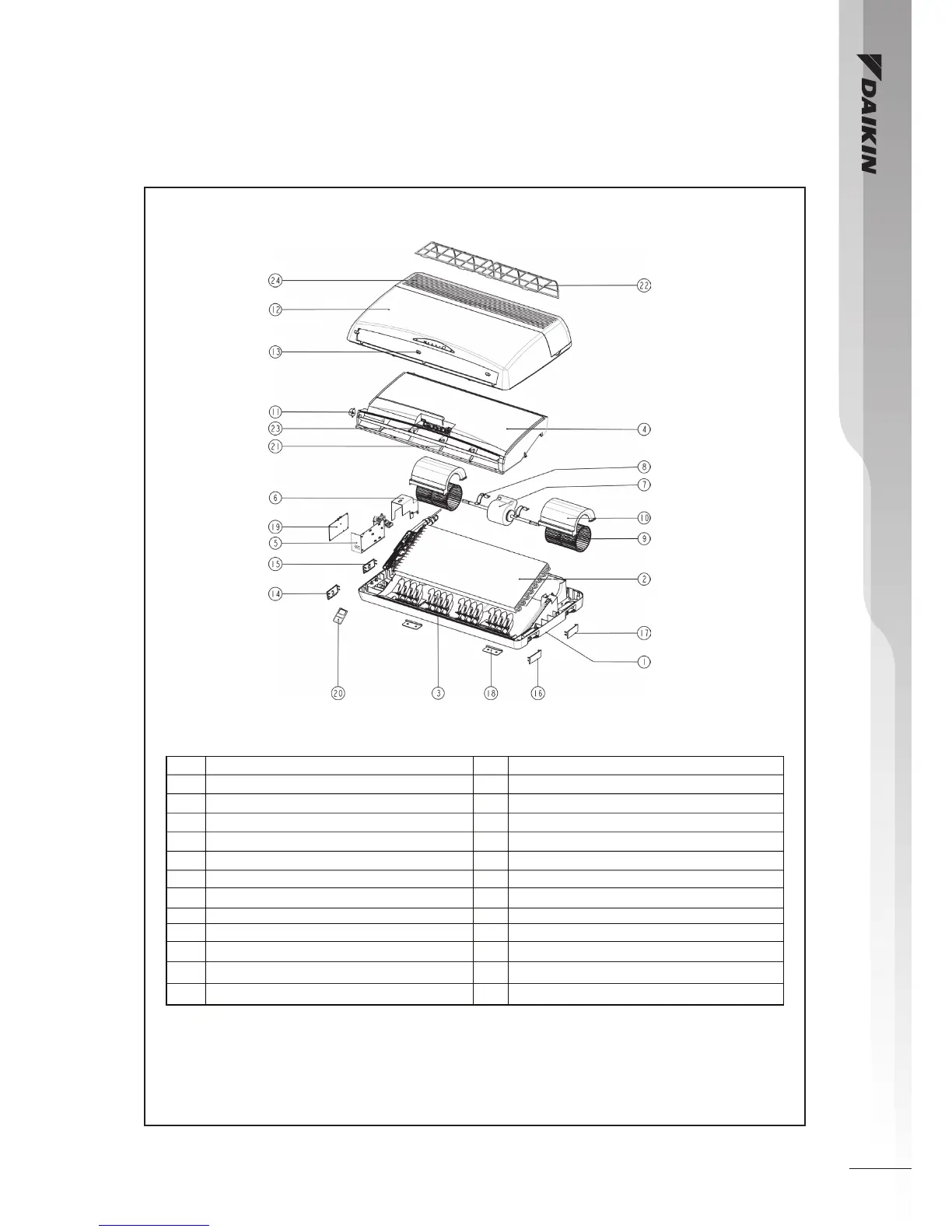

Daikin RN35DV1 - Exploded View & Part List

96
TM-FLH-0515-C
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
NO. PARTS DESCRIPTION NO. PARTS DESCRIPTION
1 ASSY.,TOP PANEL
2 ASSY., COIL
3 ASSY., VANE
15 COVER, HANGER R1 (A)
4 ASSY., DRAIN PAN
16 COVER, HANGER R2 (B)
5 ASSY., CONTROL BOX 17 MOUNTING BRACKET
7 MOTOR
8 MOTOR, BRACKET
9 BLOWER WHEEL
18 CONTROL MODULE
Model : FL15/20/25EV1L, FLN15/20/25/30EV1L, FLN15/20/25/30EV1M
19 G11 HANDSET
20 LOUVER
21 SARANET FILTER
11 MOTOR, AIR SWING
14 COVER, HANGER L2 (D)
22 ASSY., LED BOARD
6 COVER, CONTROL BOX
10 BLOWER HOUSING
13 COVER, HANGER L1 (C)
12 ASSY., BOTTOM PANEL
23 AIR INTAKE GRILLE
