Si30-408 Recording and Playback of Operation Data
Service Checker Type3 Application Edition 137
3. Recording and Playback of Operation Data

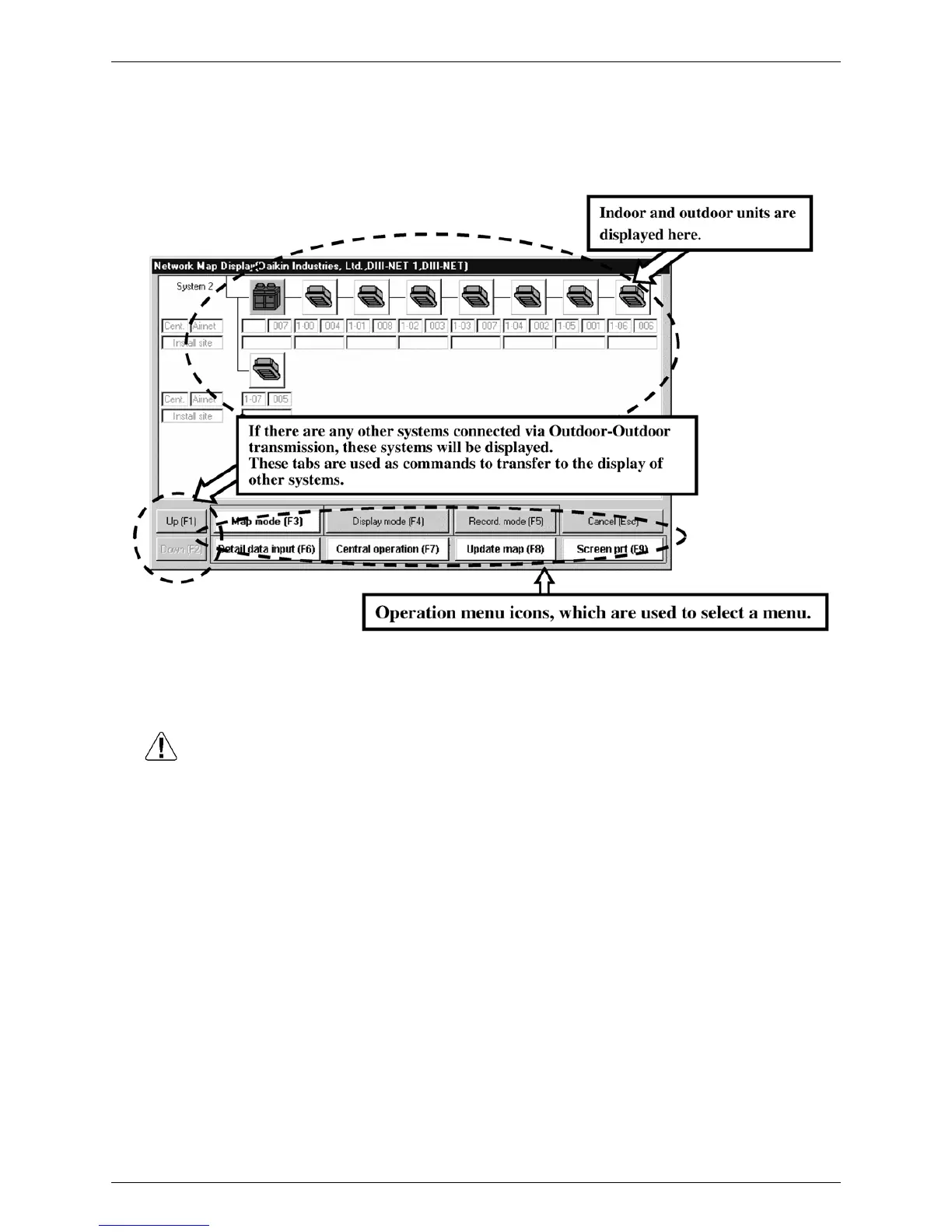

3.1 Menu Window (Map Mode)
If the units are properly read, the above window will appear.
If the above window appears, select an operation to be conducted on the menu icons.
Caution
The number of outdoor units varies with the number of sensors.
Color of unit
Red - Malfunction
Purple - Malfunction of transmission
Green - Operating conditions (Thermostat ON on outdoor unit)
Gray - Operation stop (Thermostat OFF on outdoor unit)
To Next Page
