Daikin RXF50A2V1B - 4.2 Mounting the outdoor unit; 4.2.1 To provide the installation structure

4 Installation
Installation manual
8
RXF50+60A2V1B
R32 split series
3P512025-3 – 2017.11
20 mm
330
580
240
(mm)
240
>300

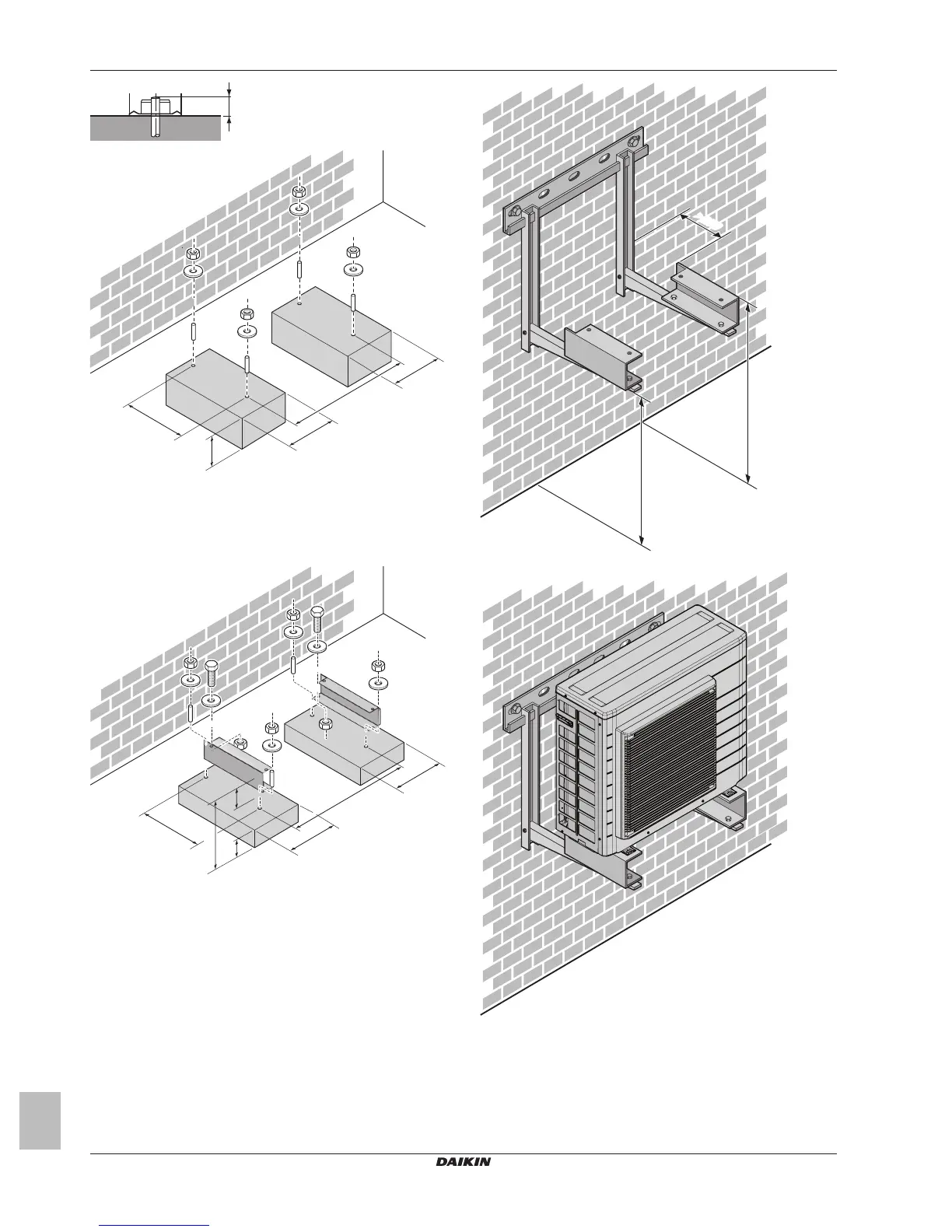

In any case, provide at least 300mm of free space below the unit.
Additionally, make sure the unit is positioned at least 100mm above
the maximum expected level of snow. In this case, it is
recommended to construct a pedestal.
330
580
240
240
(mm)
>300
100
a
a Maximum snowfall height
If the unit is installed on brackets to the wall, install the unit as
follows:
>250
>300
>100
(mm)
a
a Maximum snowfall height
