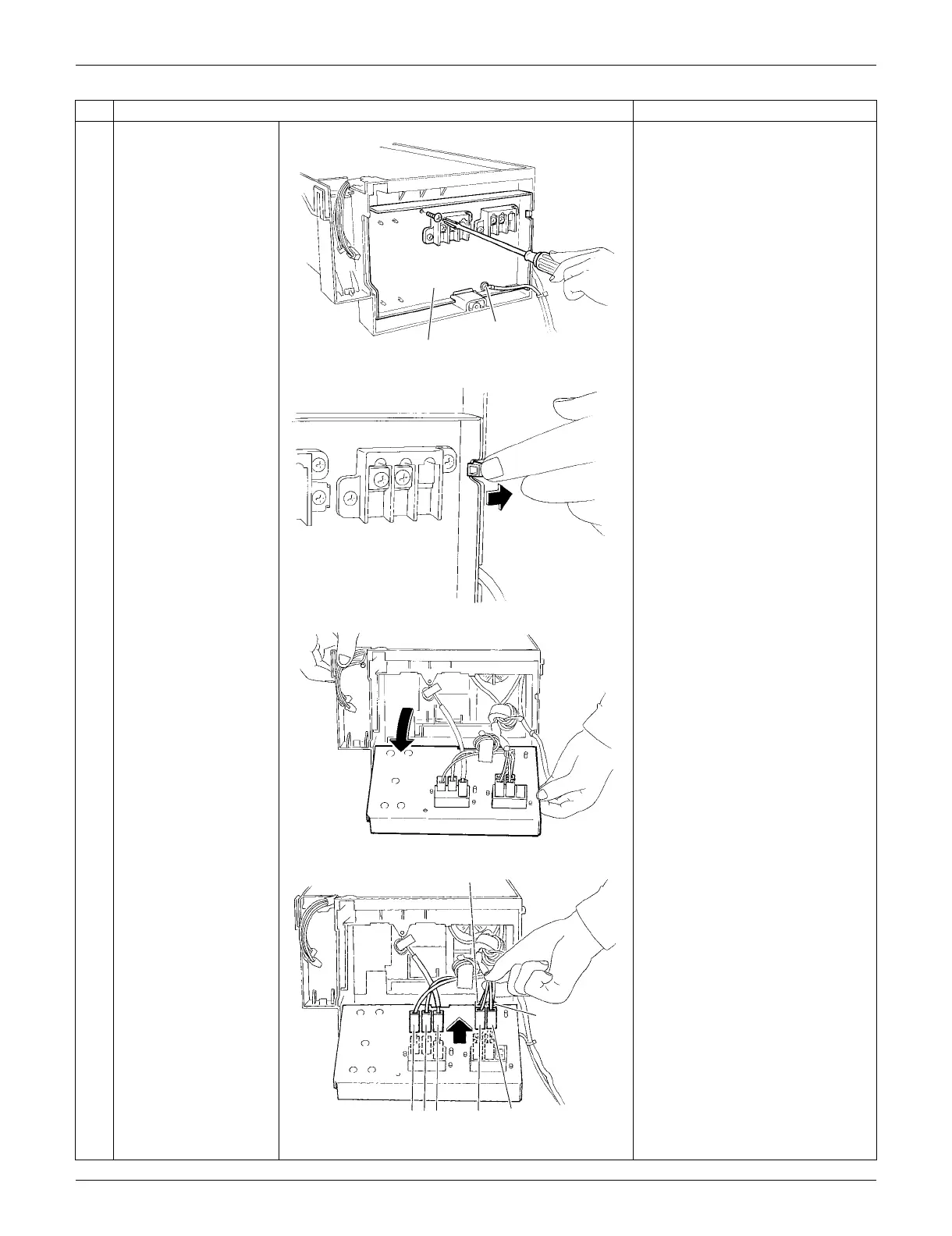

SiUS091133
Outdoor Unit: RK
S30/36LVJU, RXS30/36LVJU
Removal Procedure
372
4
Remove the screws of
the terminal board and
the ground wire.
5
Unfasten the hook on
the right.
6
Open the terminal
board.
7
Disconnect the
harnesses.
1: Black
2: White
3: Red
L1: Black
L2: Brown
N1: White
N2: Blue
Step
Procedure
Points
T
er
minal board
(R16709)
Ground wire
(R5283)
(R5284)
L2
N2
1
2
3
L1
N1
(R5285)
381
383
