6.3.2 Precautions when mounting the outdoor unit
INFORMATION
Also read the precautions and requirements in the following chapters:
▪ "2General safety precautions"[47]
▪ "6.1Preparing the installation site"[424]
6.3.3 To provide the installation structure
Check the strength and level of the installation ground so that the unit will not
cause any operating vibration or noise.
Use a vibration-proof rubber (field supply) in cases where vibrations may be
transmitted to the building.

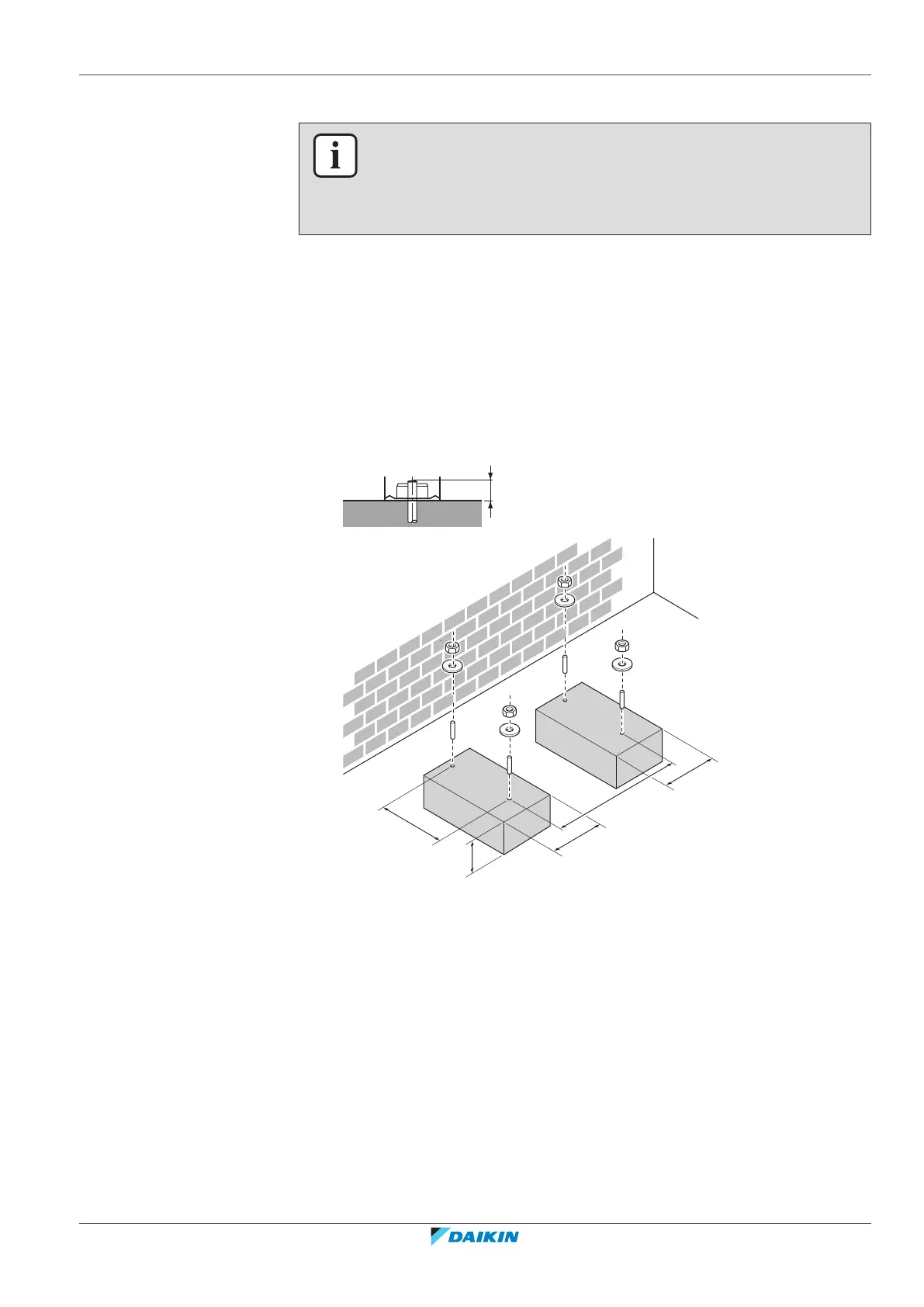

Fix the unit securely by means of foundation bolts in accordance with the
foundation drawing.
Prepare 4 sets of M8 or M10 anchor bolts, nuts and washers (field supply).
20 mm
330
524
211
(mm)
211
a
a 100mm above expected level of snow

Daikin RXTP25R2V1B Specifications

General

Category	Air Conditioner
Model	RXTP25R2V1B
Type	Split System
Cooling Capacity	2.5 kW
Heating Capacity	3.2 kW
Refrigerant	R32
Indoor Unit Noise Level	19 dB(A)
Outdoor Unit Noise Level	46 dB(A)
Power Supply	220-240 V, 50 Hz
Indoor Unit Weight	9 kg
Outdoor Unit Weight	30 kg
Coefficient of Performance (Heating)	4.00
