3 | Specific installer safety instructions
Installer and user reference guide
22
RXYSA4~6A7V/Y1B
VRV 5-S system air conditioner
4P600330-1 – 2020.01

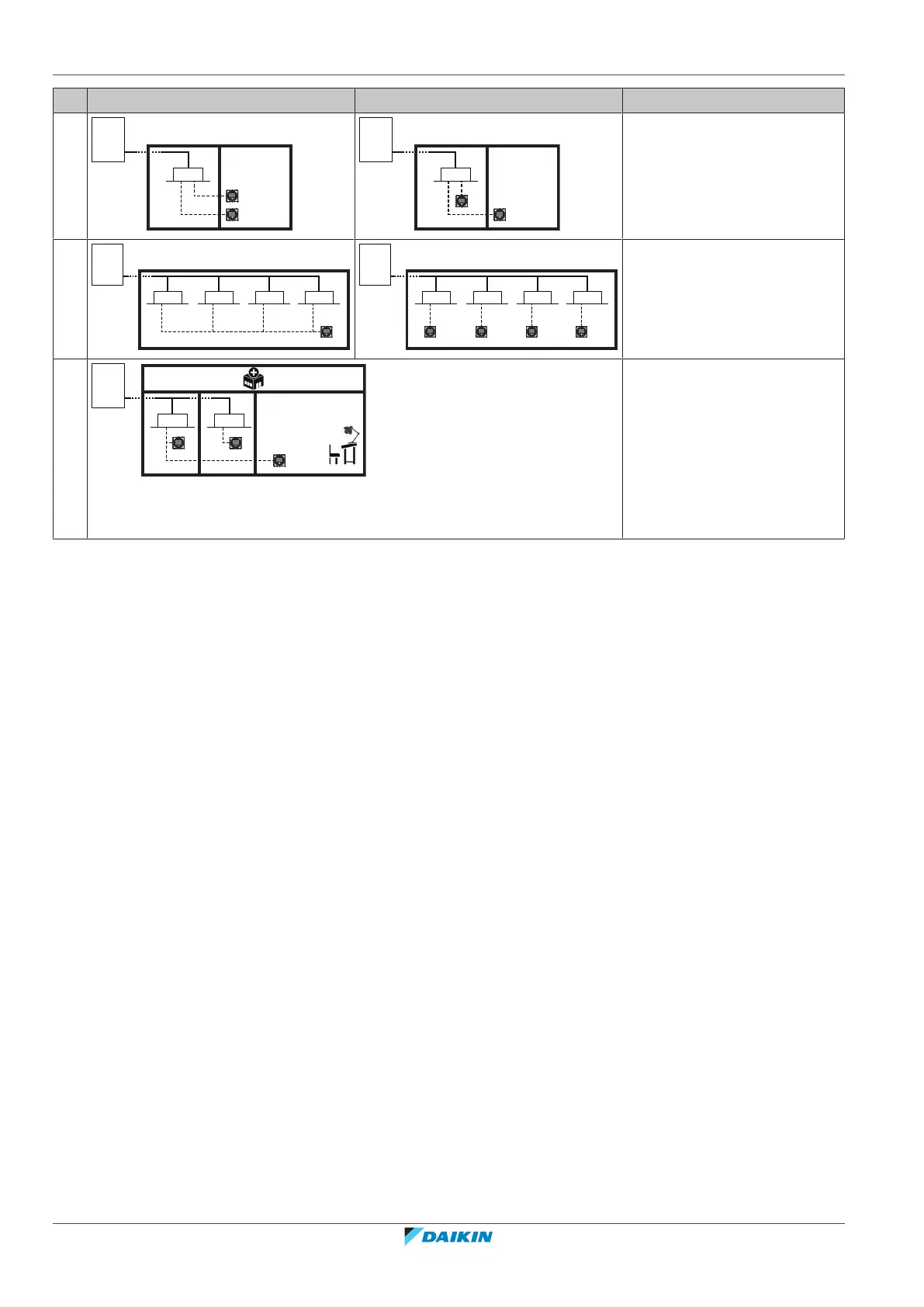

NOT OK OK Case
4
a
d
d
b
a
d
d
b
In case of two R32 safety
system compatible remote
controllers, at least one
remote controller should be in
the room of the indoor.
5
a
b b b b
d
a
b b b b
dd d d
Group control system is not
allowed.
Each indoor unit should be
connected to a separate
remote controller
6
a
b
d
b
d
e
f
In room: master remote controller in fully functional OR alarm only.
In supervisor room: supervisor remote controller
In particular situations it is
mandatory to install a remote
controller at a supervised
location
a Outdoor unit d Remote controller compatible with R32 safety system
b Indoor unit e Remote controller in supervisor mode
c Remote controller NOT compatible with R32 safety system f Supervisor room
