SiBE121021_C Outdoor Unit - 50~75 Class
Removal Procedure 399

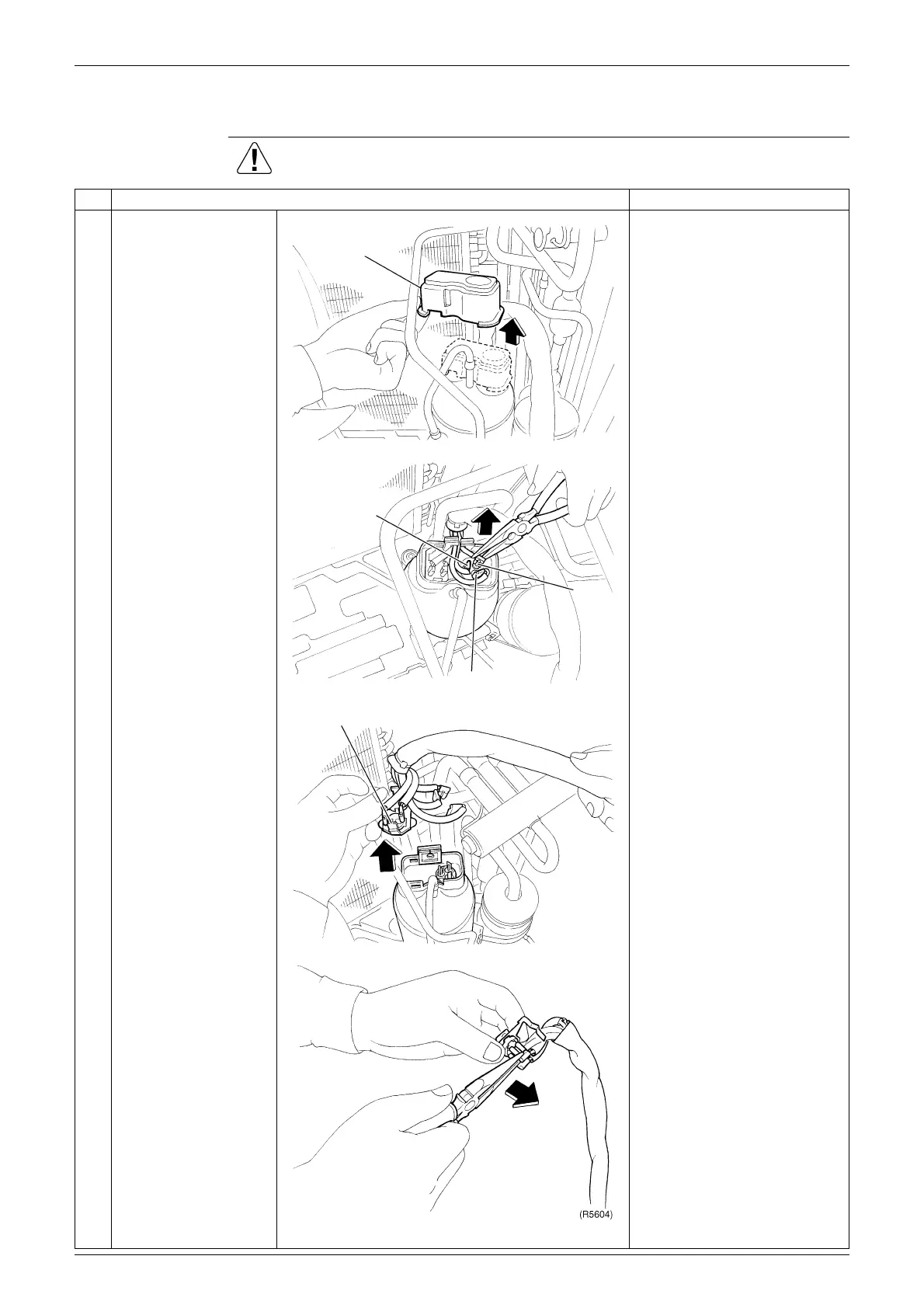

1.9 Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the terminal
cover.
2
Disconnect the
compressor lead wires.
3
Detach the overload
protector.
(R12914)
Terminal cover
V(yellow)
U(red)
W(blue)
(R5602)
(R12916)
Overload protector

Daikin Super Multi NX 3MXS68G2V1B Specifications

General

Cooling Capacity (kW)	6.8
Number of Connectable Indoor Units	3
Power Supply	220-240V, 50Hz
Outdoor Unit Dimensions (HxWxD)	845 x 950 x 340
Outdoor Unit Weight	82
