Daikin Super Multi NX FFQ60B8V1B User Manual

Outdoor Unit - 50~75 Class SiBE121021_C

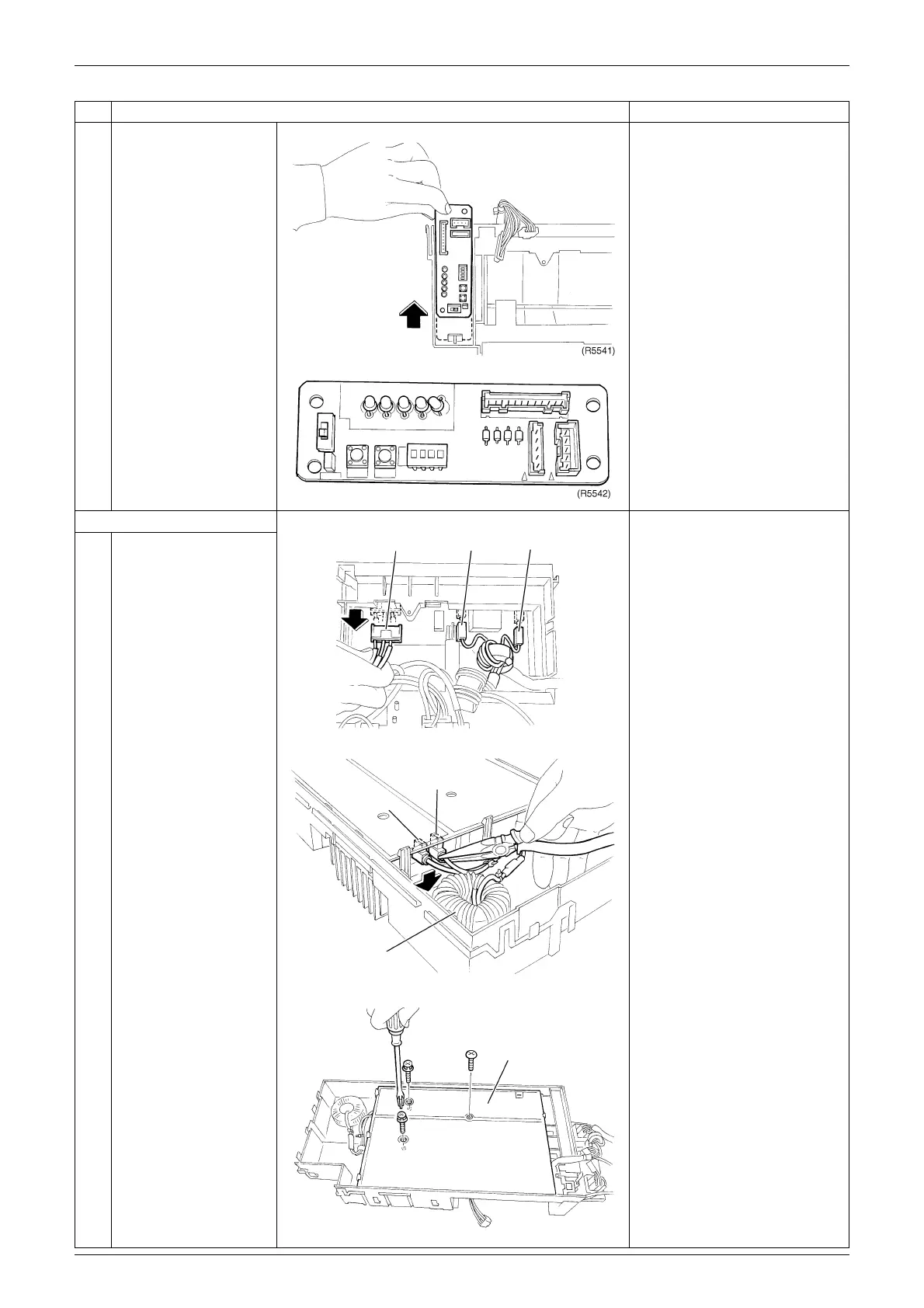

384 Removal Procedure
4
Widen the upper hook
and pull the service
monitor PCB upward to
remove.

Refer to page 82 for detail.
2. Remove the main PCB.
[AC1] [AC2] : for power supply
[S10] : for transmission
1
Disconnect the
connectors for the
terminal board on the
right side.
2
Disconnect the 2
connectors for reactor.
3
Remove the 3 screws
of the main PCB.
Step
Procedure Points
[AC1]
brown
[AC2]
blue
[S10]
(R5543)
(R5544)
[HR2]
[HR1]
Reactor
Main PCB
(R5545)
