SiBE121021_C Outdoor Unit - 50~75 Class
Removal Procedure 385
4

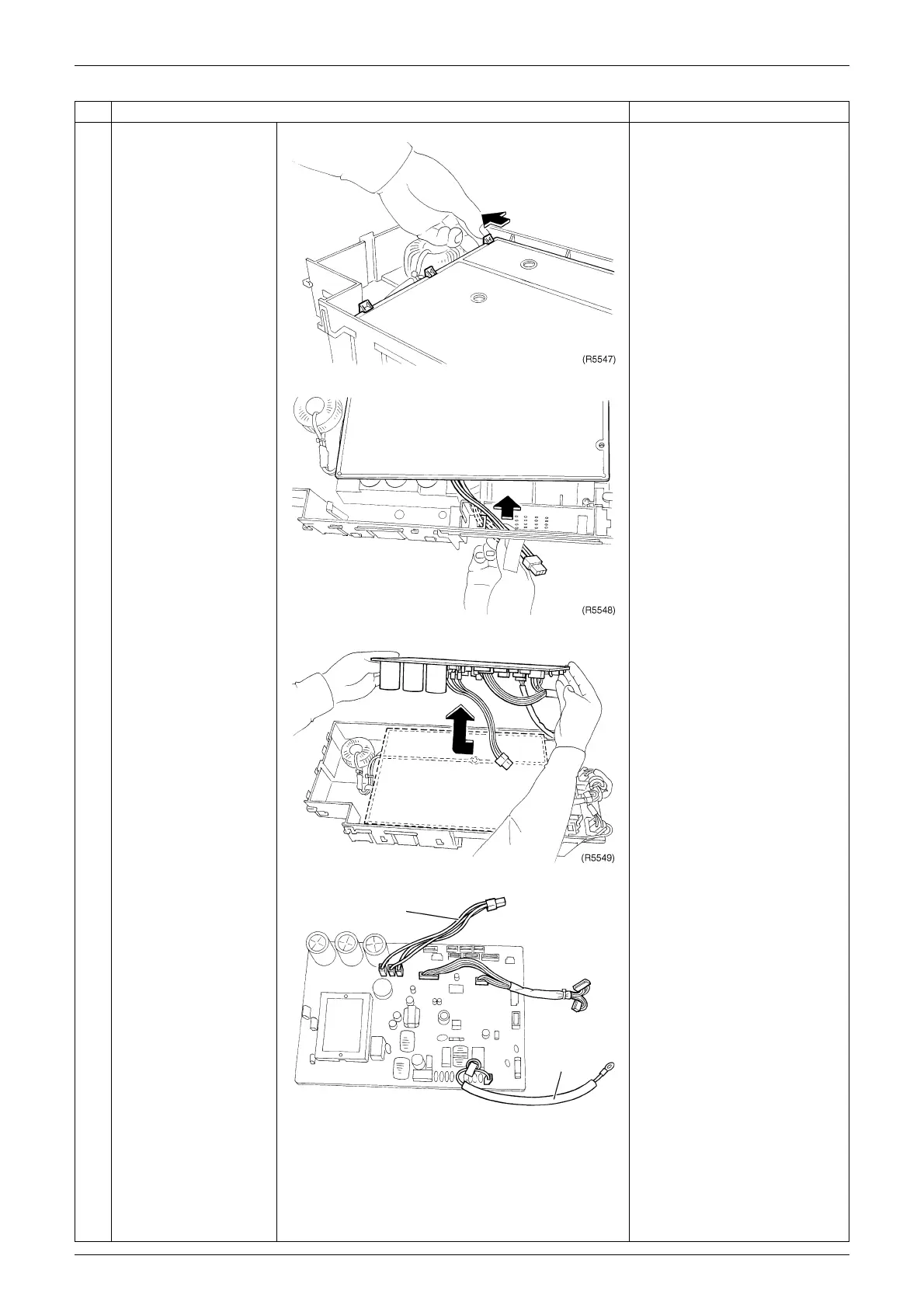

Unfasten the 3 hooks
on the reactor side and
slide the main PCB to
the left.
5
Release the relay
harness for the
compressor from the
hook.
6
Lift up the main PCB
and remove it.
îš„
In working, be careful not to
break the main PCB with the
excessive force because the
main PCB and the radiation
fin are adhered to one
another.
Step
Procedure Points
(R5550)
Relay harness for compressor
Earth wire
