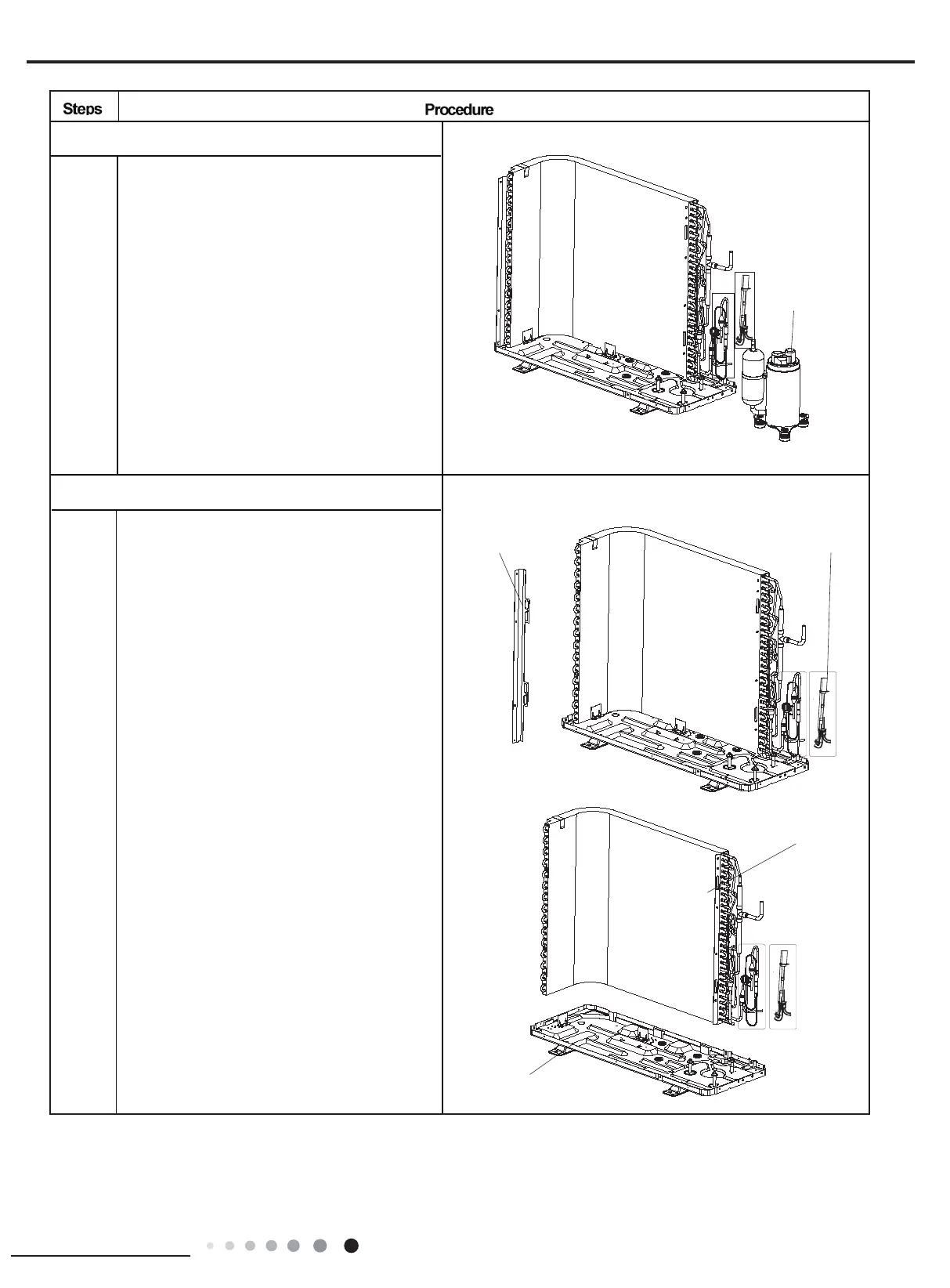

Remove the 3 foot nuts fixing the compressor
and then remove the compressor.
Remove the screws connecting the support
(condenser) and condenser assy,and then
remove the support(condenser).
9. Remove compressor
compressor
10.Remove condenser sub-assy
a
support
Electron expansion valve
b
Remove the chassis sub-assy and condenser
sub-assy.
condenser sub-assy
chassis sub-assy
