2.7 Indoor Radio Server Board

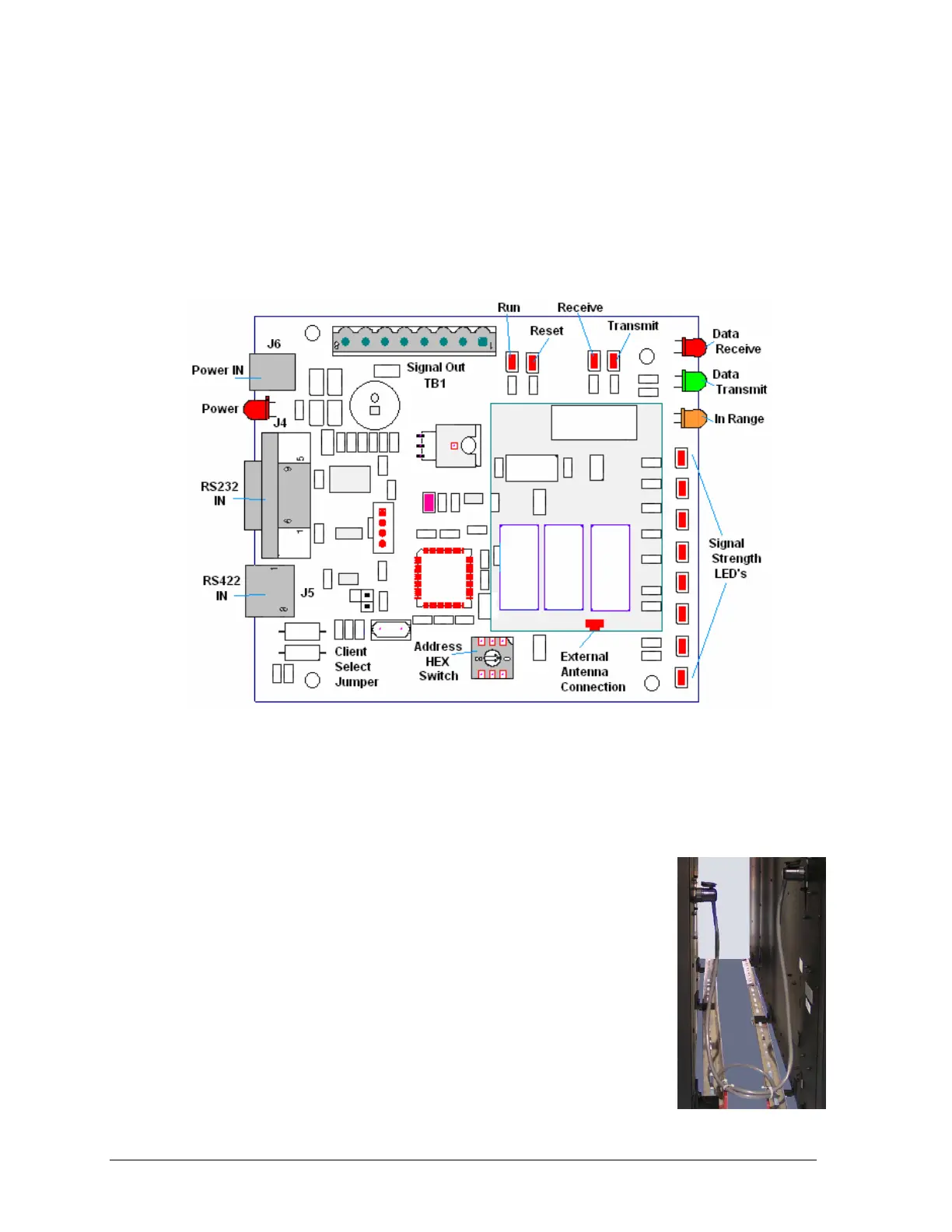

Figure 20 is an example of the internal radio control board found in the indoor server. It has
several additional parts not found on the outdoor server or client radios, therefore the boards
are not interchangeable.
Figure 20: Indoor Server Radio Board
2.8 Signal Termination between Two Displays
Primary - Mirror
Figure 21: Quick-connect
between Displays
Most displays are shipped as either a single primary display or two
displays in a two-face primary–mirror configuration.
The primary-mirror (2V) quick-connect cable is used to terminate signal
between these two displays. The six-foot cable goes from the Signal
OUT (J34) on the primary display to Signal IN (J32) on the mirror
display as shown in Figure 21.
Installation Guidelines
