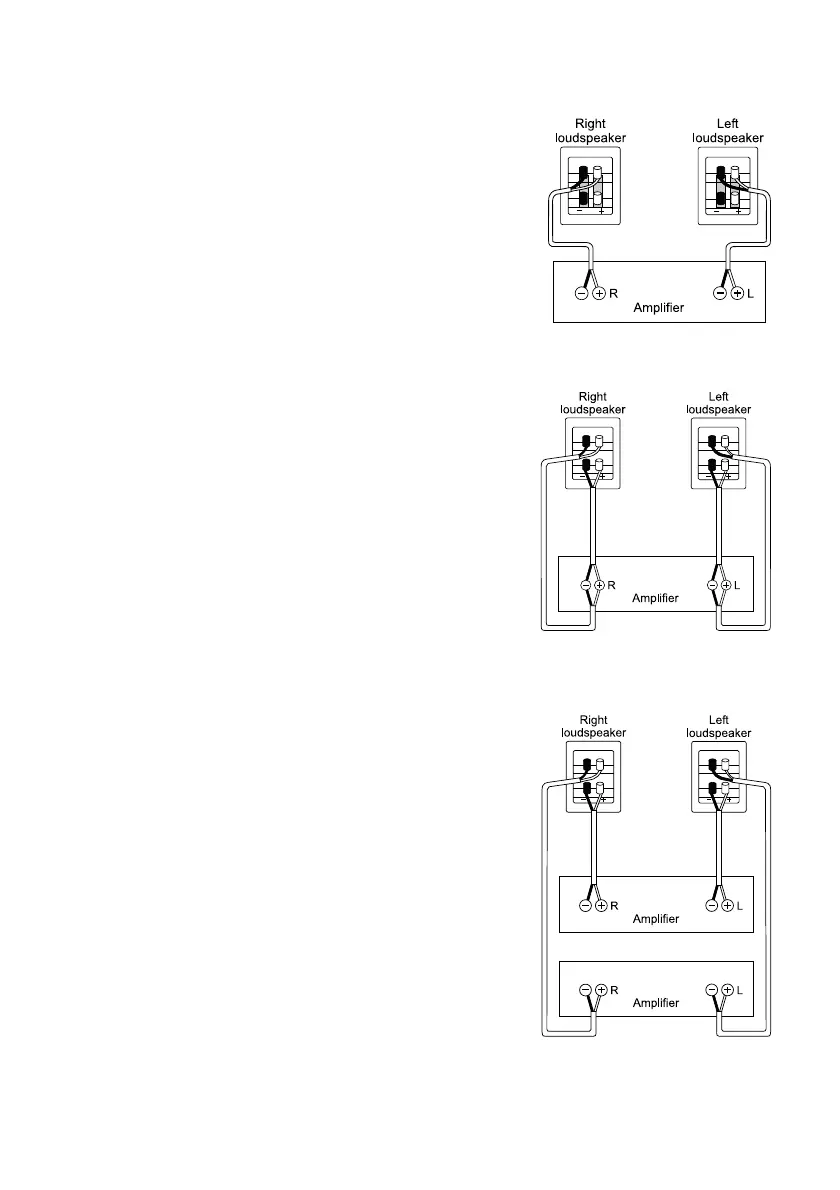

Single-wiring
By single-wiring one cable is connected from
the amplifiers loudspeaker output to each
single loudspeaker.
On those loudspeaker models having two ter-
minal pairs, the straps delivered with the
loudspeakers must be installed between the
upper and lower terminal pair: one between the
two red terminals and one between the two
black terminals of the loudspeaker (fig. 2).
With the straps installed, it is recommended that
you connect the cables from the amplifier to the
upper terminal pair.
Bi-wiring and bi-amping
DALI recommends that you use bi-wiring or bi-
amping on the loudspeaker models having two
terminal pairs. Bi-wiring provides a more clean
and undistorted sound. Bi-amping offers an
even better improvement on these accounts as
well as extended dynamics.
Before using bi-wiring or bi-amping, the metal
straps must be removed. The lower terminal pair
is connected to the bass section and the upper
terminal pair is connected to the tweeter/
midrange section.
Bi-wiring
For bi-wiring (fig. 3) one cable is connected to
the lower terminal pair and another cable to the
upper teminal pair of the loudspeaker. These
two cables are connected to the same output
terminal on the amplifier.
Bi-amping
For bi-amping (fig. 4) two identical stereo power
amplifiers should be used. The output terminals
of one of the amplifiers are connected to the
lower terminal pair of the two loudspeakers and
the output terminals of the other amplifier are
connected to the upper terminal pair of the same
two loudspeakers.
