11 FRONT SUSPENSION ROLL CENTRE SETTING

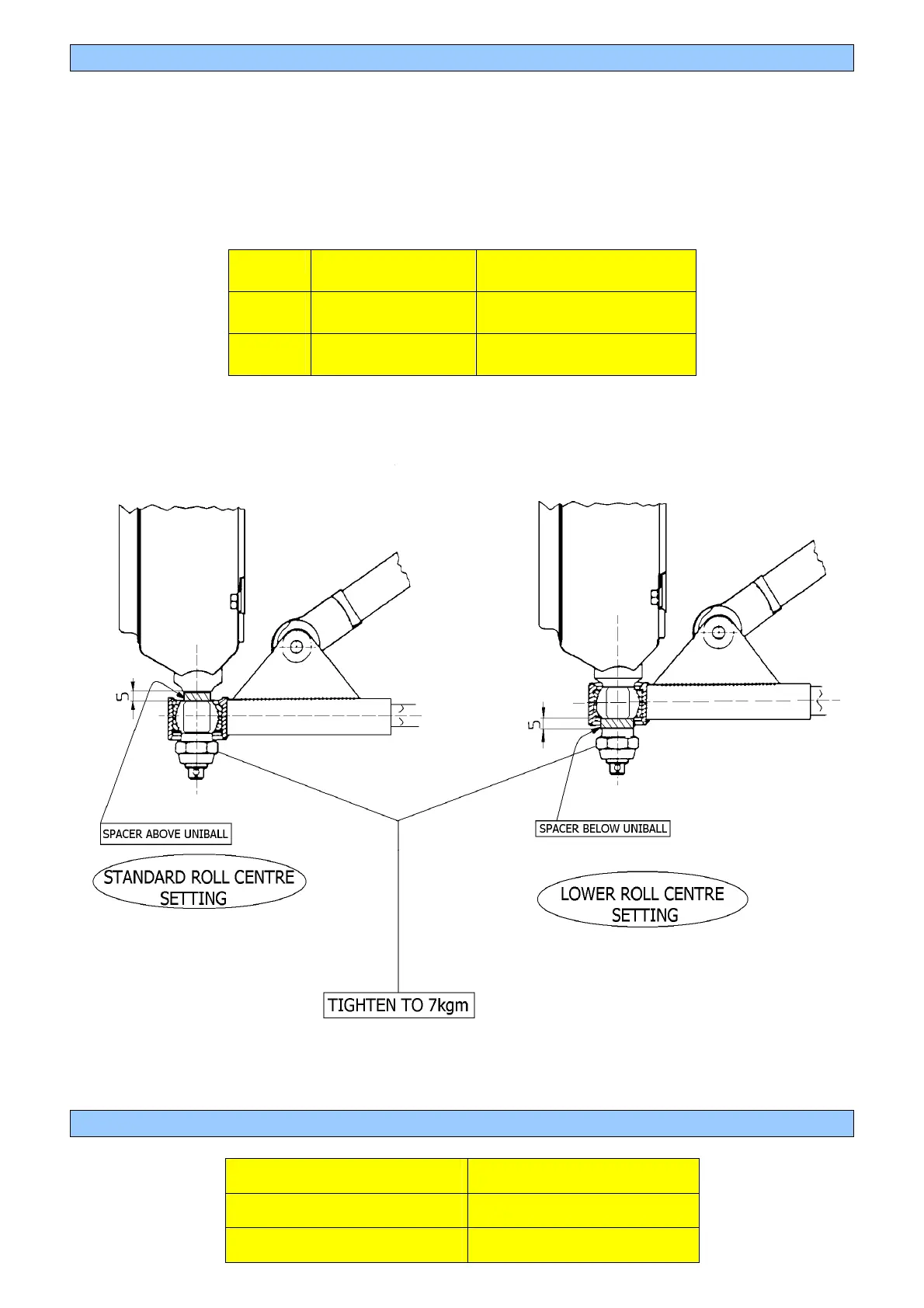

Front roll centre height can be changed by moving the spacer to its upper or lower position on the
wishbone spherical joint. When choosing "low roll centre" configuration, push-rod length has to be
shortened by 1.2 register turns ( 7 faces of the adjuster) to keep the car at the same ride height..
When adjusting the roll centre height camber gain versus wheel travel varies a little.
OPTION Roll centre height
@ static ride height
Camber change
with 10mm wheel travel
Std X 5’
Low -10 mm 3’
STEERING ASSEMBLY
Pinion primitive diameter 15.60 mm
Static steering ratio 13.1 steering wheel/wheel
Ackermann [%] 29
