29 BRAKE SYSTEM

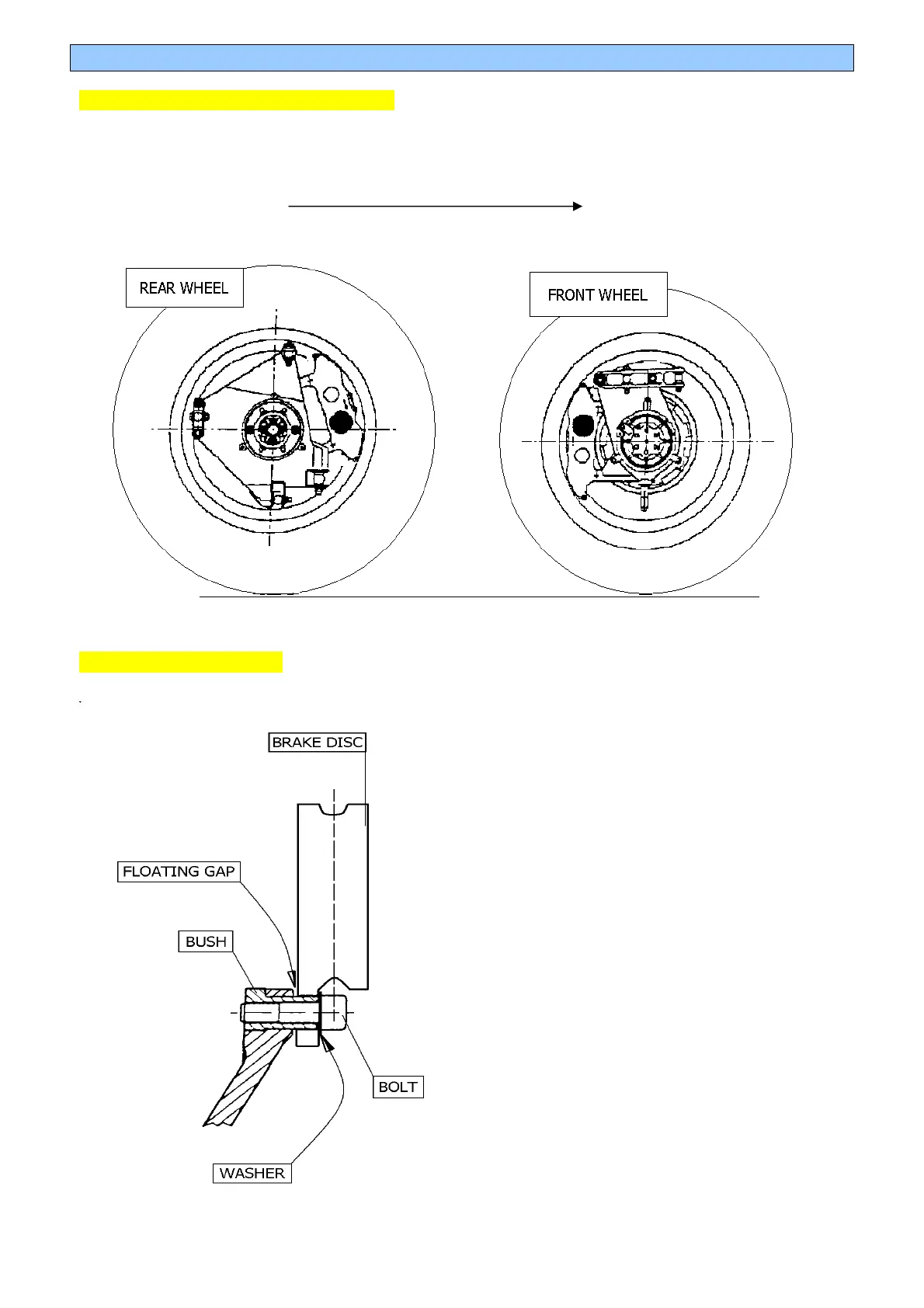

BREMBO BRAKE CALIPER ASSEMBLY
Note: the dark piston is the bigger in diameter from both. The car features four different
callipers.
TRAVEL DIRECTION
BRAKE DISC ASSEMBLY
