dallara F305 - Suspension; Tightening Torques

SUSPENSION 34

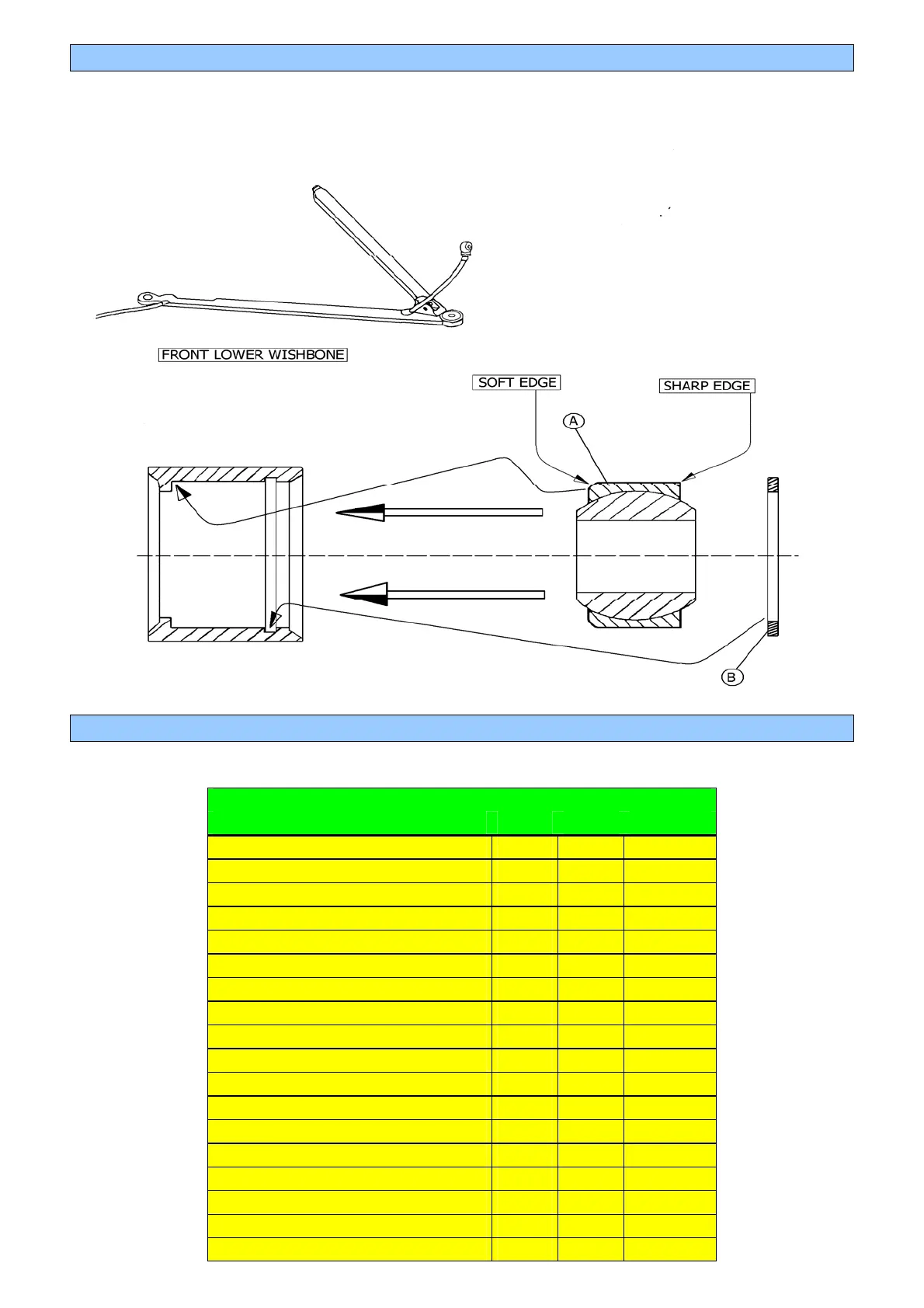

• ball joint A, used in the front lower and rear lower wishbones, must be fitted with sharp-edge side
in
contact with circlip B, as shown in following drawing
TIGHTENING TORQUES
This table lists suggested tightening torques. For additional security use LOCTITE 242 or 243.
Tightening torques
Nm Kgm lbs ft
Pinion bearing nut 176 17.9 130
pinion-shaft nut 135 13.8 100
Final drive bolts 73 7.5 55
Brake disc bolt 7 0.7 5
Brake caliper studs 50 5.1 37
Wheel nut 165 17.0 125
Wheel stud 245 25.0 180
Damper end-stroke spacer 65 6.6 49
Wheel driver columns 50 5.1 37
Nut 7 × 1 (see hub assembly) 17 1.7 13
Bolt 8.8 (see hub assembly) 25 2.5 19
Bolt 12K (see hub assembly) 39 4.0 29
Rocker cap nut 34 3.5 25
Rocker stud nut 54 5.5 40
10-32 UNF ‘K’ nut 3 0.3 2
1
/
4
UNF ‘K’ nut 12 1.2 9
5
/
16
UNF ‘K’ nut 24 2.4 18
3
/
8
UNF ‘K’ nut 50 5.1 37
