STEP 2
Single Hose Installation
(portable applications)
Your washing machine is equipped with easy to
install accessories allowing the washing machine to
be connected to a single source water supply line;
Accessories Included:

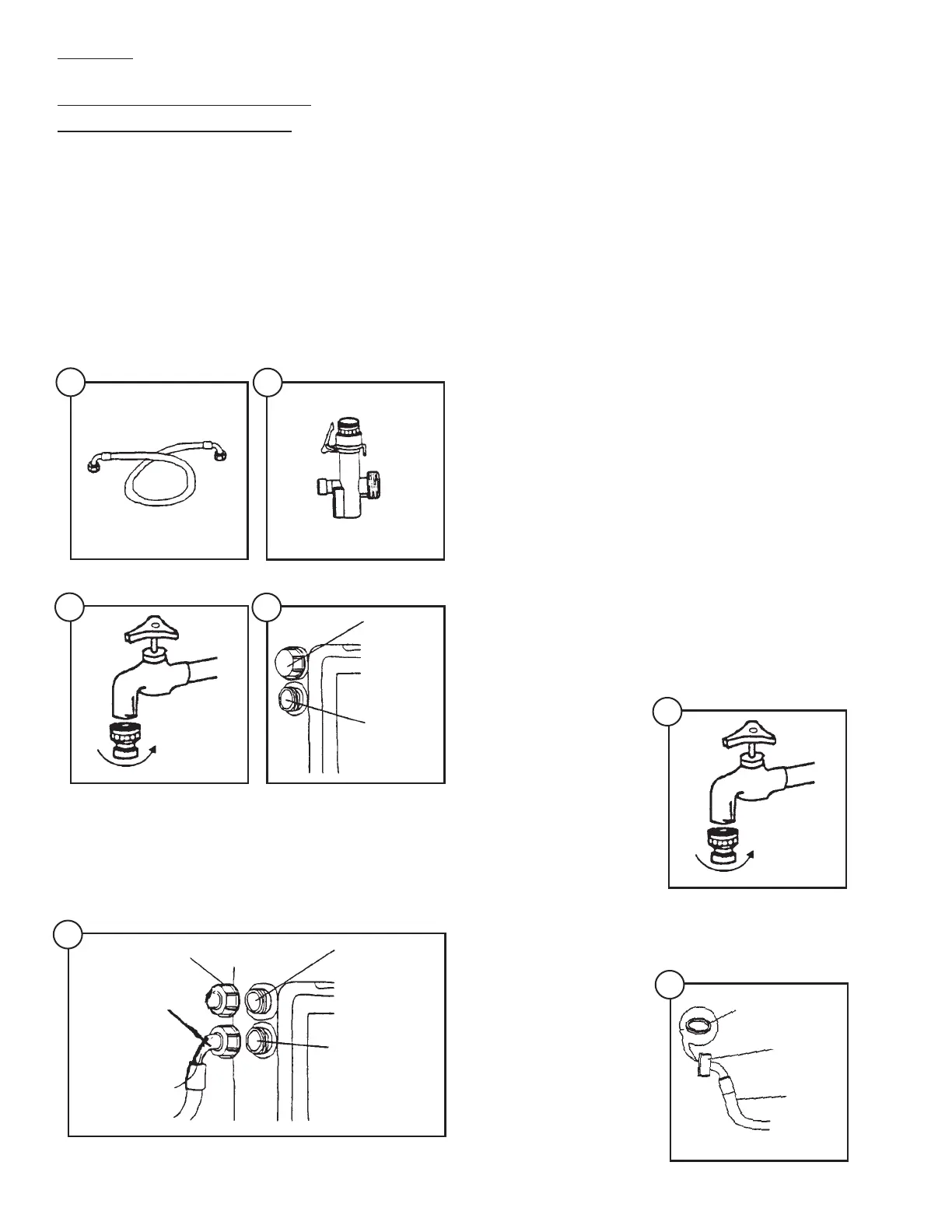

2 only Inlet Hose Fig. A
1 only Water Inlet Hose "Quick Connect". Fig. B
1 only Faucet Adapter. Fig. C
1 only Water Inlet Valve Cap/Plug. Fig. D
Important Notice: For portable installations (using
a single inlet hose only) it will be necessary to
"cap/plug" one side of the hot/cold water valve not
being used. Fig. D
Failure to install the "cap/plug" on the open side
of the water valve will result in leakage from the
valve during any/all water fill cycles.
Special Note: Depending on which side of the
(Hot/Cold) valve the cap/plug is installed, certain
"WASH/TEMP" fill programs will not be operational.
i.e.
• If you cap/plug the HOT WATER (upper) valve, it
will not be possible to select the "COLD/COLD"
WASH/TEMP water fill program. You can only
select either the WARM/COLD or HOT/COLD
WASH/TEMP water fill programs. (under the
COLD/COLD setting no water will enter the wash
tub)
• If you cap/plug the COLD WATER (lower) valve, it
will not be possible to select the "HOT/COLD"
WASH TEMP water fill program. You can only
select either the WARM/COLD or COLD/COLD
WASH/TEMP water fill program. (under the
HOT/COLD setting no water will enter the wash
tub)
Connecting the Water Inlet Hose:
• Screw the faucet adapter onto the faucet. Fig. C
(check for leaks, use Teflon tape to eliminate if
necessary)
• Install rubber washer into each end of the fill
hose. Fig. E
Inlet Hose
Connector
2PCS
1PC
Hot Water
Connector
Cold Water
Connector
A
B
C
D
Hot Water
Connector
Cold Water
Connector
D
Water
Inlet Hose
Cap/Plug
Rubber Ring
Water
Inlet Hose
E
C
Connecting
Nut
