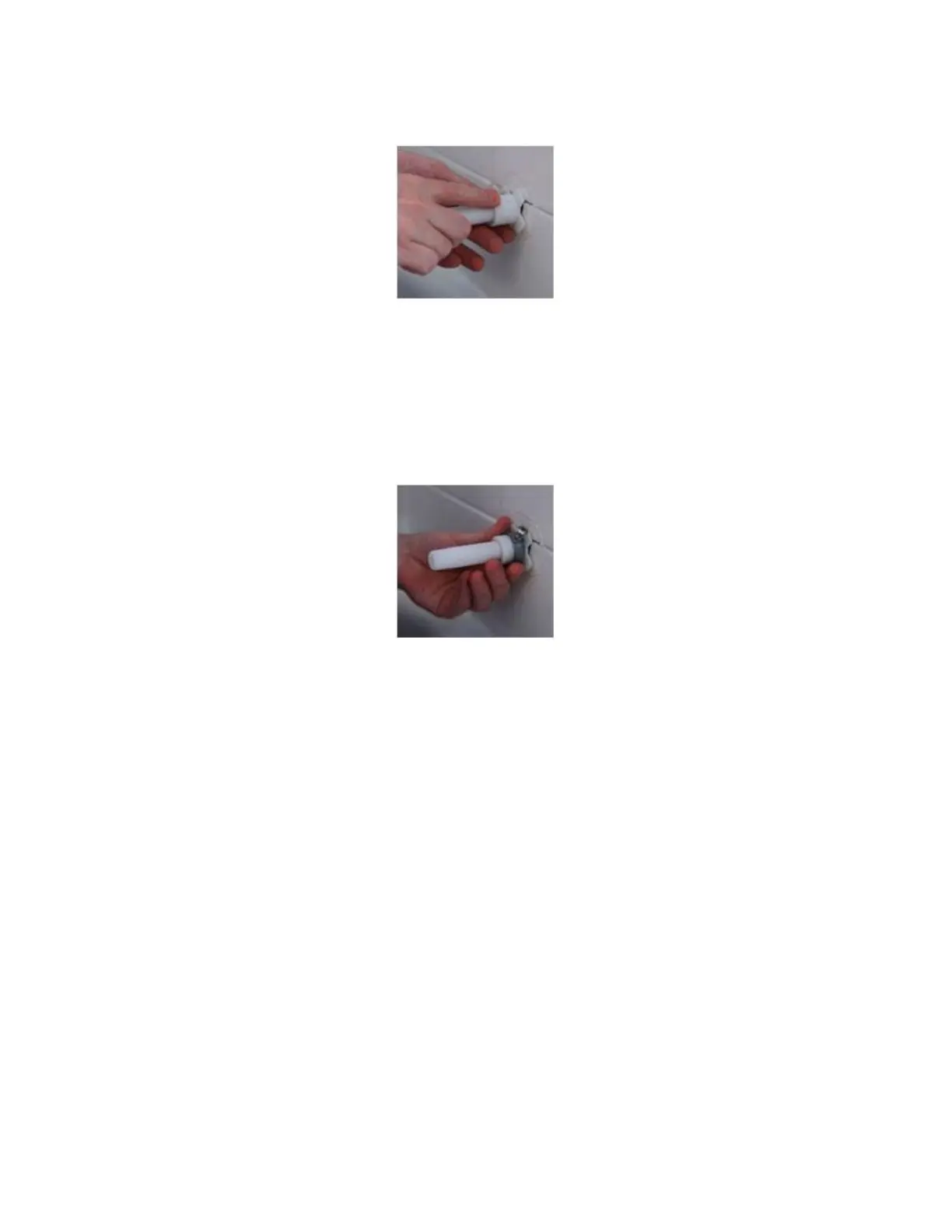

6
Slide the Extension Nipple onto the Stub Out Nipple and thread onto the Adapter aligning hole in
the Extension Nipple with the slot in the Adapter. Turning clockwise, tighten the Extension Nipple
onto the Adapter until the slot in the Adapter aligns with the hole in the Extension Nipple.
7
Thread the Screw into the Retainer Ring. Slide the Retainer Ring Assembly onto the Extension
Nipple. Align the Screw with recessed hole on the Extension Nipple. Tighten the Screw, forcing
it to break through the Extension Nipple. Using a Phillips Screwdriver, tighten the Screw until it
touches the Stub Out Nipple. Then tighten 1/2 to 1 full turn to secure the Extension Nipple to the
Stub Out Nipple. Do not over tighten.
