Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
48
Locomotive/Vehicle function decoder from firmware version 3.12

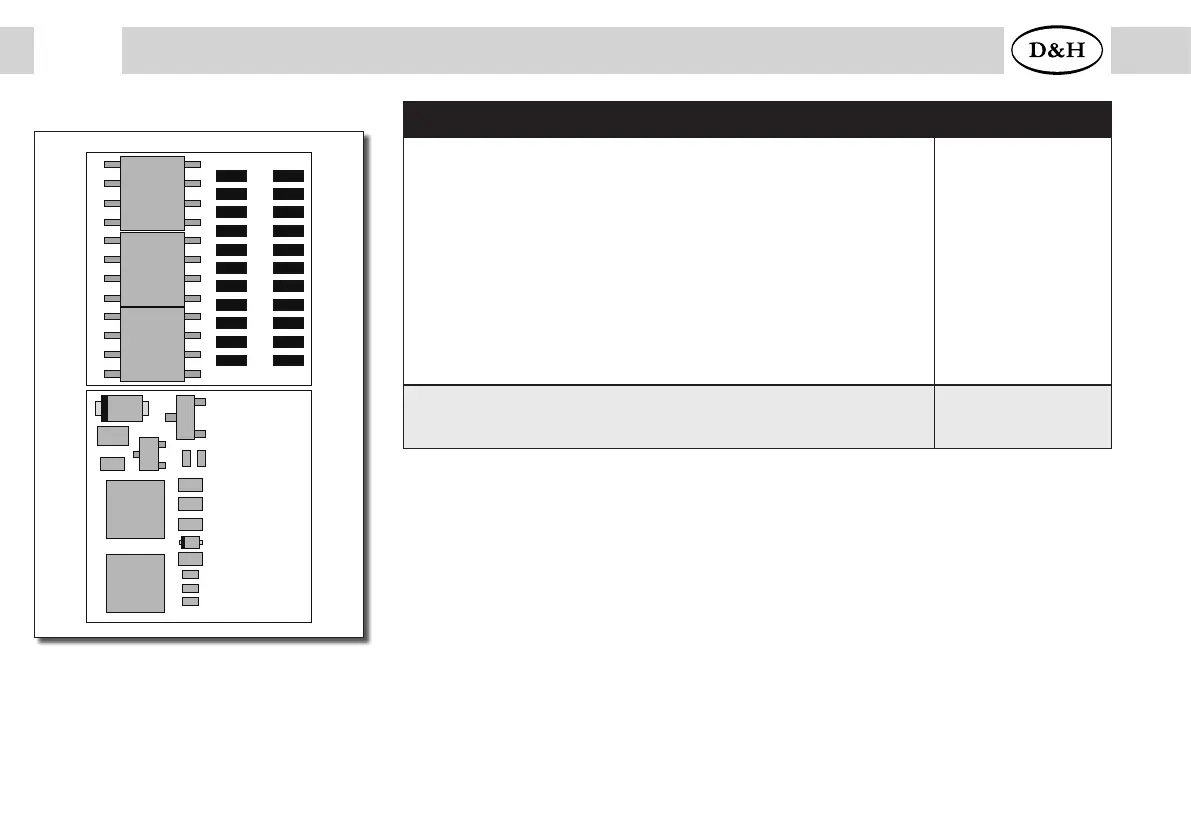

Specifications
FH22A
Dimensions [mm]
Total load
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
16,1 x 15,8 x 3,3
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
Connecting option
22 pin connector for direct plugging (PluX22)
FH22A-4
*) Unamplified function outputs: See supplement 3.
2
4
6
8
10
12
14
16
18
20
22
1
3
5
7
9
12
13
15
17
19
21
FH22A
