6. 6. HYDROSTATIC TRANSMISSION SYSTEM
WARNING!!!
DO NOT INSERT HANDS, PARTS OF THE BODY OR TOOLS IN THE FAN LOCATED
ON THE RADIATOR AS IT STARTS AUTOMATICALLY.
IMPORTANT!!!
For proper use of the machine it is recommended to bring the hydraulic oil to work
temperature by leaving the diesel motor to idle and slightly accelerated for about 5 – 10
minutes.
N.B.:IN CASE OF ANY DIFFICULTIES OR DOUBTS, IT IS ADVISABLE TO CONTACT
AN AUTHORISED ASSISTANCE POINT.

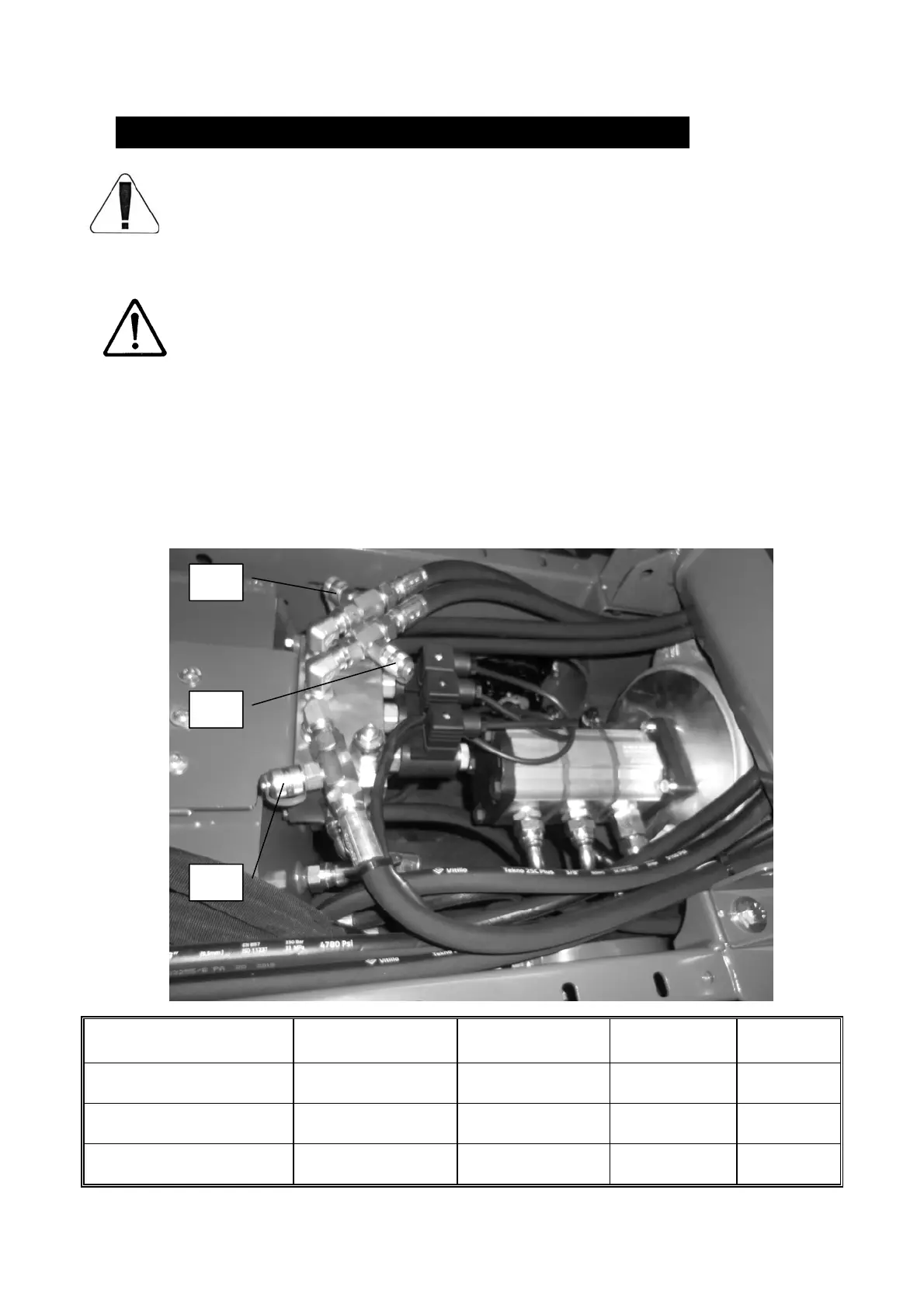

6.1. HYDRAULIC SYSTEM PRESSURE CHECKS AND CONTROLS
MEASUREMENT
POINT
PRESSURE TO
BE DETECTED
MANOMETER
FULL SCALE
TYPE OF
CONNECTION
ENGINE
RPM
P1
(Right track)
190 ± 5 bar 250 bar 1/4” G Max rpm
P2
(Left track)
190 ± 5 bar 250 bar 1/4” G Max rpm
P3
(Service hydr. system)
170 ± 5 bar 250 bar 1/4” G Max rpm
P3
P2
P1
